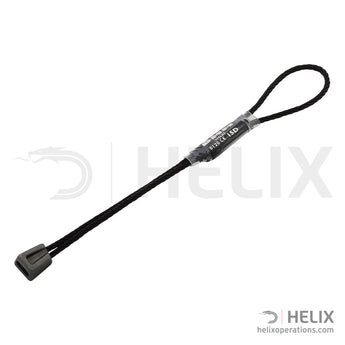

Alloy Offsets

Nuts with an offset taper that allows them to protect flared and irregular cracks.

Size: 7
Colour: Assorted
Product Downloads
Size
Colour: Assorted

In detail

Alloy Offsets protect irregular and flared cracks that regular nuts cannot. Every size of Alloy Offset has a robust 12kN strength rating. The wires they are mounted on are set into a recess to reduce wear, while larger sizes have holes that reduce weight. Use in conjunction with Wallnuts for comprehensive all season crack protection.



Product Name Product Code Colour Weight Certification Strength Range NSN Code
HB Alloy Offset 7 A1817AA Gold 27g EN 12270:2013 12kN 12.0 / 15.1mm
HB Alloy Offset 8 A1818AA Blue 30g EN 12270:2013 12kN 13.5 / 17.9mm
HB Alloy Offset 9 A1819AA Red 37g EN 12270:2013 12kN 17.1 / 21.4mm
HB Alloy Offset 10 A1820AA Grey 45g EN 12270:2013 12kN 19.4 / 25.1mm
HB Alloy Offset 11 A1821AA Turquoise 56g EN 12270:2013 12kN 23.2 / 30.0mm
HB Alloy Offset 7-11 A1817/21AA Assorted 195g EN 12270:2013 12kN 12.0 - 30.0mm
HB Alloy Offset 7 A1817MG Matt Grey 27g EN 12270:2013 12kN 12.0 / 15.1mm
HB Alloy Offset 8 A1818MG Matt Grey 30g EN 12270:2013 12kN 13.5 / 17.9mm
HB Alloy Offset 9 A1819MG Matt Grey 37g EN 12270:2013 12kN 17.1 / 21.4mm
HB Alloy Offset 10 A1820MG Matt Grey 45g EN 12270:2013 12kN 19.4 / 25.1mm
HB Alloy Offset 11 A1821MG Matt Grey 56g EN 12270:2013 12kN 23.2 / 30.0mm
HB Alloy Offset 7-11 A1817/21MG Matt Grey 195g EN 12270:2013 12kN 12.0 - 30.0mm 8465-99-877-8423
