In detail

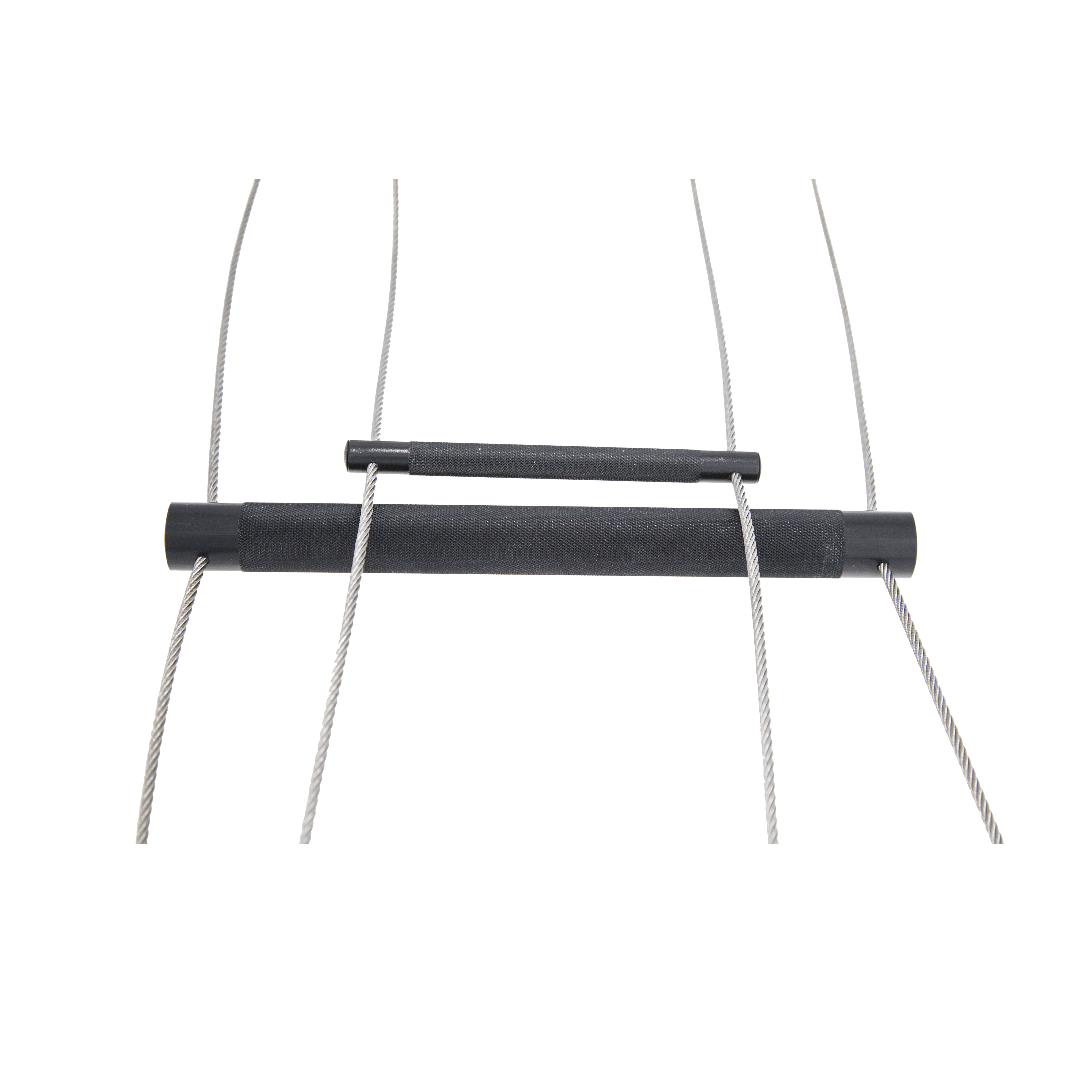

Olympia Triumph’s Wide Rung and Compact Wire Ladders are the most rugged and hardwearing flexible ladders in the range. Manufactured from stainless steel and aircraft grade aluminium, the ladders perform excellently in maritime environments.
Black anodised (diamond‐pattern) knurled rungs provide grip even in the wettest conditions. Each wire is terminated around a stainless-steel thimble, and the top wire terminations are long enough to allow both ends to be attached to a single connector. It is possible to use a wire ladder connector set to join two ladders together while maintaining the same rung spacing.
| Product Name | Product Code | Dimensions | Tread Height / Width | MBL | Weight | NSN |
|---|---|---|---|---|---|---|
| Compact Wire Ladder 5m | CWL.05 | 5m x 155mm | 300mm x 130mm | Rung 581kg, Rung side 698kg, Ladder 2013kg | 1.41kg | 2090‐99‐482‐4076 |
| Compact Wire Ladder 10m | CWL.10 | 10m x 155mm | 300mm x 130mm | Rung 581kg, Rung side 698kg, Ladder 2013kg | 2.81kg | 2090‐99‐331‐2301 |
| Compact Wire Ladder 15m | CWL.15 | 10m x 155mm | 300mm x 130mm | Rung 581kg, Rung side 698kg, 2013kg | 4.22kg | 2090‐99‐751‐8649 |
| Compact Wire Ladder 20m | CWL.20 | 20m x 155mm | 300mm x 130mm | Rung 581kg, Rung side 698kg, Ladder 2013kg | 5.62kg | 2090‐99‐555‐8917 |

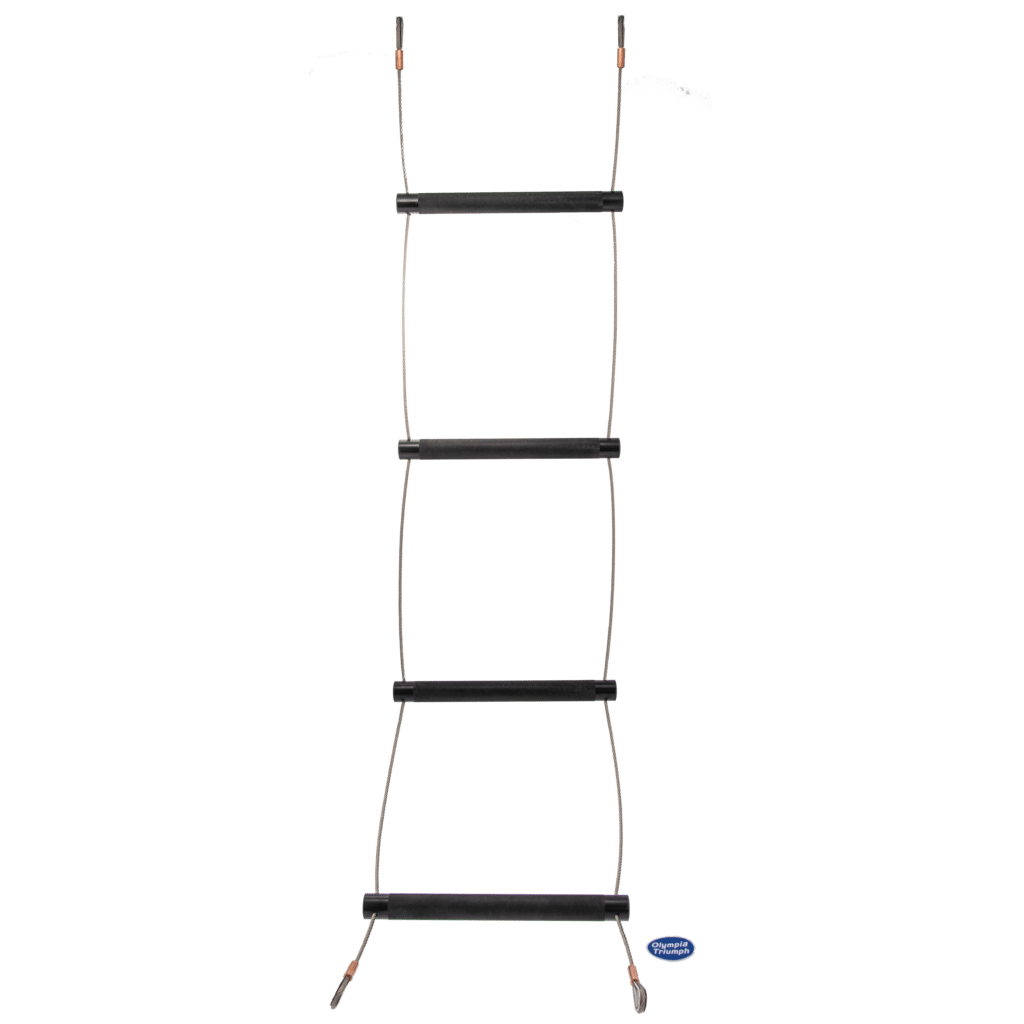

| Wide Wire Ladder 5m | WWL.05 | 5M x 270mm | 300mm x 250mm | Rung 500kg, Rung side 800kg, Ladder 2013kg | 2.70kg | 2090‐99‐115‐7458 |
| Wide Wire Ladder 10m | WWL.10 | 10m x 270mm | 300mm x 250mm | Rung 500kg, Rung side 800kg, Ladder 2013kg | 5.50kg | 2090‐99‐217‐1781 |
| Wide Wire Ladder 15m | WWL.15 | 10m x 270mm | 300mm x 250mm | Rung 500kg, Rung side 800kg, 2013kg | 8.20kg | 2090‐99‐217‐1781 |

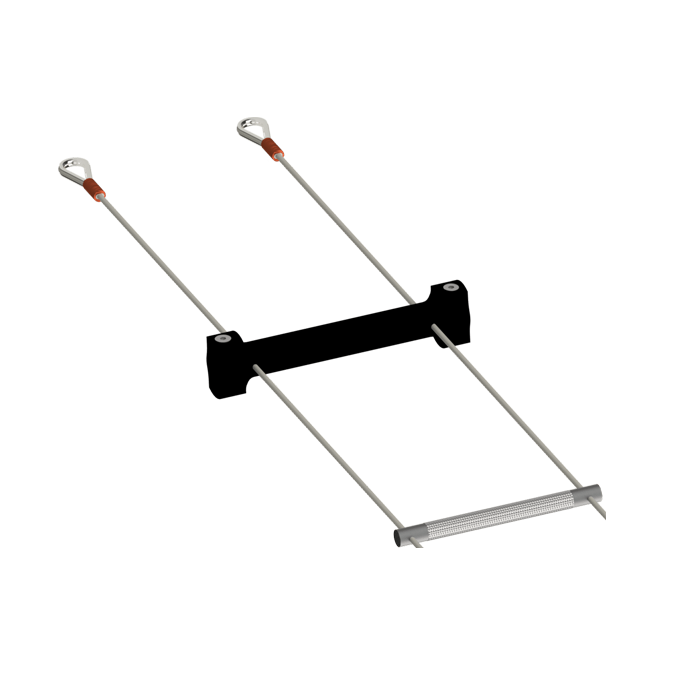

| Large Grip Rung | CWL-LGR | 190 x 45 x 25mm | - | - | 150g | - |

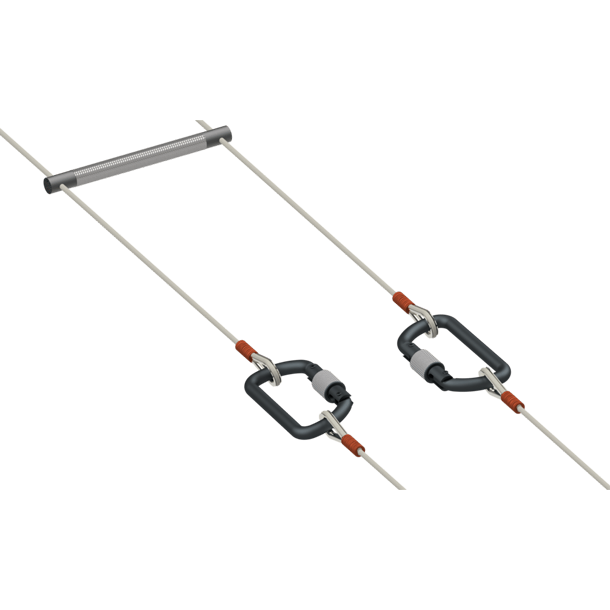

| Ladder Joining Carabiner | CWL-LJC | 111mm | - | - | 75g | - |

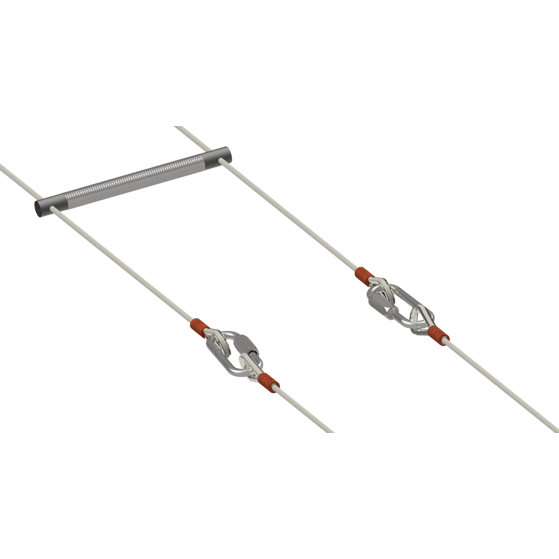

| Ladder Joining Kit | CWL-LJK | 57mm | - | - | 35g | - |
