Alpha Bent

The Alpha Sport Bent is ideal for the rope end of a sport quickdraw.

Colour: Lime
Product Downloads
Colour: Lime

In detail

The Alpha is an ergonomic carabiner shape that gives easy and intuitive handling. Grooves in the spine add extra grip when stretching to make a crucial clip. The curved gate guides ropes into the carabiner, where the Alpha’s deep rope baskets seat them securely. Areas of high wear feature more metal to withstand the demands of sport climbing. This gives the Alpha Sport Bent increased rope bearing radii, resulting in softer catches and reduced wear on ropes. The Alpha Sport Bent is ideal for the rope end of a sport quickdraw. Comes as standard with a matt grey anodised finish, but can also be supplied with a matt black anodised finisth or with more specialist Ceracote finishes in a range of tactical colours from artic white to desert coyote. The Ceracote coatings are also available with a reduced IR signature..



Product Name Product Code Colour MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Dimensions Weight Gate Opening (X) Certification

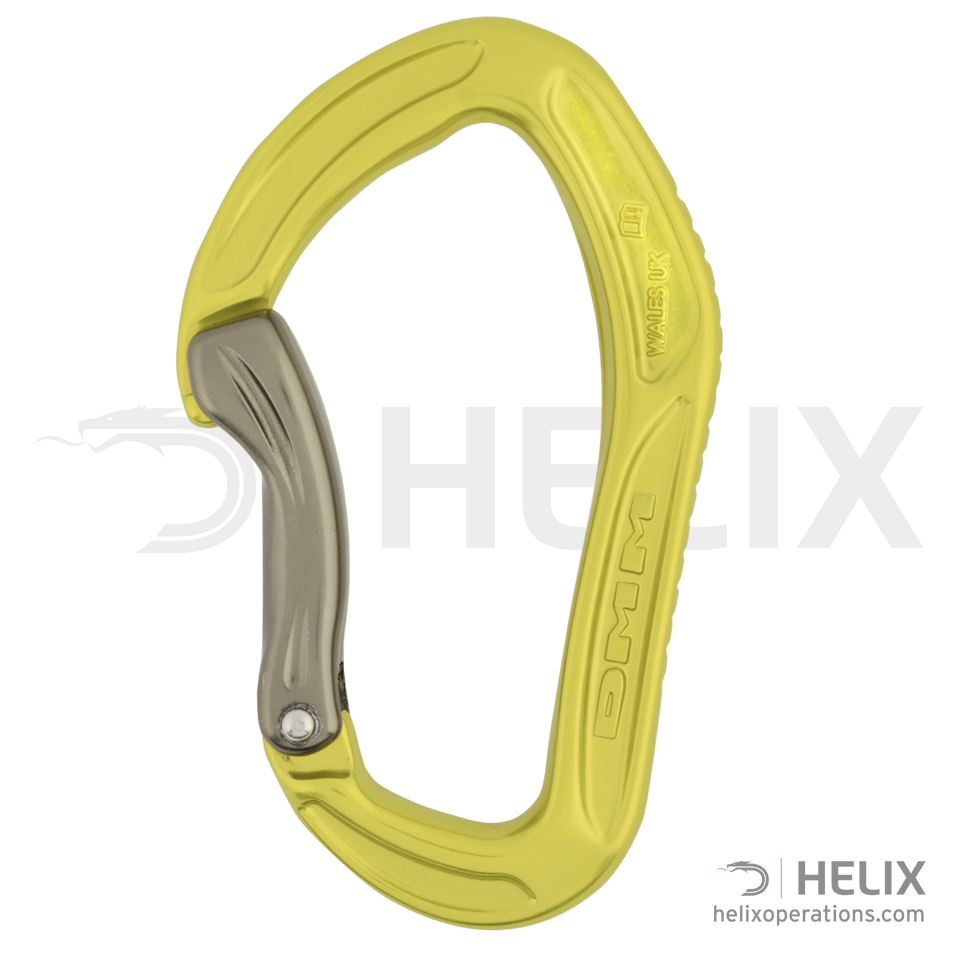

Alpha Bent Gate A526LG Lime/Titanium 24kN 8kN 9kN 61 x 102mm 47g 25mm EN12275:2013 B, UIAA121:2009

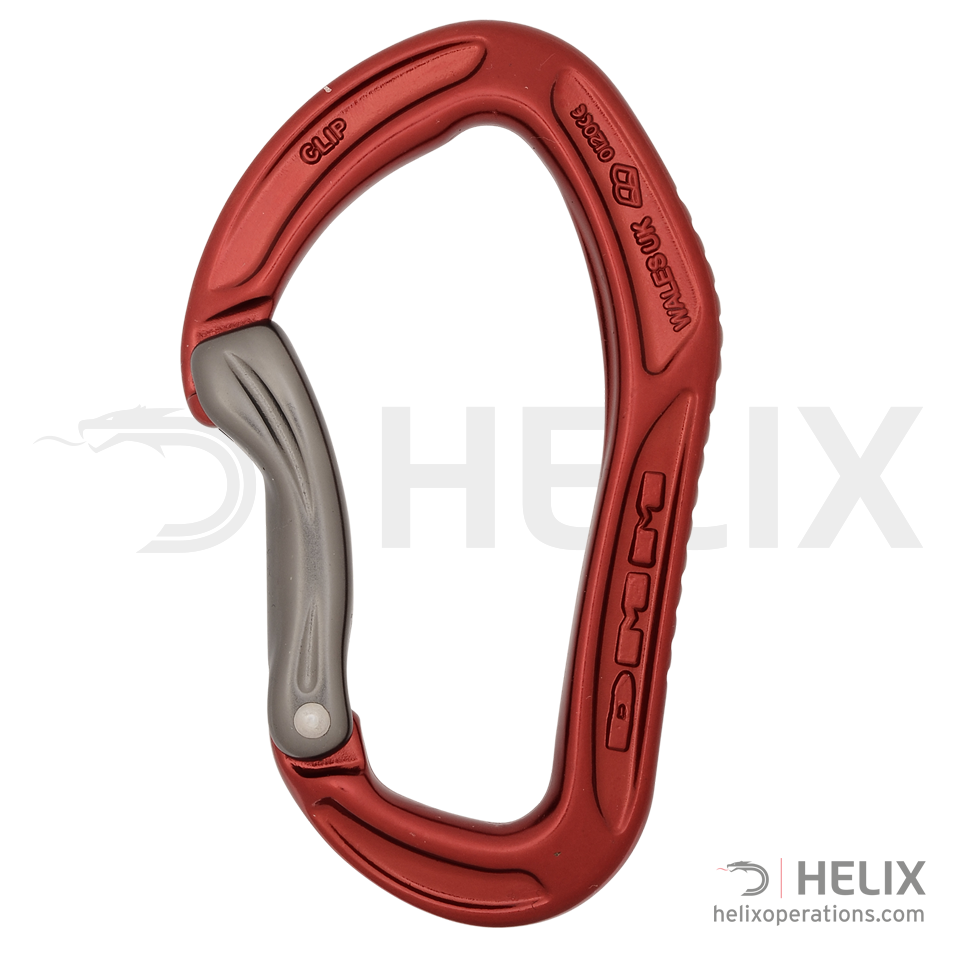

Alpha Bent Gate A526RD Red/Titanium 24kN 8kN 9kN 61 x 102mm 47g 25mm EN12275:2013 B, UIAA121 Class B

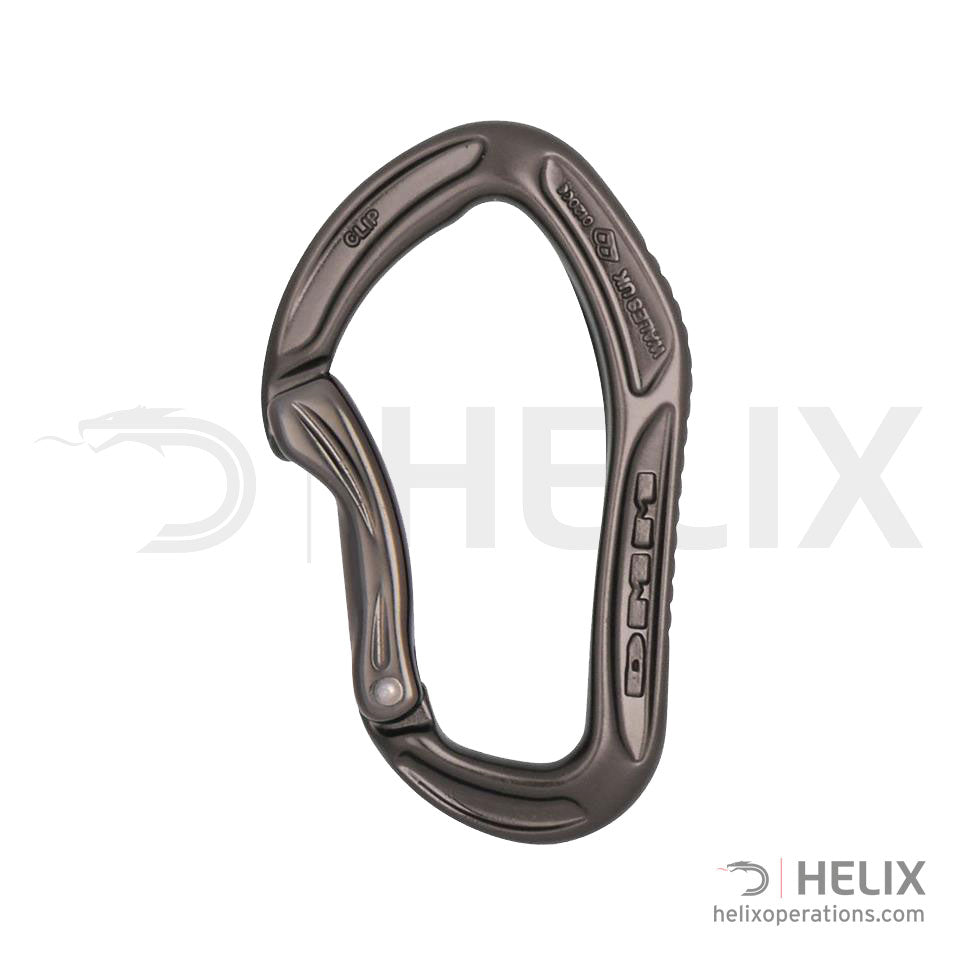

Alpha Bent Gate A526MG Matt Grey 24kN 8kN 9kN 61 x 102mm 47g 25mm EN12275:2013 B, UIAA121:2009

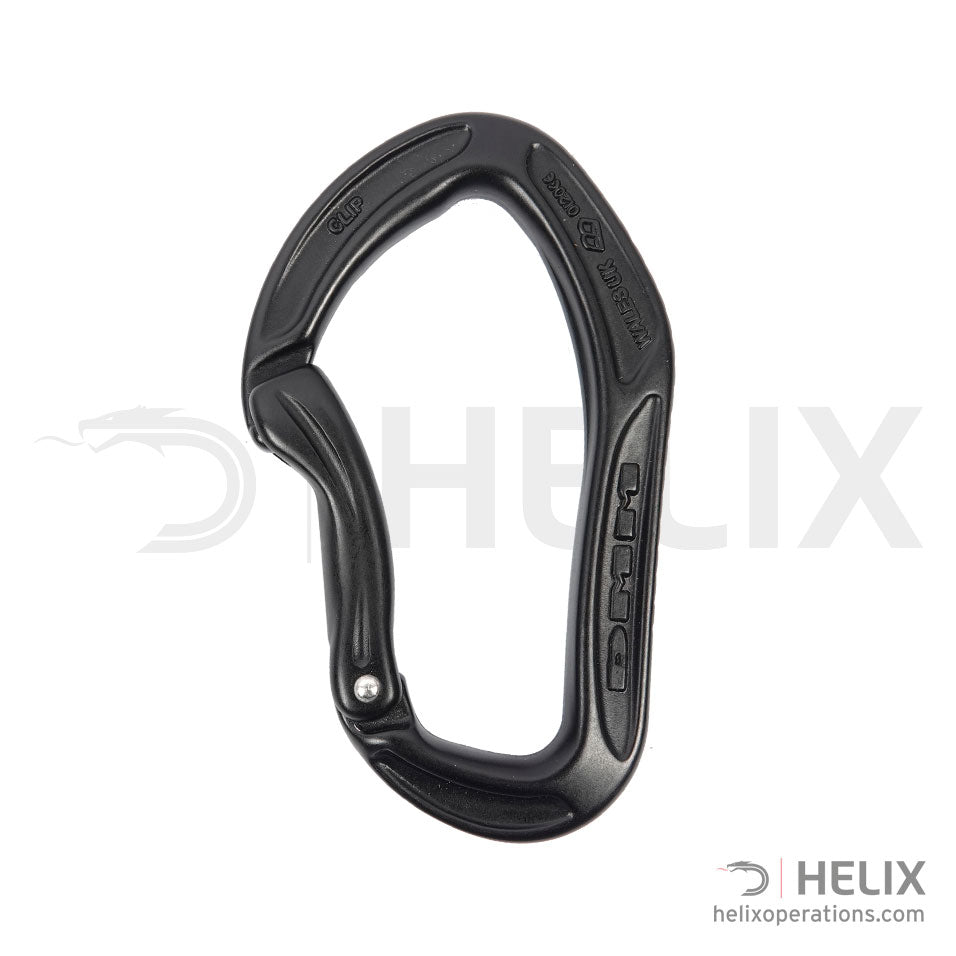

Alpha Bent Gate A526BLK Black 24kN 8kN 9kN 61 x 102mm 47g 25mm EN12275:2013 B, UIAA121:2009
