Anchor Rings

Textile friendly, lightweight connection points that can be loaded from any angle.

Colour: Green
Size: 26mm
Product Downloads
Colour: Green
Size

In detail

DMM Anchor Rings are simple, functional anchor components that work seamlessly with connectors and textile components. They are ideal when a tamperproof linking component is preferred over opening connectors, such as establishing remote anchor points.



Product Name Product Code Colour Dimensions Weight Certification MBS WLL

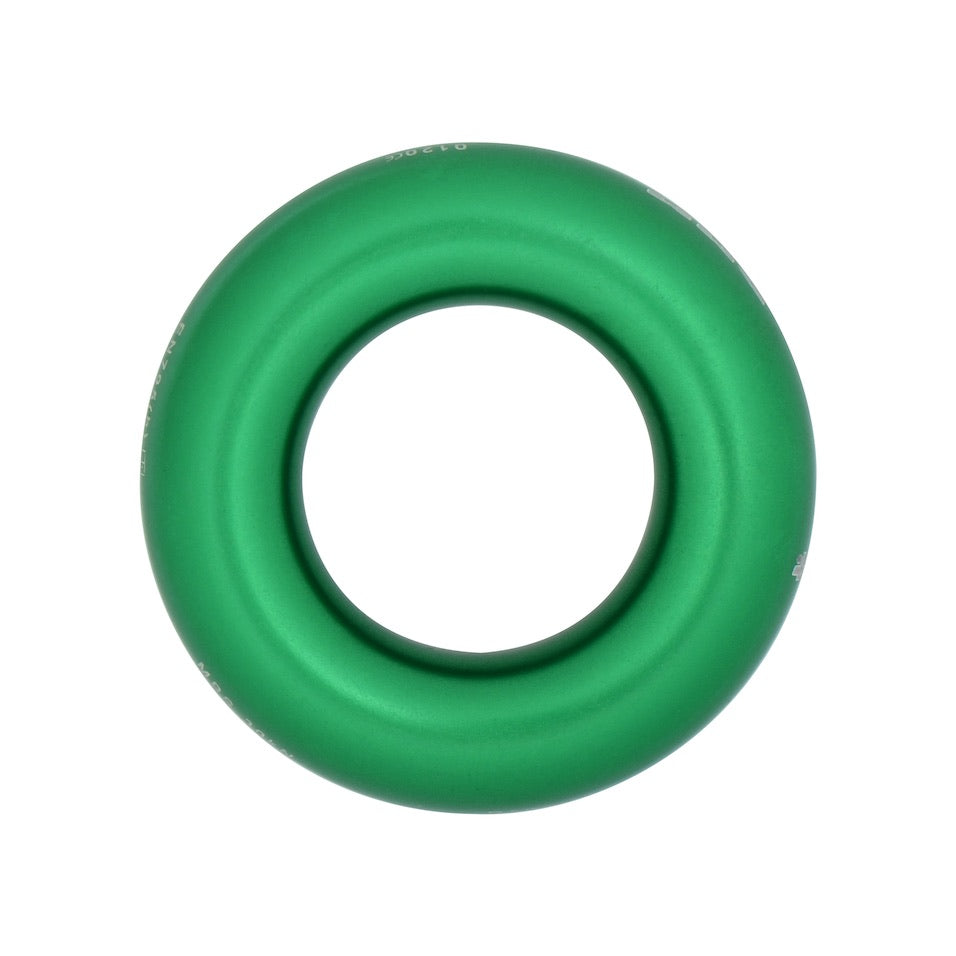

Anchor Ring 26mm R500-26 Green 26mm ID x 12mm 38g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN

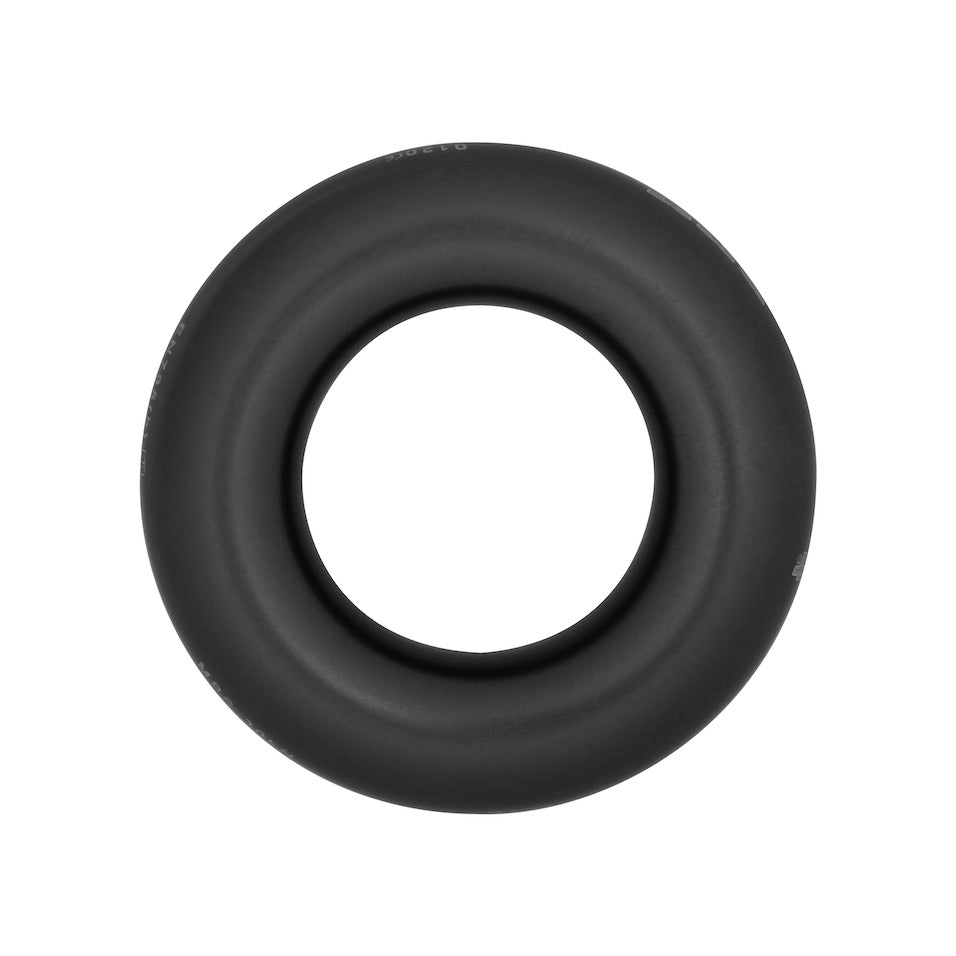

Anchor Ring 26mm R500-26MG Matt Grey 26mm ID x 12mm 38g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN

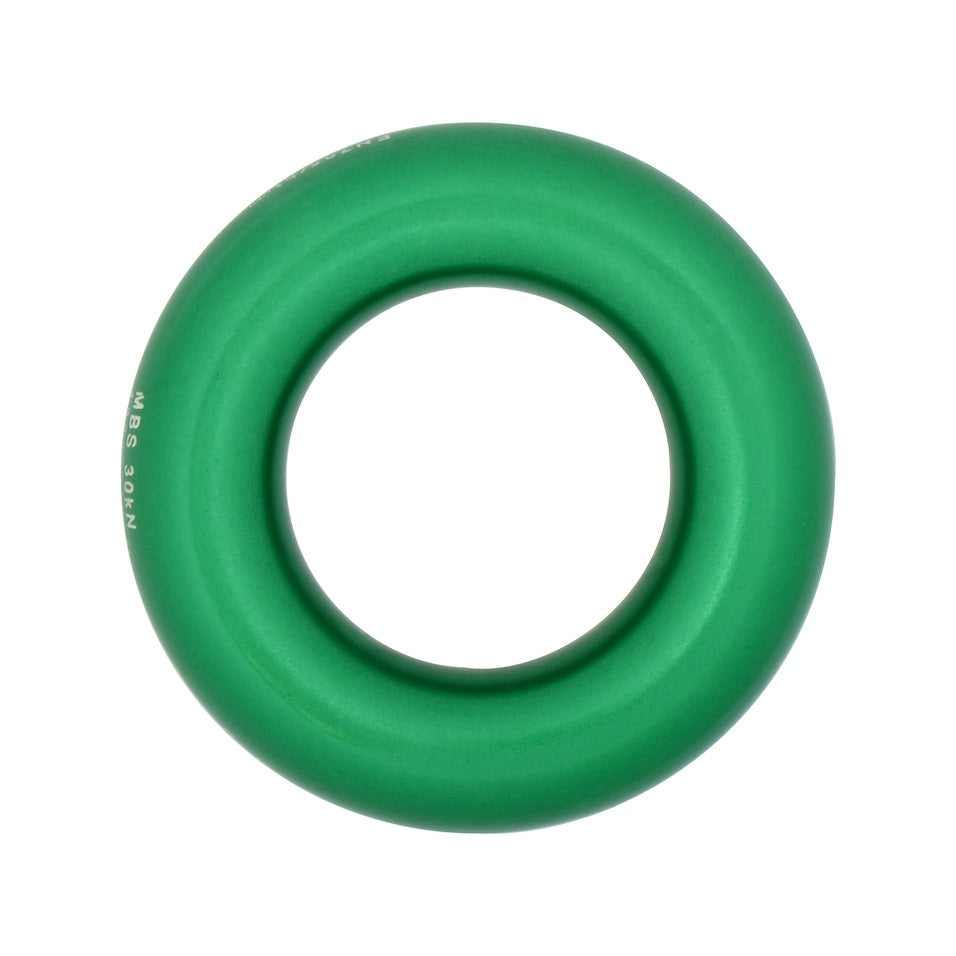

Anchor Ring 28mm R500-28 Green 28mm ID x 12mm 41g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN

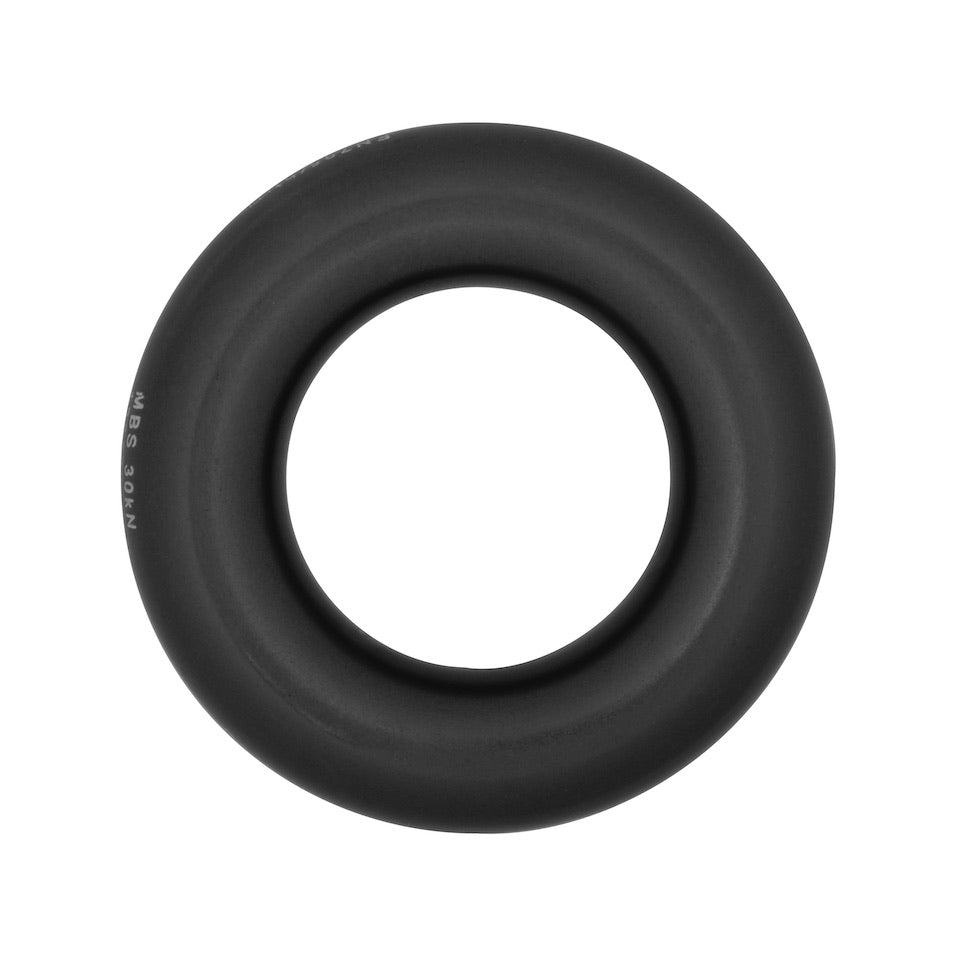

Anchor Ring 28mm R500-28MG Matt Grey 28mm ID x 12mm 41g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN

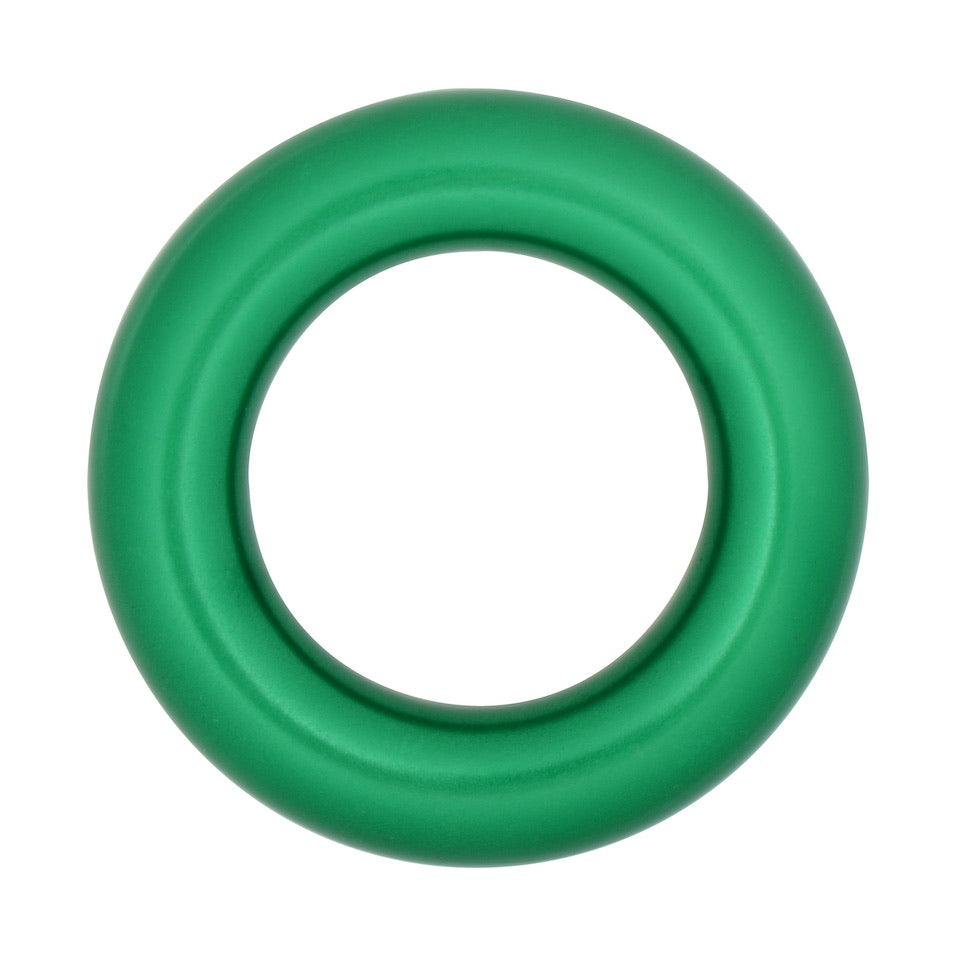

Anchor Ring 34mm R500-34 Green 34mm ID x 12mm 48g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN

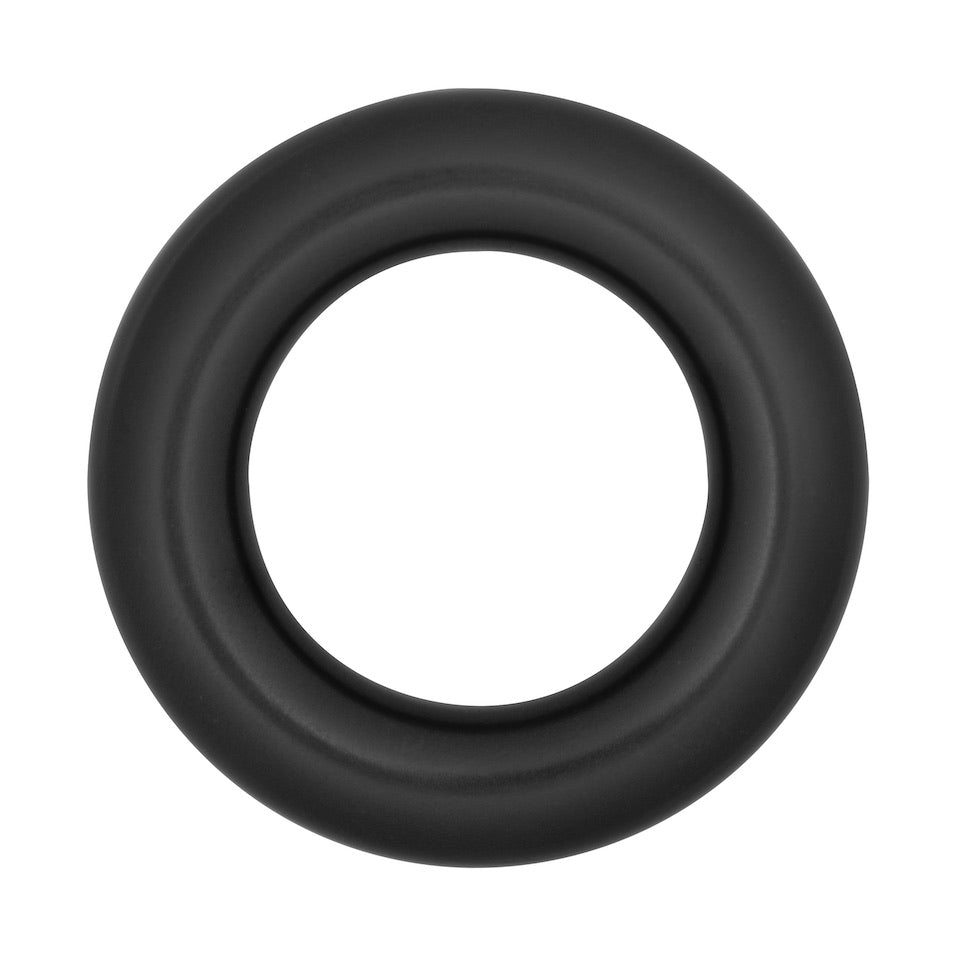

Anchor Ring 34mm R500-34MG Matt Grey 34mm ID x 12mm 48g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN

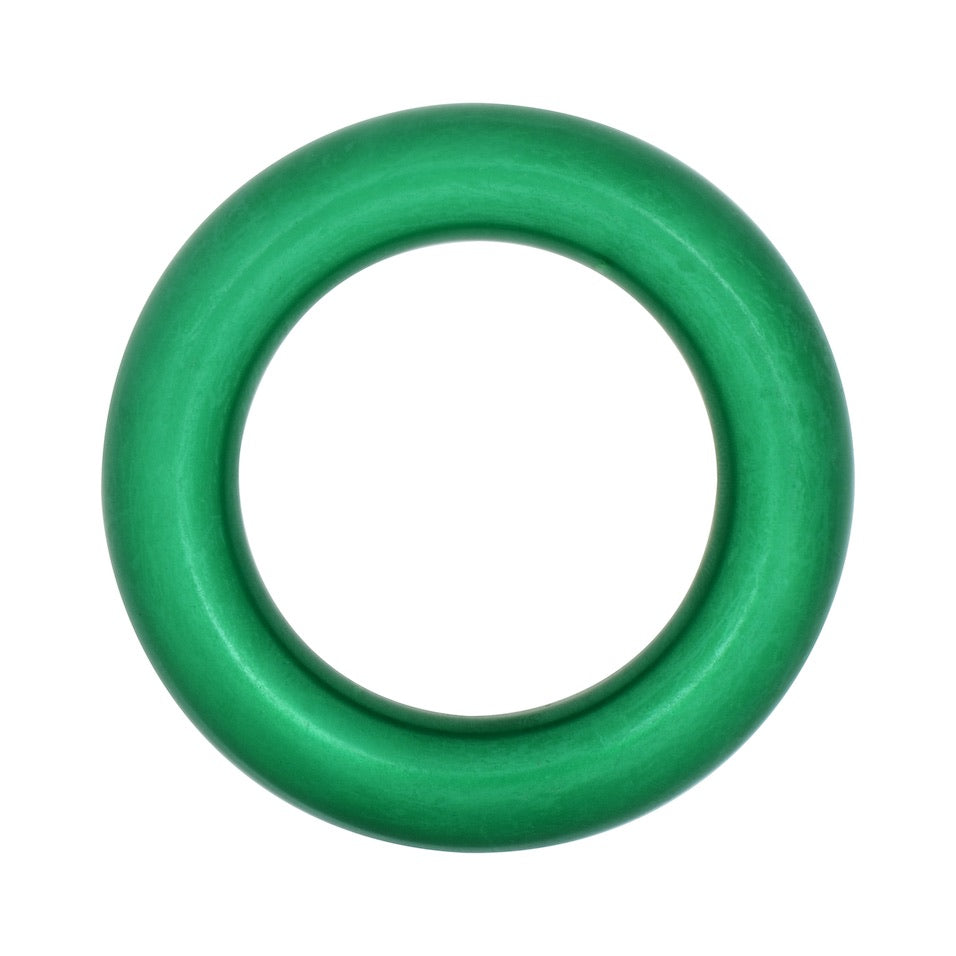

Anchor Ring 40mm R500-40 Green 40mm ID x 12mm 51g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN
Anchor Ring 40mm R500-40MG Matt Grey 40mm ID x 12mm 51g Manufacturers Technical Specification QAP98 (CE) 30kN 6kN
