In detail

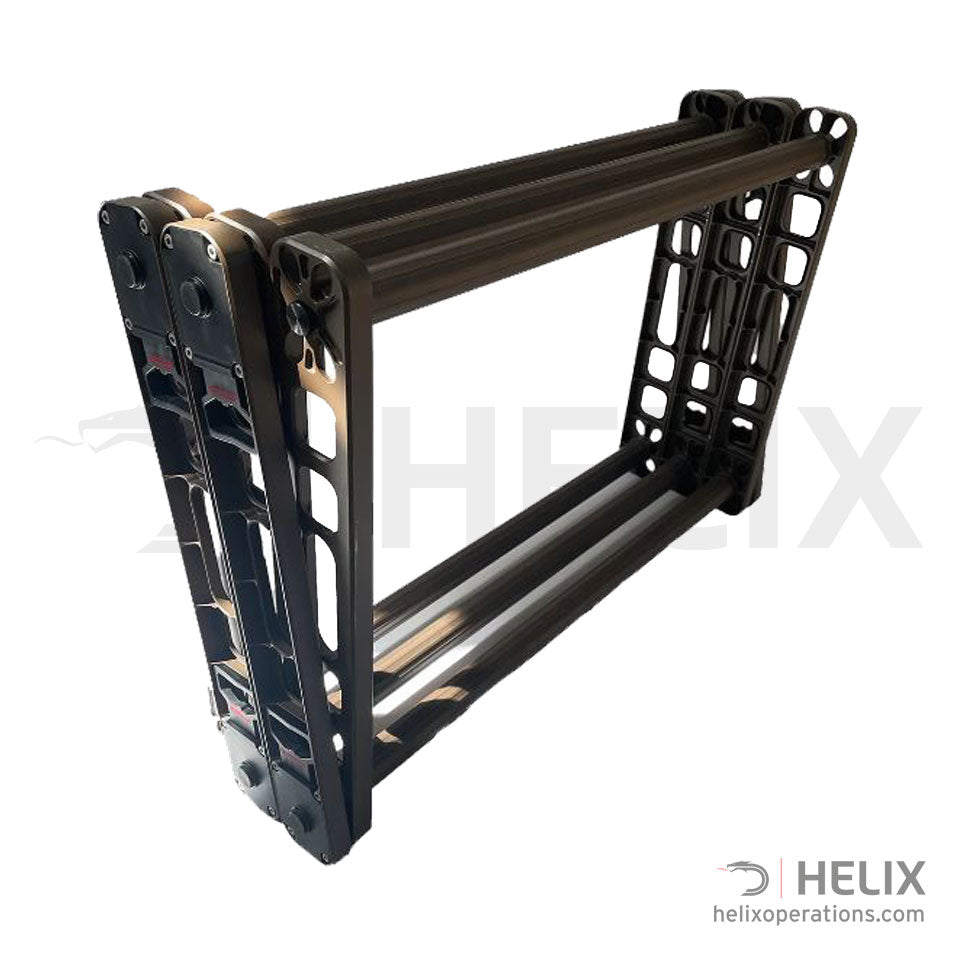

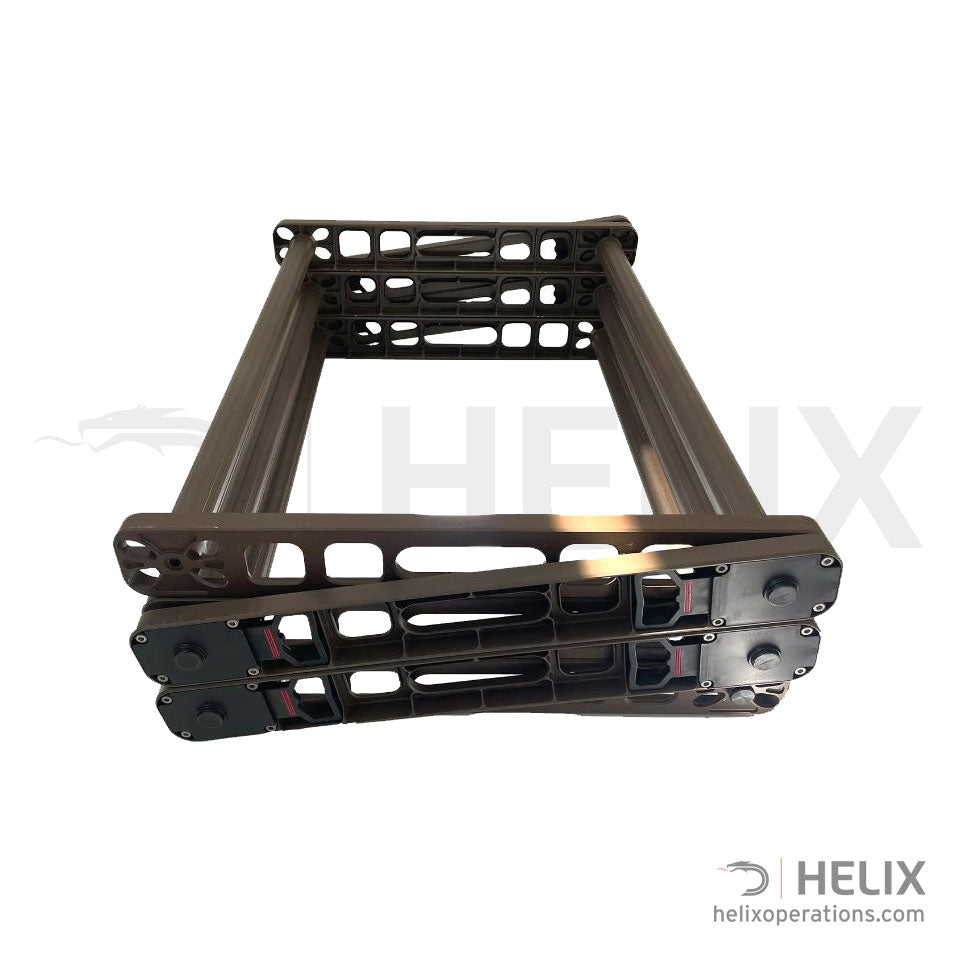

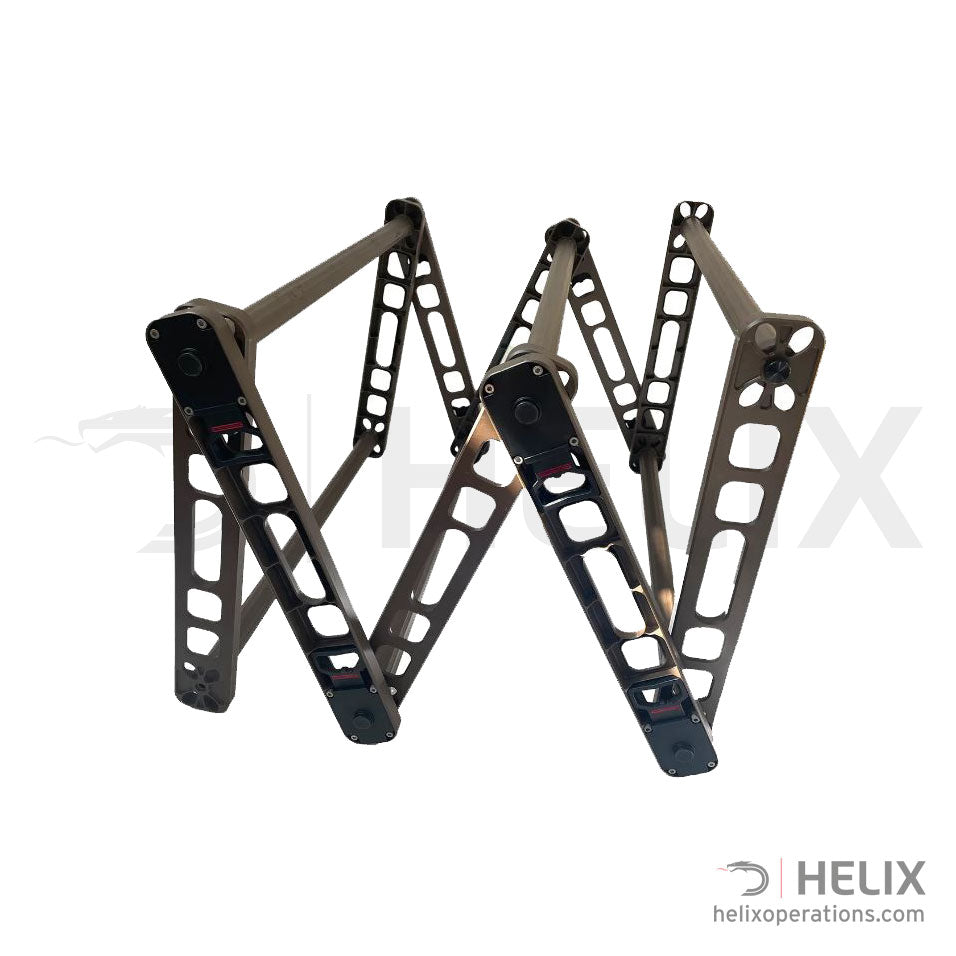

The Atlas Tactical Ladder (ATL) Wide is a high-strength aluminium collapsible bridging ladder and litter system. It is suitable for jump, maritime, and urban lean-to and hook and climb tactical access mission requirements.
It combines the packable, height-conformable strength and tailorability of a ladder and bridge with the speed, efficiency, and security of a vertical/horizontal hoistable patient litter. The integrated handle designs enable effective patient manipulation and longer duration carries.
Tool-free joining of up to two full ATL Wide segments to make a 4.6m/15ft ladder, and the deployment time is <5 seconds. Secondary positive joint locks can automatically engage on deployment, and joints are manually lockable for noise control.
Compliant with relevant portions of NFPA 1931015, ANSI-ASCA14.2-2007.
| Product Name | Weight | Typical Reach Height | Load Capacity | Deployed Dimensions | Stowed Dimensions |
|---|---|---|---|---|---|
| Atlas Tactical Ladder (ATL) Wide | 6.53kg / 14.4lbs | 4.6m / 15ft | 181kg-362kg / 400lbs-800lbs | 2.1m / 7ft | 70 x 48.2 x 19cm / 27.5 x 19 x 7.5in |
