Bat Rigging Plate

Textile friendly rigging plates that minimises system height in complex rigging scenarios, and can be bolted together for complete redundancy.

Size: XS
Colour: Orange
Product Downloads
Documents

Rigging Hubs and Plates User Instructions (EN, FR, DE, ES, PT, NL, NO, SV, FI, DK, PL, CZ, SK)

Rigging Hubs and Plates User Instructions (SL, BG, HU, RO, ET, LV, LT, EL)

RIG XXX EU Declaration of Conformity
Size
Colour: Orange

In detail

DMM Bat Plates raise the bar in design, performance and strength. Precision machining and heat treatment make them strong, light and incredibly versatile.

The Bat shape minimises height loss in complex rigging scenarios and generous radii allow direct attachment of textiles as well as connectors. The oversized central hole allows for effortless centralising of connections and gives a perfect technician clipping point.

NSN Code

Bat Rigging Plate XS (RIG-XS-MG) - 3940-99-472-1812

Product Name Product Code Colour MBS WLL Dimensions Weight Certification

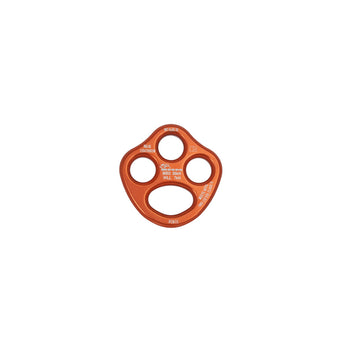

Bat Plate XS RIG-XS-OR Orange 36kN 7kN 62 x 62 x 8mm 37g Manufacturers Technical Specification QAP99 (CE)
Bat Plate Small RIG-S-RD Red 60kN 12kN 129 x 95 x 10mm 159g Manufacturers Technical Specification QAP99 (CE)
Bat Plate Medium RIG-M-BL Blue 60kN 12kN 189 x 97 x 10mm 247g Manufacturers Technical Specification QAP99 (CE)
Bat Plate Large RIG-L-GD Gold 60kN 12kN 249 x 99 x 10mm 322g Manufacturers Technical Specification QAP99 (CE)

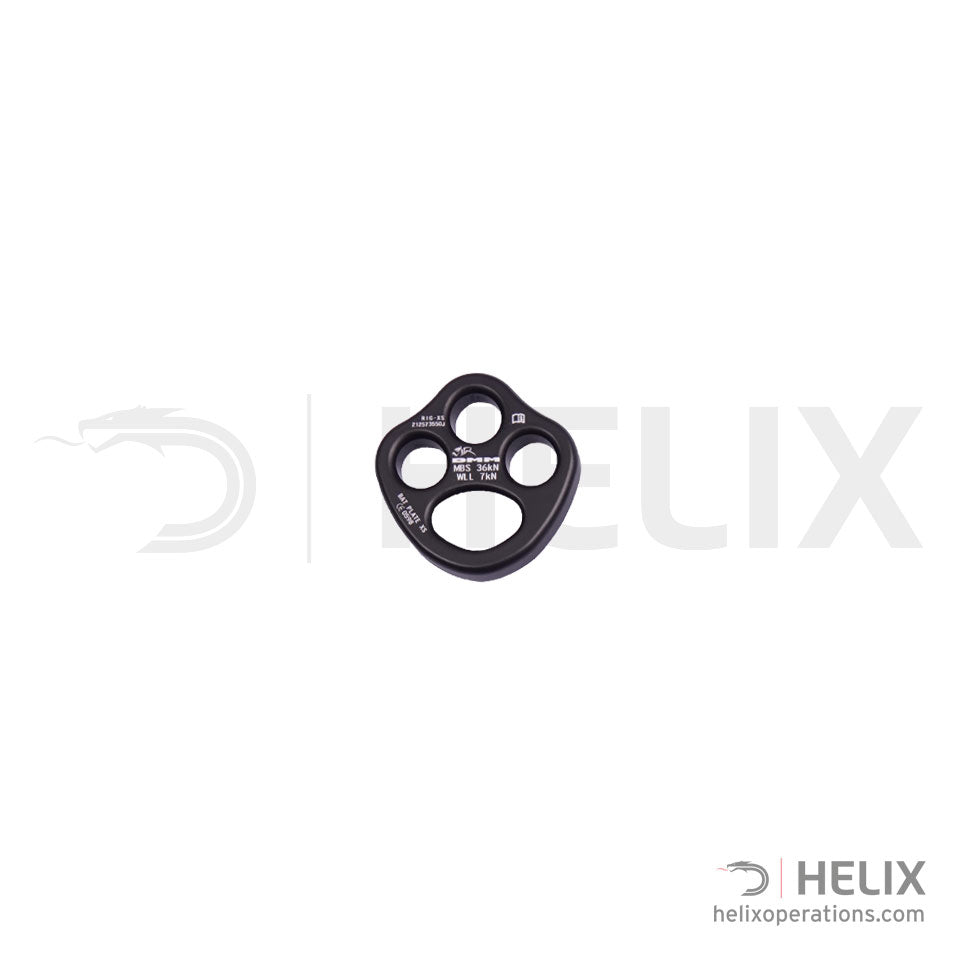

Bat Plate XS RIG-XS-MG Matt Grey 36kN 7kN 62 x 62 x 8mm 37g Manufacturers Technical Specification QAP99 (CE)

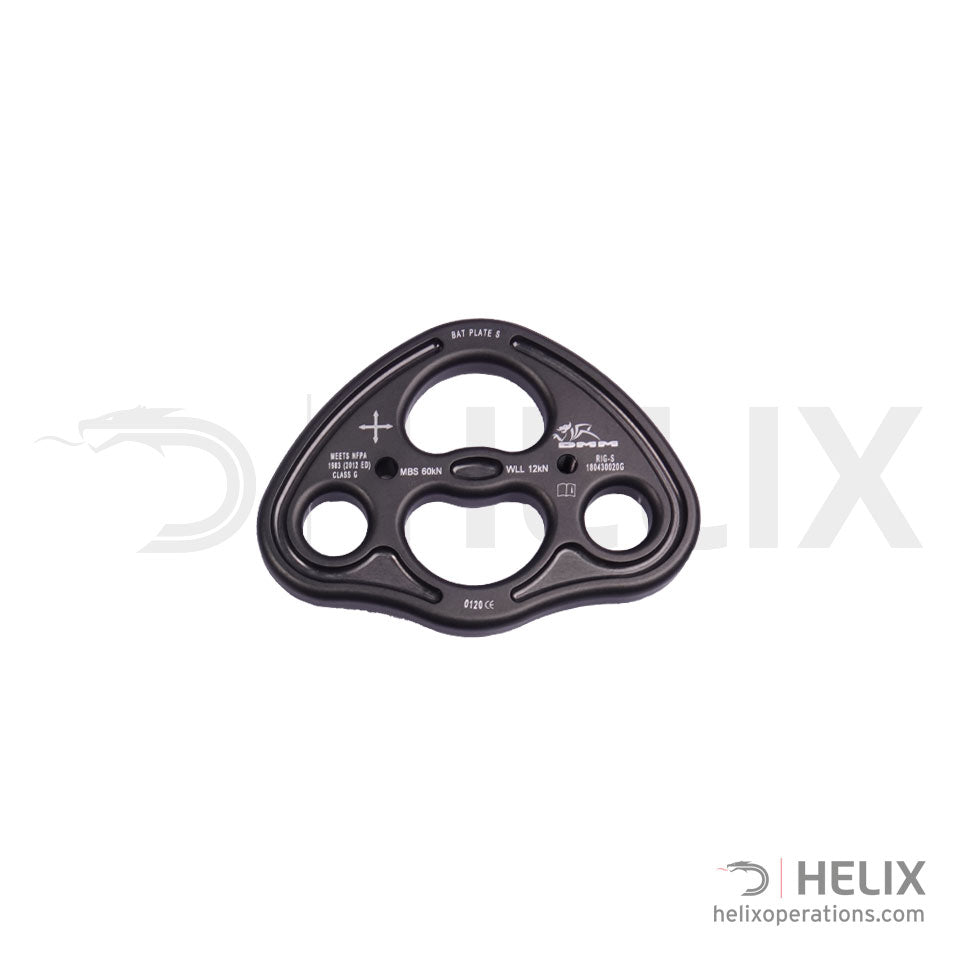

Bat Plate Small RIG-S-MG Matt Grey 60kN 12kN 129 x 95 x 10mm 159g Manufacturers Technical Specification QAP99 (CE)

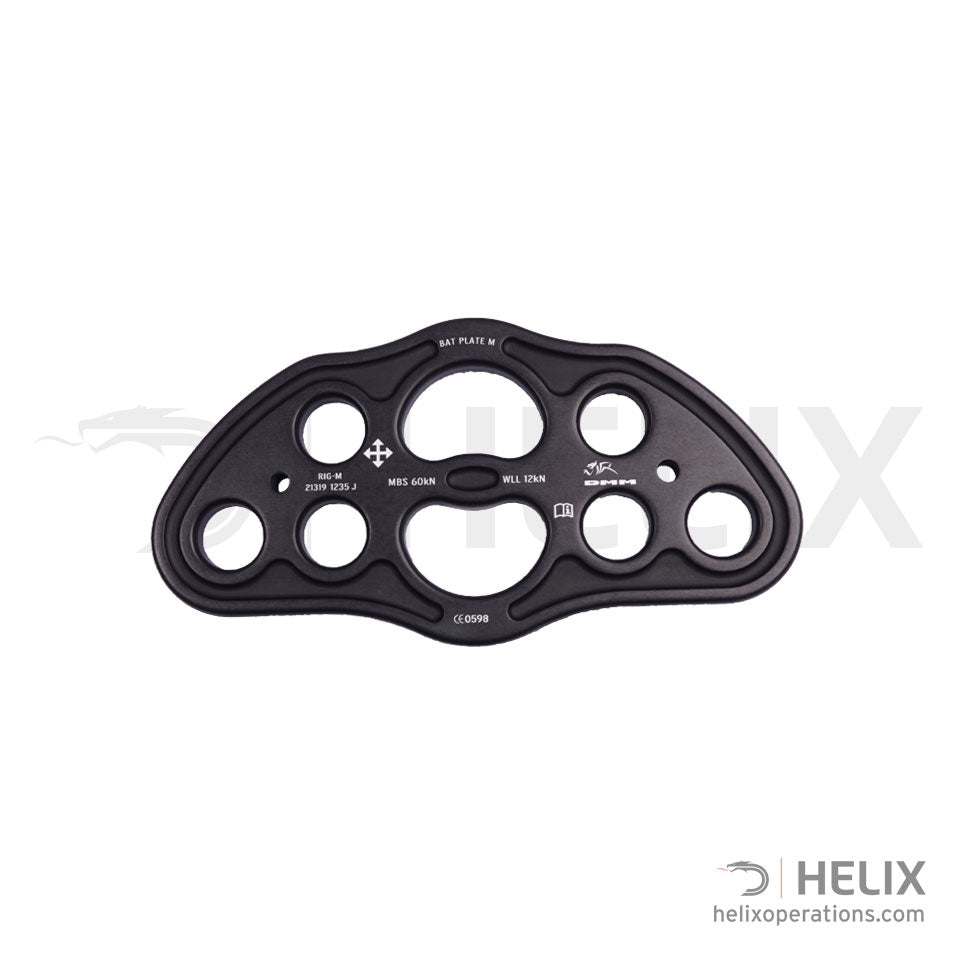

Bat Plate Medium RIG-M-MG Matt Grey 60kN 12kN 189 x 97 x 10mm 247g Manufacturers Technical Specification QAP99 (CE)

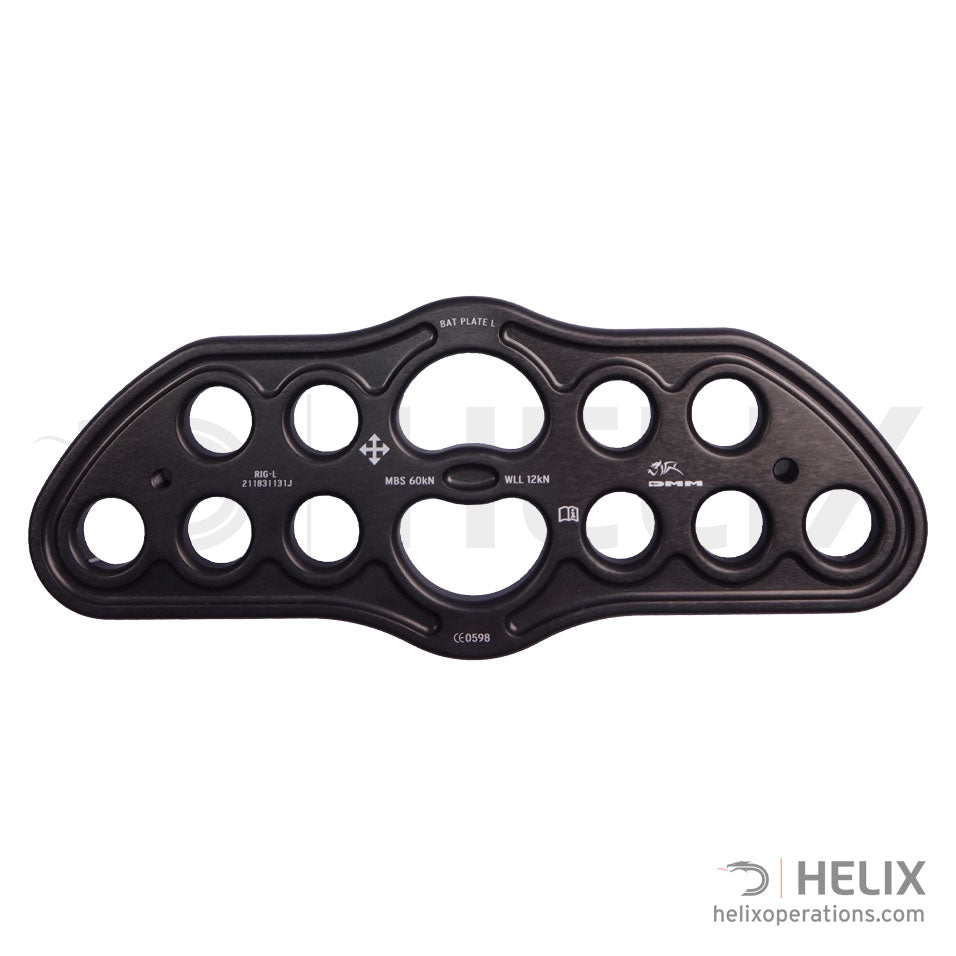

Bat Plate Large RIG-L-MG Matt Grey 60kN 12kN 249 x 99 x 10mm 322g Manufacturers Technical Specification QAP99 (CE)
