Delta Tactical Ladder (DTL)

A unique assault tactical ladder system where the carbon fibre ladder rungs form an integrated extension pole.

Type: DTL 10ft
Colour: Yellow
Type
Colour: Yellow

In detail

The Delta Tactical Ladder (DTL) is a unique assault tactical ladder system that uses its’ carbon fibre ladder rungs to form an extension pole that can place a Helix Urban Hook.

The system gives a hook and pole system that is very compact, light, fast and quiet to deploy and also very strong. The ladder comes with a Helix Urban Hook and Ghost Carabiner to give a complete hook and pole capability for urban environments.

The system was designed by a former Delta operator to provide a practical solution to access issues he had encountered whilst in the field.

The DTL is far more packable than a standard carbon pole and can be used both to gain access to first floor access points and also for continuous ‘at height’ movement when an extremely lightweight and quiet option is required.  Tasks such as moving from balcony to balcony, diagonal platform transitions and multi-stage building climbs in urban environments become viable whilst carrying a minimal package. The ladder is also a game changer for small vessel boarding for specialist dive units, again due to the compact nature of the system.

Made with braided Kevlar para-aramid rope and carbon fibre rungs the DTL is extremely lightweight at just 1kg / 2.2lbs for the 3.0m/10ft system and 1.34kg / 3lbs for the 4.9m/16ft system.

The system is comprised of:
  • 6mm 12-strand braided Kevlar rope with a tensile strength of 9500lbs/4000kg. It is fire retardant, UV resistant and abrasion resistant.
  • 4-Wrap carbon fibre steps
  • Helix Urban Hook
  • DMM Ghost / DMM Ultra O Carabiner
The DTL’s overall tensile strength exceeds 5000lbs/2200kg allowing the end user to customize the ladder system to best fit the scenario and objective.

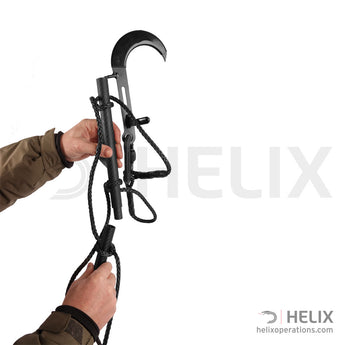

The steps/rungs are made to easily fit within the next step/rung which creates a stiff pole with a single hook on the end to deploy up to 16ft with one ladder. Once the hook is secure, a gentle tug releases the steps/rungs to create the ladder itself. The DTL is easy to deploy and climb.

Each DTL is designed to attach to the bottom of another DTL giving end users an extended reach – the ladder system is recommended for free hanging climbs up to 8.5m/28ft in a free suspension situation.

Product Name Product Code Pole Length Ladder Length Rungs Weight Colour
Delta Tactical Ladder 10ft DLTAC10BLK 2.13m / 7ft 3.05m / 10ft 8 1kg / 2.2lbs Black
Delta Tactical Ladder 16ft DLTAC16BLK 3.41m / 11ft 2in 4.88m / 16ft 13 1.36kg / 3.0lbs Black
Delta Tactical Ladder with Ghost Carabiner and Urban Hook DLTAC10BLK-KIT 2.13m / 7ft 3.05m / 10ft 8 1.31kg / 2.88lbs Black
Delta Tactical Ladder with Ghost Carabiner and Urban Hook DLTAC16BLK-KIT 3.41m / 11ft 2in 4.88m / 16ft 13 1.61kg / 3.54lbs Black
Delta Tactical Ladder 10ft DLTAC10BLK/YEL 2.13m / 7ft 3.05m / 10ft 8 1kg / 2.2lbs Black / Yellow
Delta Tactical Ladder 10ft DLTAC16BLK/YEL 3.41m / 11ft 2in 4.88m / 16ft 13 1.34kg / 3.0lbs Black / Yellow
Delta Rescue Ladder with Ultra O and Urban Hook DLTAC10BLK/YEL-KIT 2.13m / 7ft 3.05m / 10ft 8 1.3kg / 2.86lbs Black / Yellow
Delta Rescue Ladder with Ultra O and Urban Hook DLTAC16BLK/YEL-KIT 3.41m / 11ft 2in 4.88m / 16ft 13 1.66kg / 3.65lbs Black / Yellow

1 / 3

Features

The steps/rungs are made to easily fit within the next step/rung which creates a stiff pole technique with a single hook on the end to deploy up to 16ft with one ladder.

Once the hook is secure, a gentle tug releases the steps/rungs to create the ladder itself. The DTL is easy to deploy and climb.

The DTL’s overall tensile strength exceeds 5000lbs/2200kg allowing the end user to customize the ladder system to best fit the scenario and objective.

Customizable options include but are not limited to custom hook, carabiner, grip tape, illuminous tape and/or glint tape.
To enable the DTL system to be used in other situations there are other variations/add-ons available such as a Floatation option for waterborne operations and Glint tape which can be
added to the rope in order to provide more visibility for conducting rescue operations.

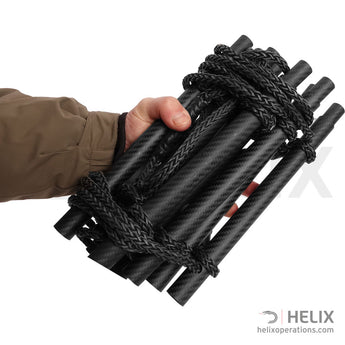

1. After use, the DTL should be rolled up from the
bottom (the end that has the short loops).

2. First stow the bottom ladder loops by crossing
them to the center. Keeping the ropes to the
center, roll the ladder rung to the next ladder
rung.

3. Repeat the process until the DTL is in a nice neat
tight package.

4. Holding the hook in one hand let the DTL unroll to
the ground. There will be a step/rung/pole closest
to the hook attachment pole, insert the small rod
into the top small end of the pole.
