In detail

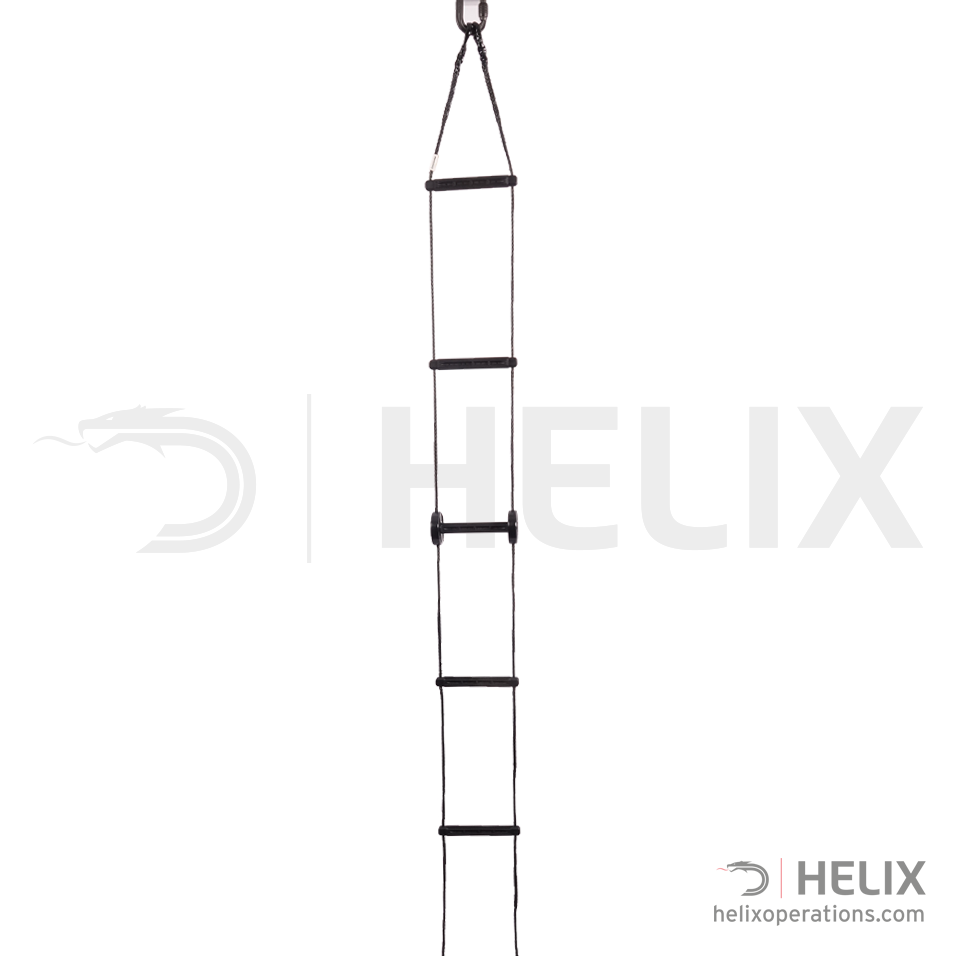

The Dimensiontek Technora Rope Ladder is constructed from Technora rope and injection-moulded ladder rungs.
It was designed in conjunction with special forces operators.
They are the strongest, toughest fibre ladders we have seen and are designed to withstand extreme conditions. They have exceptional strength, heat resistance, and durability.
The DimensionTek Technora Rope Ladder is resistant to damage when exposed to saltwater spray or immersion, making it ideal for maritime operations.

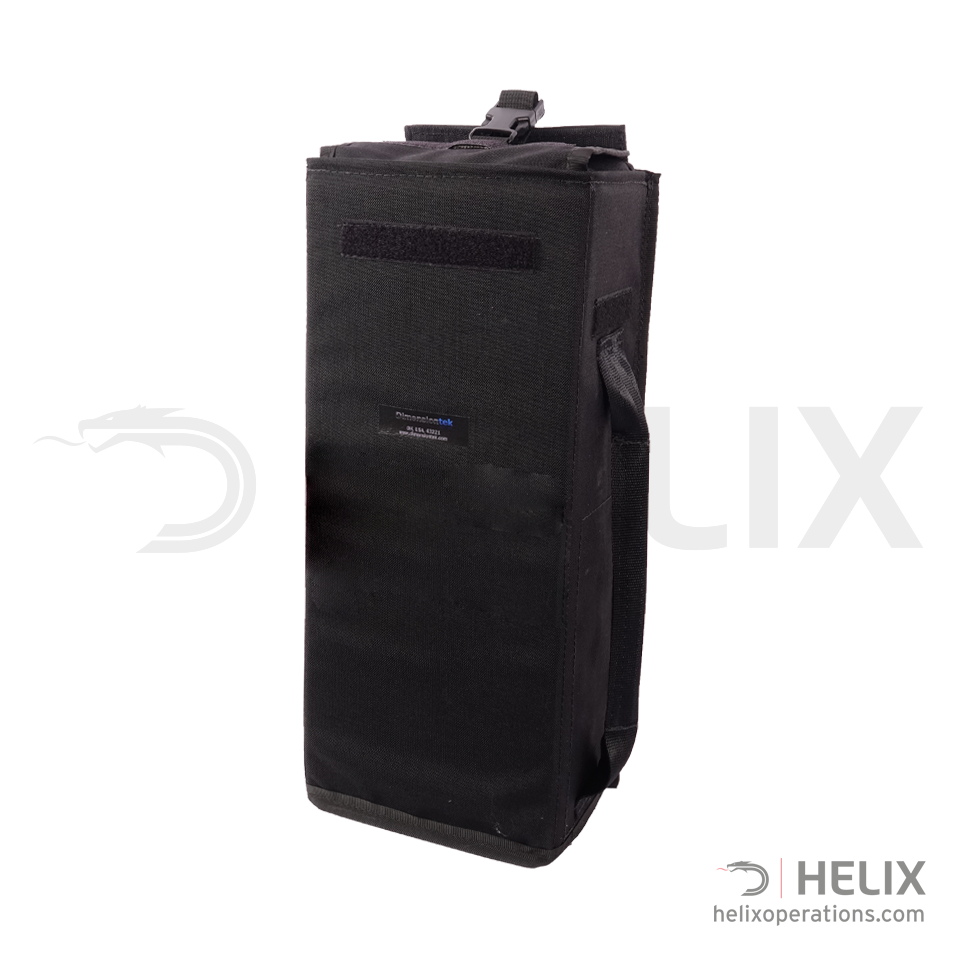

Lightweight and easy to handle, they are quick to deploy and set up in challenging conditions. It can also be quickly stored away in the ladder pouch.

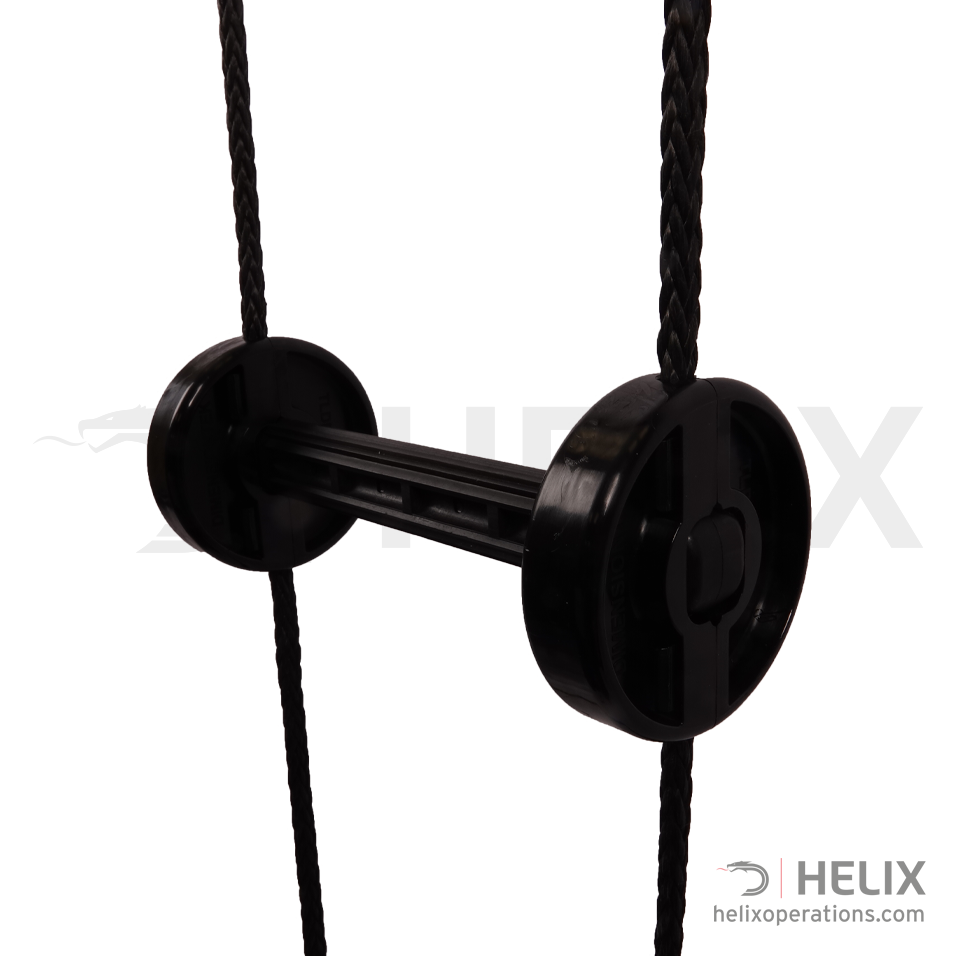

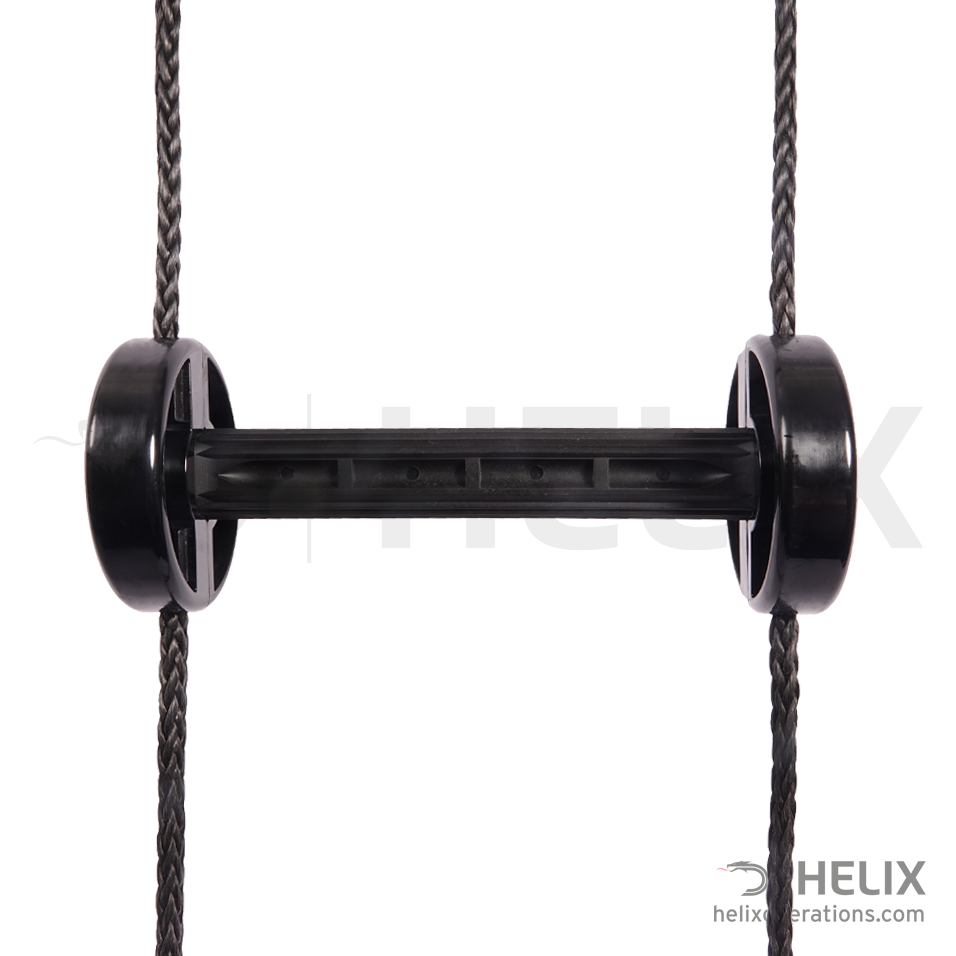

Optional ladder rung standoffs and a Ladder Standoff kit are available. The Technora Rope Ladder Optional Standoff Kit has enough standoffs for six ladder rungs.

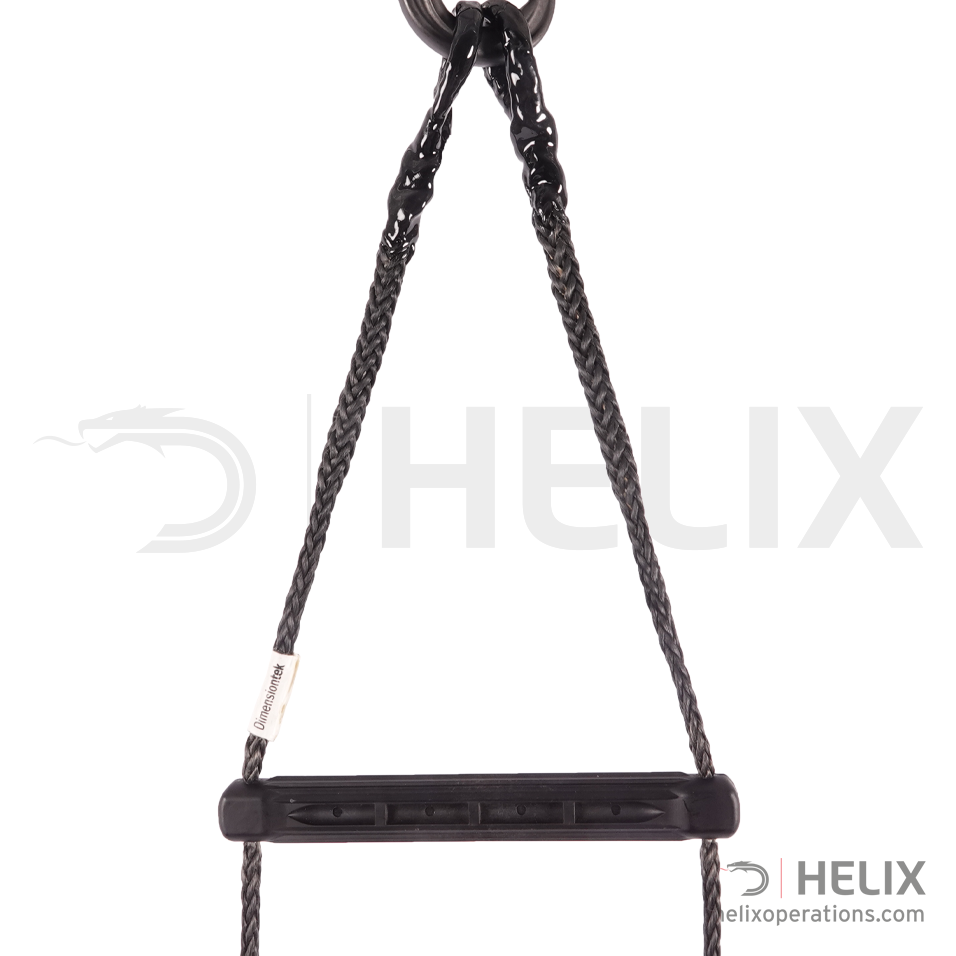

- Top Loop - Black Weaved / Epoxy Dipped
- Rope Material - Kevlar
- Rope Strength - 1800kg/4000lbs tested per side. Total = 3600kg/ 8000lbs.
- Rung Strength - 540kgf/1200lbs yielded. Failure = 5440kgf/12000lbs.
- Rung spacing - 30.4cm / 12"
- Stowed Configuration - Spooled / Packed
- Materials - Kevlar and Moulded Nylon
| Product Name | Weight | Length | Width | Rung Spacing | Rung Material | Top Loop | Rope Material | Rope Strength | Rung Strength | Materials | NSN Code |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Dimensiontek Technora Rope Ladder 35ft | 5lbs / 2.3kg | 35ft / 10.7m | 6in / 15.2cm | 12in / 30.4cm | Glass Filled Nylon | Black Weaved / Epoxy Dipped | Kevlar | 4000lb per side / 8000lb total | 1200lb yield / 1200lb failure | Kevlar and Molded Nylon | 4240-01-710-5610 |
| Dimensiontek Technora Rope Ladder 65ft | 9.6lbs / 4.3kg | 65ft / 19.8m | 6in / 15.2cm | 12in / 30.4cm | Glass Filled Nylon | Black Weaved / Epoxy Dipped | Kevlar | 4000lb per side / 8000lb total | 1200lb yield / 1200lb failure | Kevlar and Molded Nylon | 4240-01-710-5600 |
| Dimensiontek Technora Rope Ladder Standoff Kit | - | - | - | - | - | - | - | - | - | - | 5340-01-710-5601 |
