Figure 8

The classic abseil device, ideal for walls and training centres running group abseil sessions.

Type: Standard
Colour: Silver
Product Downloads
Type
Colour: Silver

In detail

The DMM Figure 8 abseil device has a classic design with the emphasis on the device being light and compact. This figure 8 offers a very smooth descent and good lock-off. Extra friction can be generated on skinny ropes by feeding them into the smaller hole and clipping into the larger hole.    The Figure 8 has a simple design that is finished to the usual high DMM standard; a hot forged aluminium alloy body to maximise strength and minimise weight combined with heavy rumbling that results in fully rounded smooth surfaces that help minimise any jerkiness when abseiling.   The DMM Anka is anodised to BS EN 7599:2010 AA10.   It meets the requirements of EN15151-2:2013 and is recommended for ropes with the following diameters

  • Ropes classified as Single Ropes: 8.9 – 11.0mm
  • Ropes classified as Half Ropes 7.3 - 9.2
  • Ropes classified as Twin Ropes 7.3 - 9.2





Product Name Product Code Colour Weight Rope Diameter Meets Requirements of

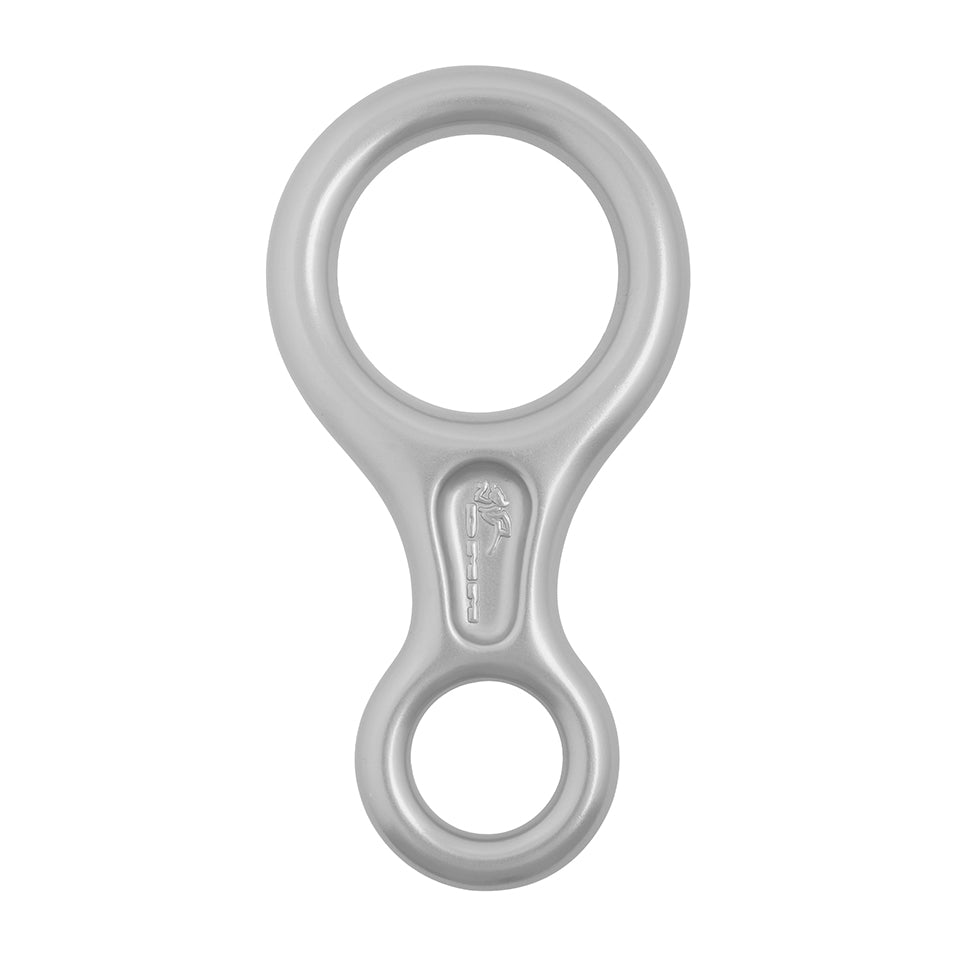

Figure 8 A1150P Silver 116g Half/Twin: 7.3mm-9.2mm | Single: 8.5mm-11mm EN15151-2:2013
Figure 8/Belay Master A1150/872 Silver/Titanium 208g Half/Twin: 7.3mm-9.2mm | Single: 8.5mm-11mm EN15151-2:2012, EN 362:2004 B/T, EN 12275:1998 B/H

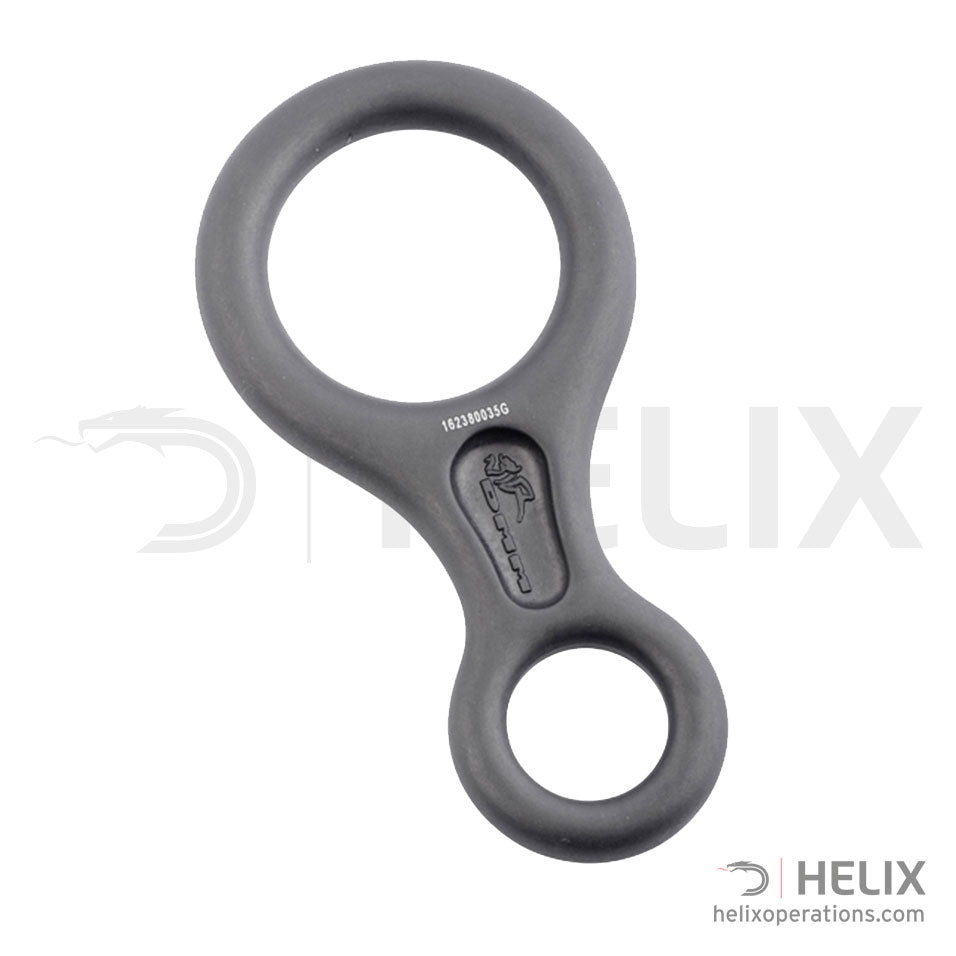

Figure 8 A1150MG Matt Grey 116g Half/Twin: 7.3mm-9.2mm | Single: 8.5mm-11mm EN15151-2:2013
