In detail

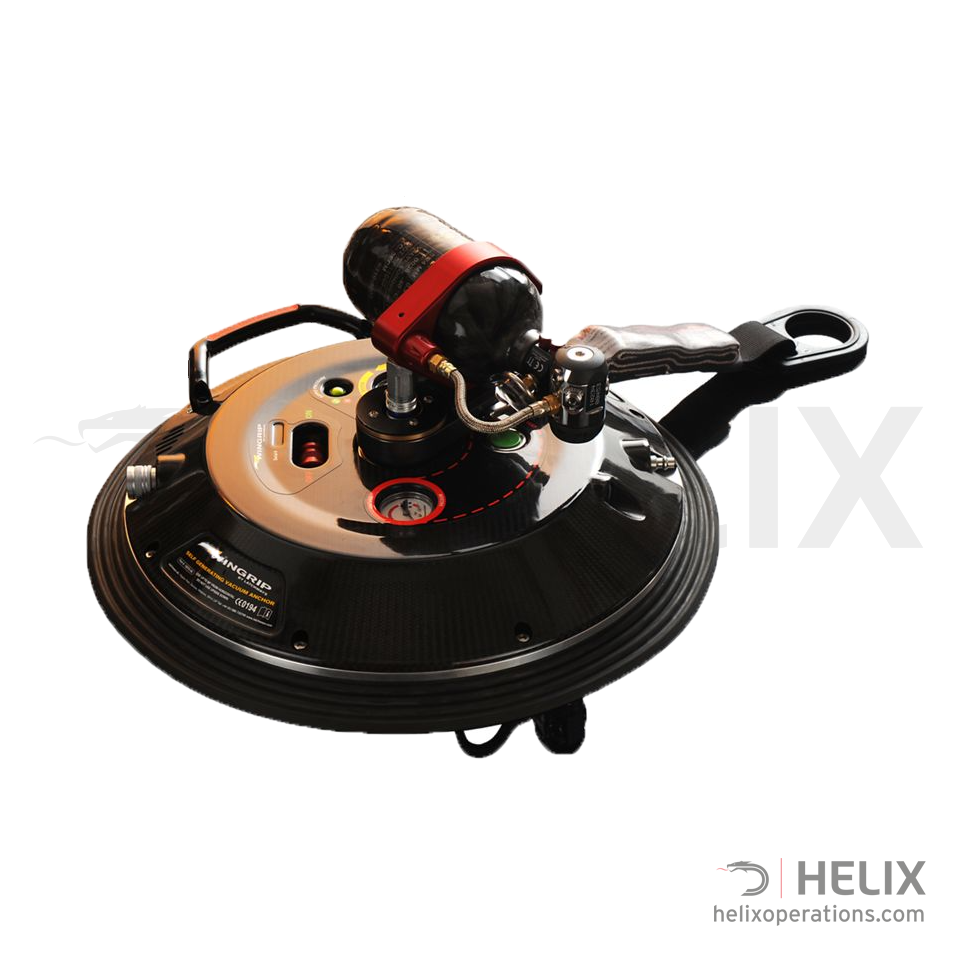

The WinGrip Vacuum Anchor is a reliable fall protection solution designed for use during aircraft manufacturing and maintenance. This lightweight and portable system provides secure anchorage on fuselage, stabiliser, and wing surfaces, supporting safe work both inside hangars and on the apron. Each anchor weighs less than 13.5 lbs, making it easy to handle, quick to install, and simple to operate.
The system is suitable for use on both wet and dry surfaces, indoors or outdoors, and offers quick installation for wing and fuselage maintenance tasks. It features a hands-free, user-friendly design and is intrinsically safe, allowing operation even when fuel tanks are open. The WINGRIP system runs on compressed air or nitrogen, eliminating the need for electrical power, and ensures no metal-to-metal contact for enhanced safety and durability.
| Number of Suction Heads | Number of Pieces in Assortment/Set | L x W x H | Battery | Working Voltage | Rated Power | Carry Capacity | Rated Airflow | Maximum Vacuum Rate | Gross Weight |
|---|---|---|---|---|---|---|---|---|---|
| 1 PCS | 1 PCS | 200 × 200 × 90 mm | 4 × AA Alkaline (Not Included), approx. 1500 on/off cycles | 6V | 6W | 100 kg (220 lbs) | 4 L/min | -0.7 bar (-70 kPA) | 1.250 kg |
