HQH LadCarb FIX-LITE

The HQH LadCarb FIX-LITE provides more length options with reduced weight, to cover tactical operations that require several applications and ladder lengths.

In detail

Two different sections comprising of 2 rungs and 3 rungs means that different length options of sectional ladders from 0.7 m up to 5.0 m (extended by one rung space of 0.3 m) are available. Using the Rail Extension Adapter, the length accuracy can be improved to 0.18 m. This smart feature makes the FIX-LITE SECLAD an ideal tool for attacking buses, trains and buildings with different level of windows. The small sectional sizes allow for easy storage and transportation, with simple one-man operation (full deployment in less than 1 minute).

Shorter sections are an ideal solution for urban operations in confined space like ventilation ducts etc. In addition to this, these sections fit into a NATO approved parachuting container which can accommodate 3 m long ladder with accessories and other gear.
Ladder sections are secured by the universal spring-pin locks.

Product Name Product Code Colour Weight Length Rung Spacing MBL Rung Inner Width MBL Leaning Ladder MBL Bridge MBL Hook Ladder
Ladcarb Fix-Lite 5.0 M Standard System HQCL-LFS-CO-500-215-S Black 10.5kg 5m 300mm 300kg 360mm 400kg 150kg 300kg
Ladcarb Fix-Lite Carrying Bag (5m) HQCL-LFB-CO-542-222-S Black - - - - - - - -
Ladcarb Fix-Lite 3.8 M Compact System HQCL-LFS-CO-380-215-S Black - 3.8M - - - - - -
Labcarb Fix-Lite Carrying Bag (3.8M) HQCL-LFB-CO-422-222-S Black - - - - - - - -
Labcarb Fix-Lite Compact System Backpack HQCL-FFB-CO-000-222-S Black - - - - - - - -
Ladcarb Fix-Lite Seclad - Section 2 Rungs 0.6 M HQCL-LFS-SE-060-215-S Black 0.9kg 0.7m 300mm 300kg 360mm - - -
Ladcarb Fix-Lite Seclad - Section 3 Rungs 0.9 M HQCL-LFS-SE-090-215-S Black 1.2kg 1m 300mm 300kg 360mm - - -
Ladcarb Tactical Urban Hook AT (Titanium) v2 HQCL-HAT-CO-034-221-S Black - - - - - - - -
Ladcarb Universal Tactical Hook Bt (Titanium) HQCL-HBT-CO-020-215-S Black - - - - - - - -
Raptor Head HQCL-RAA-CO-000-219-S Black - - - - - - - -
Window Breaking Head HQCL-WBH-CO-000-215-S Black - - - - - - - -
Window Breaking Plate-Lfl HQCL-WBP-CO-001-215-S Black - - - - - - - -
Window-Breaking Plate Carrying Bag HQCL-WPB-CO-001-217-S Black - - - - - - - -
Rescue/Stretcher Conversion Kit HQCL-REC-CO-000-215-S Black - - - - - - - -
Anti-Slip Top Ending HQCL-TPE-CO-000-215-S Black - - - - - - - -
Anti-Slip Bottom Ending HQCL-BPE-CO-000-215-S Black - - - - - - - -
Ladcarb Flexi Element for REBS Tactical Hooks HKBE000266 Black - - - - - - - -
Mobile Stand-Off Device with 150mm Extender CL-MSC-CO-000-215-S/HQCL-EXM-CO-015-215-S Black - - - - - - - -

HQH LadCarb Fix Lite Ladder - Brochure
1 / 3

Features

FIX-LITE Window Breaker Applications

Hook Compatibility

HQH LADCARB® FIX-LITE Rescue Applications

HQH LadCarb FIX-LITE SECLAD

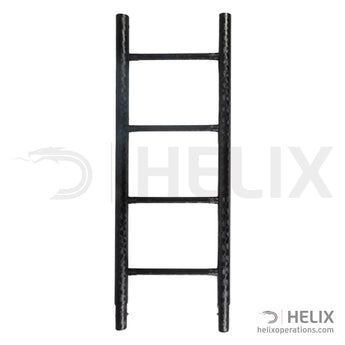

The HQH LADCARB® FIX-LITE is a fully modular and scaleable carbon composite ladder system that can be used as a leaning or hanging ladder, bridge, stretcher, window breaker, assault platform and smoke jump ladder.

The ladder sections come in 2 different lengths; a 2 rung 70cm long section and a 3 rung 1.0m section. The standard base package consists of 4 x 1.0m sections and 2 x 0.7m sections- this allows ladders to be created in multiple lengths to match the height of the access point.

Further fine tuning of the ladder can be achieved by using the 18cm long adapter that also allows use on steps, stairwells and uneven ground.

HQH LadCarb FIX-LITE SINLAD

FIX-LITE SINLAD single ladders can be made according to the specific needs resulting from pre-defined scenarios where using sectional ladders is time consuming.

The best example is attacking hijacked airplanes or hostage rescue operations. Single ladders can be connected together by Dual ladder connectors for faster entry of larger assault teams. Custom-made lengths from 1.4 to 5.0 m by 0.3 m.
