REBS Ultralight Pole Ladder (UPL)

The HQH LadCarb FIX-LITE provides more length options with reduced weight, to cover tactical operations that require several applications and ladder lengths.

Type: UPL
Type

In detail

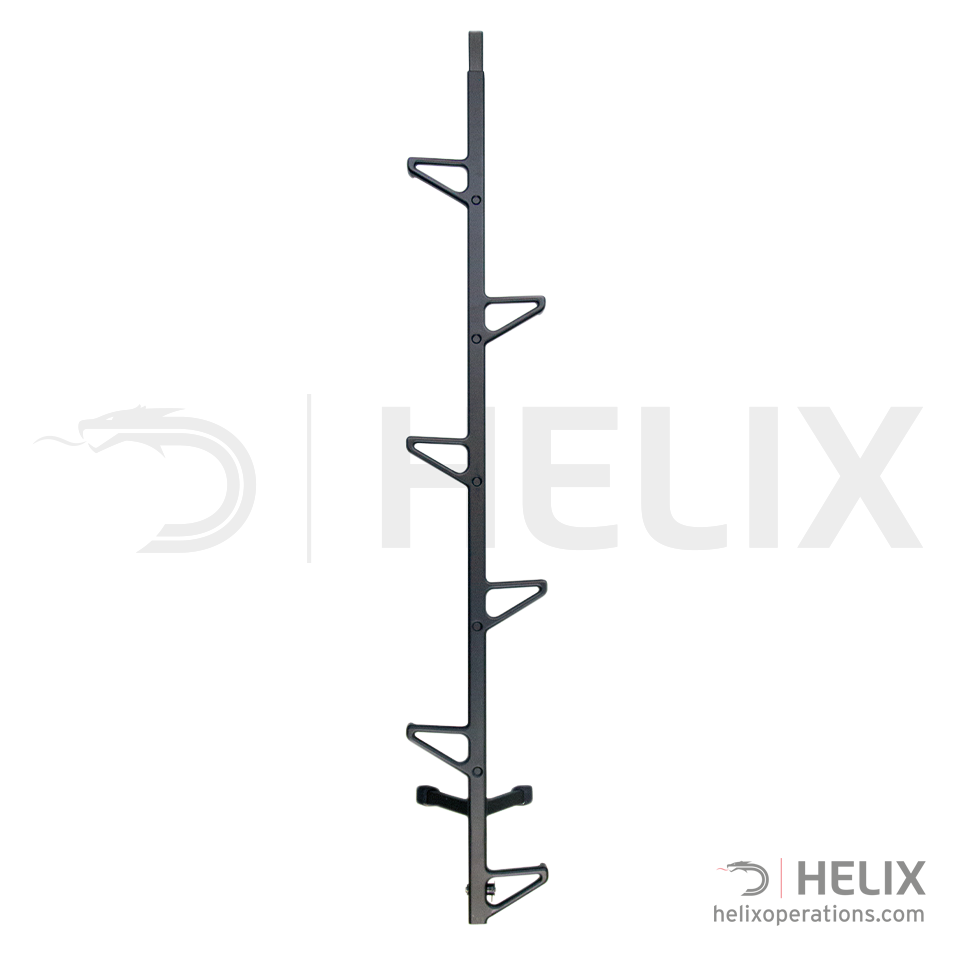

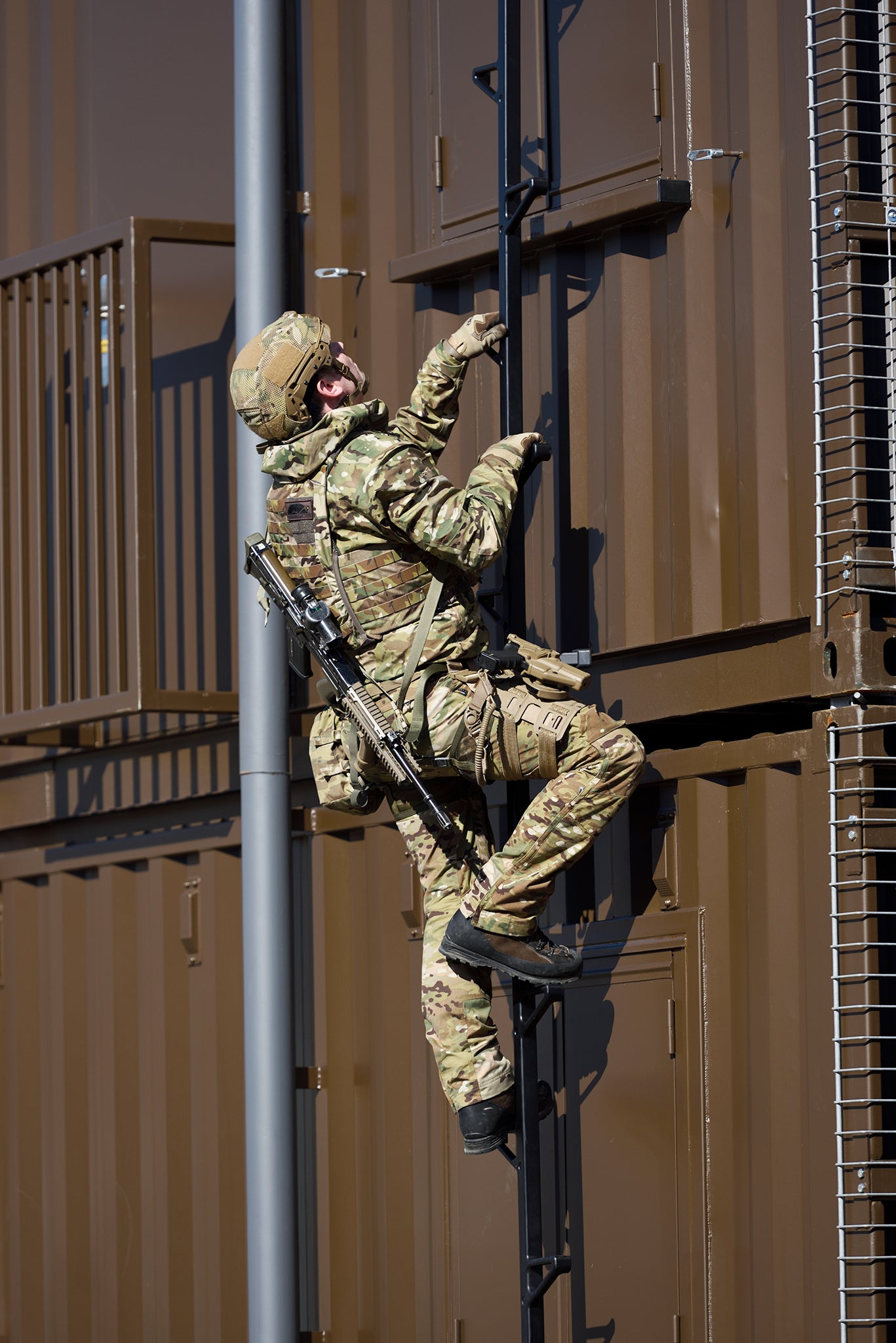

The Ultralight Pole Ladder (UPL) is REBS's latest single stile ladder which is lighter, easier to stack and carry, and stronger.  Each UPL section is 1.7m and is moulded using the latest in carbon fibre technology.  The system can reach up to 11m when the top adapter, five sections of 1.7m, an optional single step and 1.5m Wire Ladder are all connected. The quick connectors and modular design make the system safe, fast and easy to assemble. By attaching the 1.5m Wire Ladder, an extra 1.5m of height can be gained whilst also keeping the lowest step closer to the ground. In marine environments, the Wire Ladder also provides increased operational safety as the boarding craft will not be able to knock the ladder off its hold when riding on the waves. Climbing comfort and efficiency is taken into consideration with rubber tipped standoffs which provide good space for hands and feet.

System Overview:

  • Ultralight Pole Ladder
  • Tactical Hook 7" and 10"
  • Tactical Dual Hook 6.8"
  • Single Step
  • Top Adapter
  • Wire Ladder 1.5m

Product Name Product Code Weight NSN Code
REBS UPL HKBE008007 1.5kg 5440-99-364-1840
REBS UPL 7 Inch Hook Package HKBE000148 - -
REBS UPL 10 Inch Hook Package HKBE000149 - -
REBS UPL Dual Package HKBE000150 - -

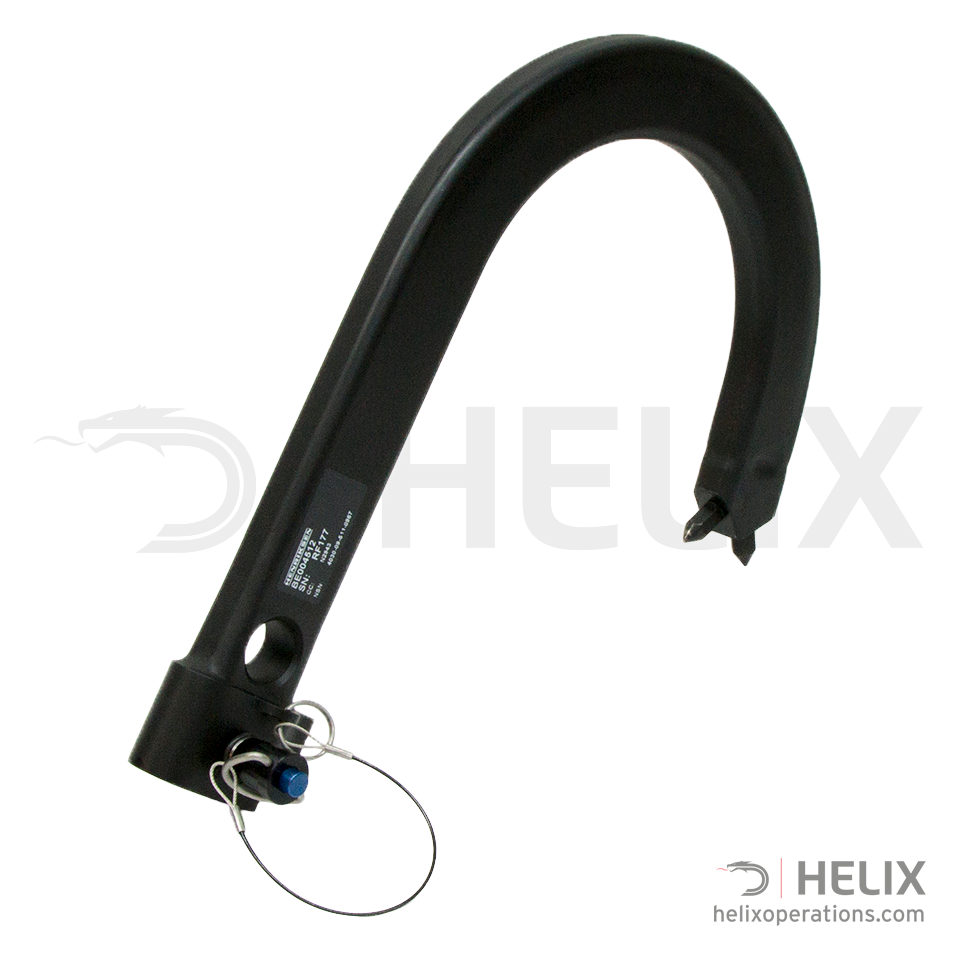

REBS Tactical Hook 7 Inch HKBE004512
5340-99-982-0454

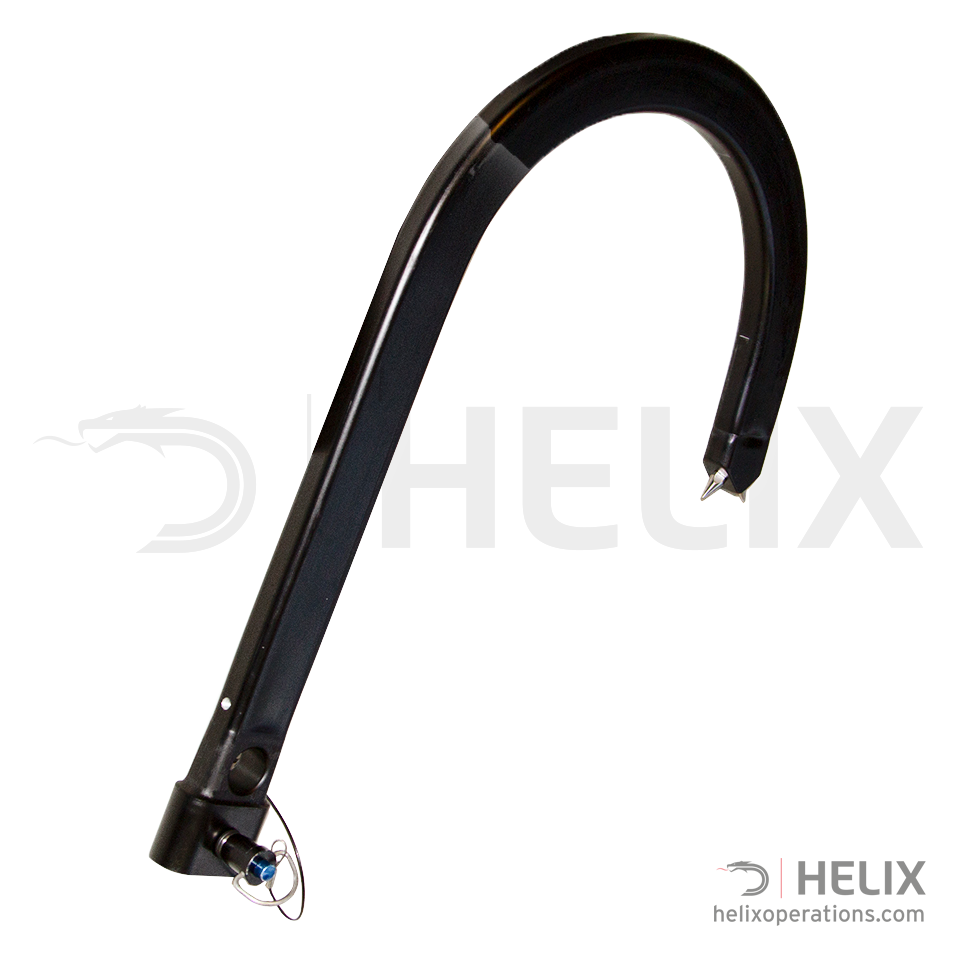

REBS Tactical Hook 10 Inch HKBE005746
5340-99-156-8368

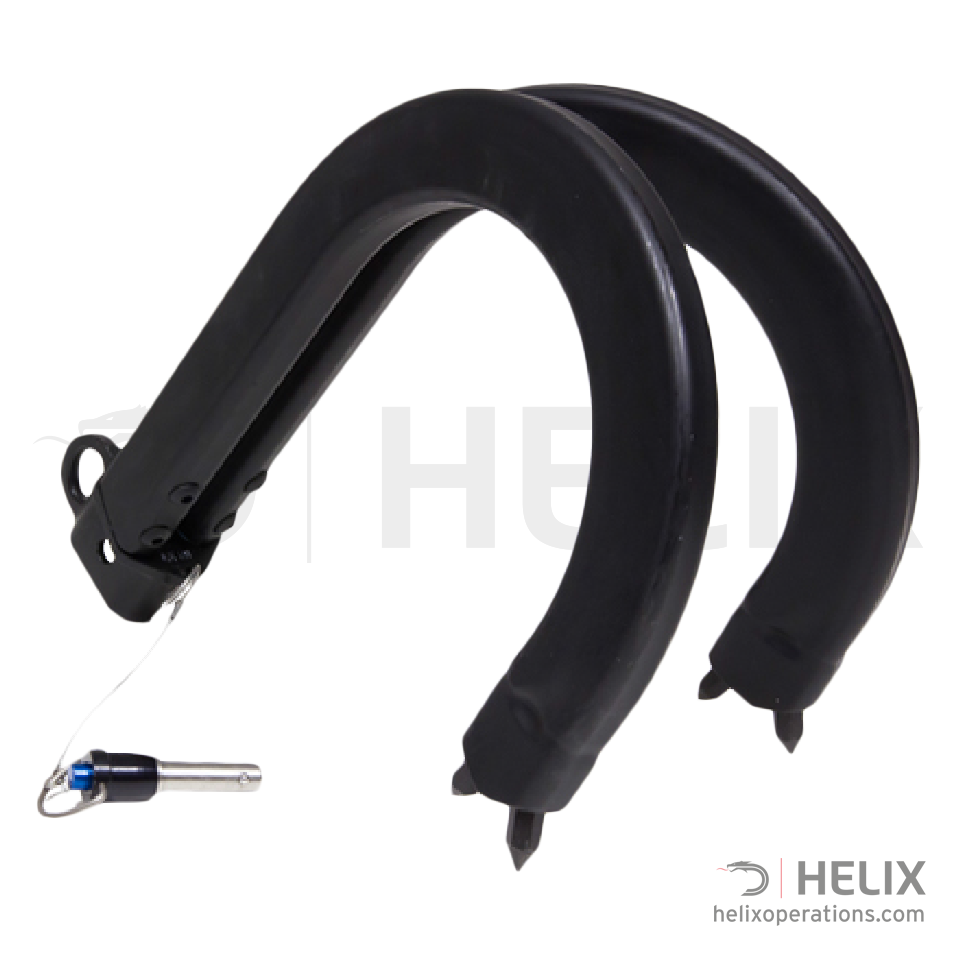

REBS Tactical Dual Hook 6.8 Inch HKBE004514
5340-99-279-9746

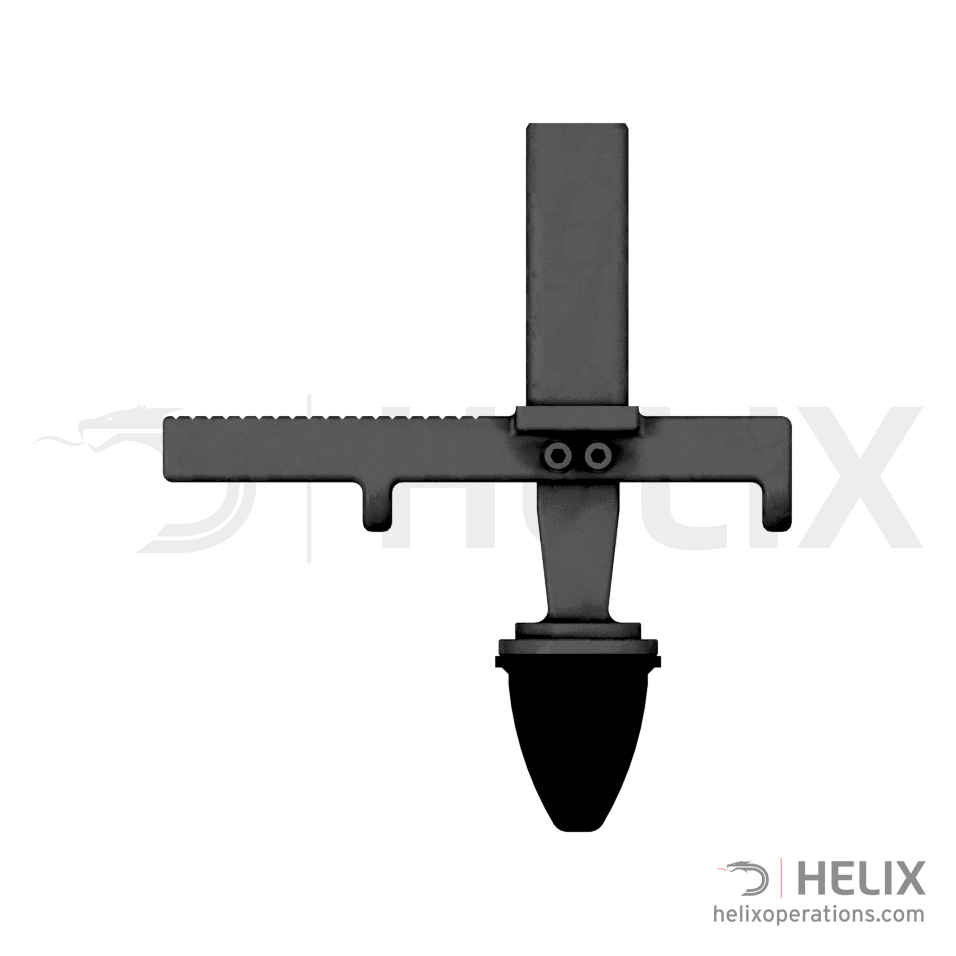

REBS Single Step HKBE00034
5440-99-349-7060

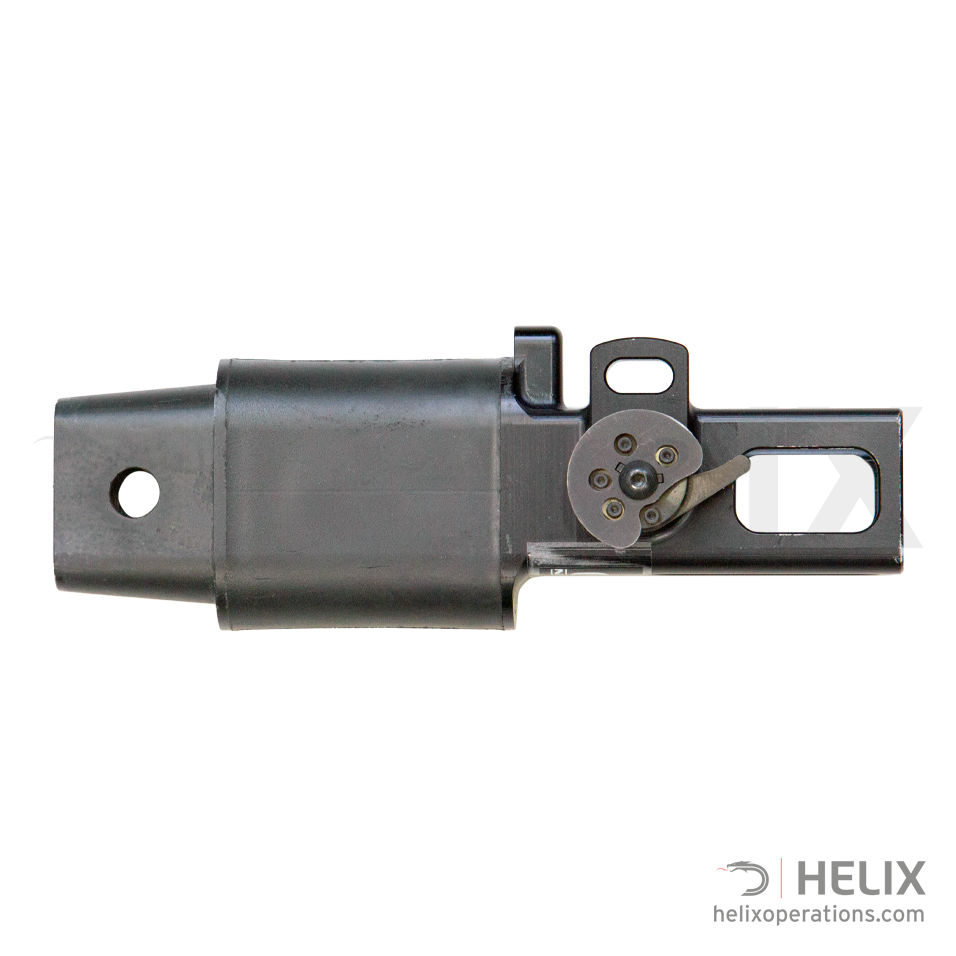

REBS Top Adapter HKBE008148
5340-99-616-0617

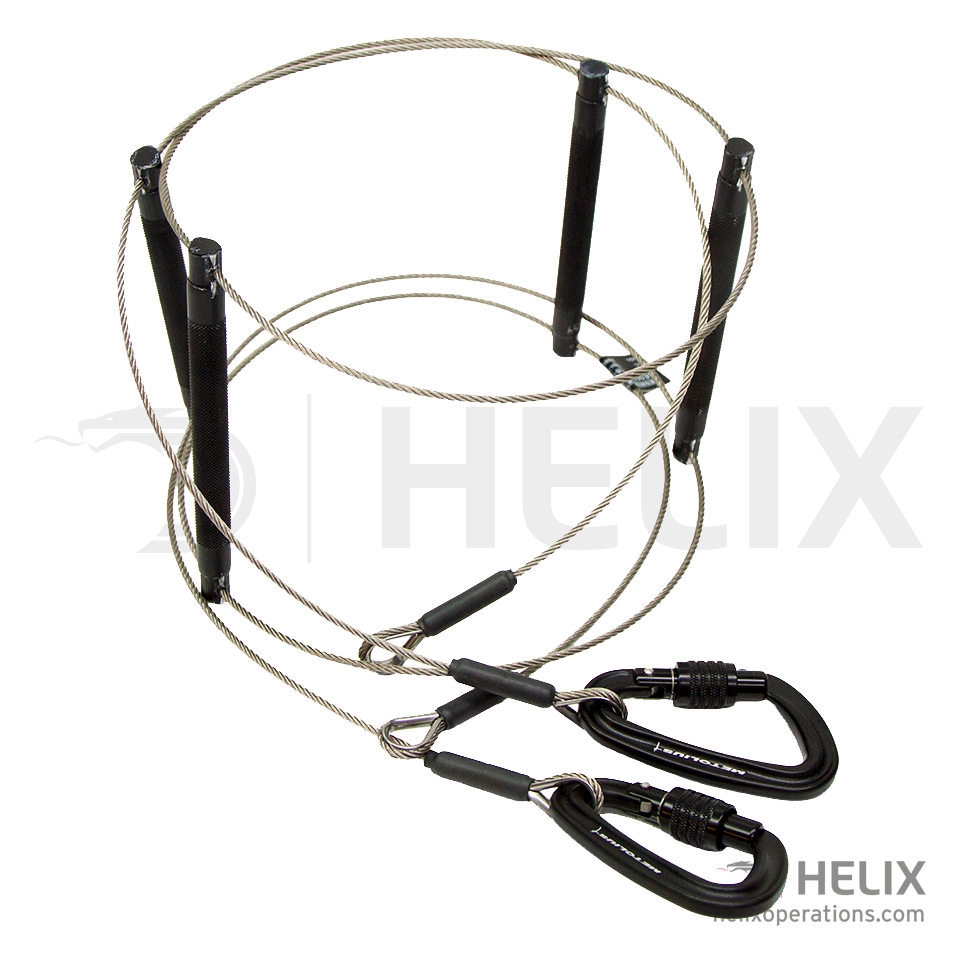

REBS Wire Ladder HKBE002460
4240-99-564-0999

1 / 3

Features

Easy to carry and stack meaning the ladder can be easily transported and built up to a required height.

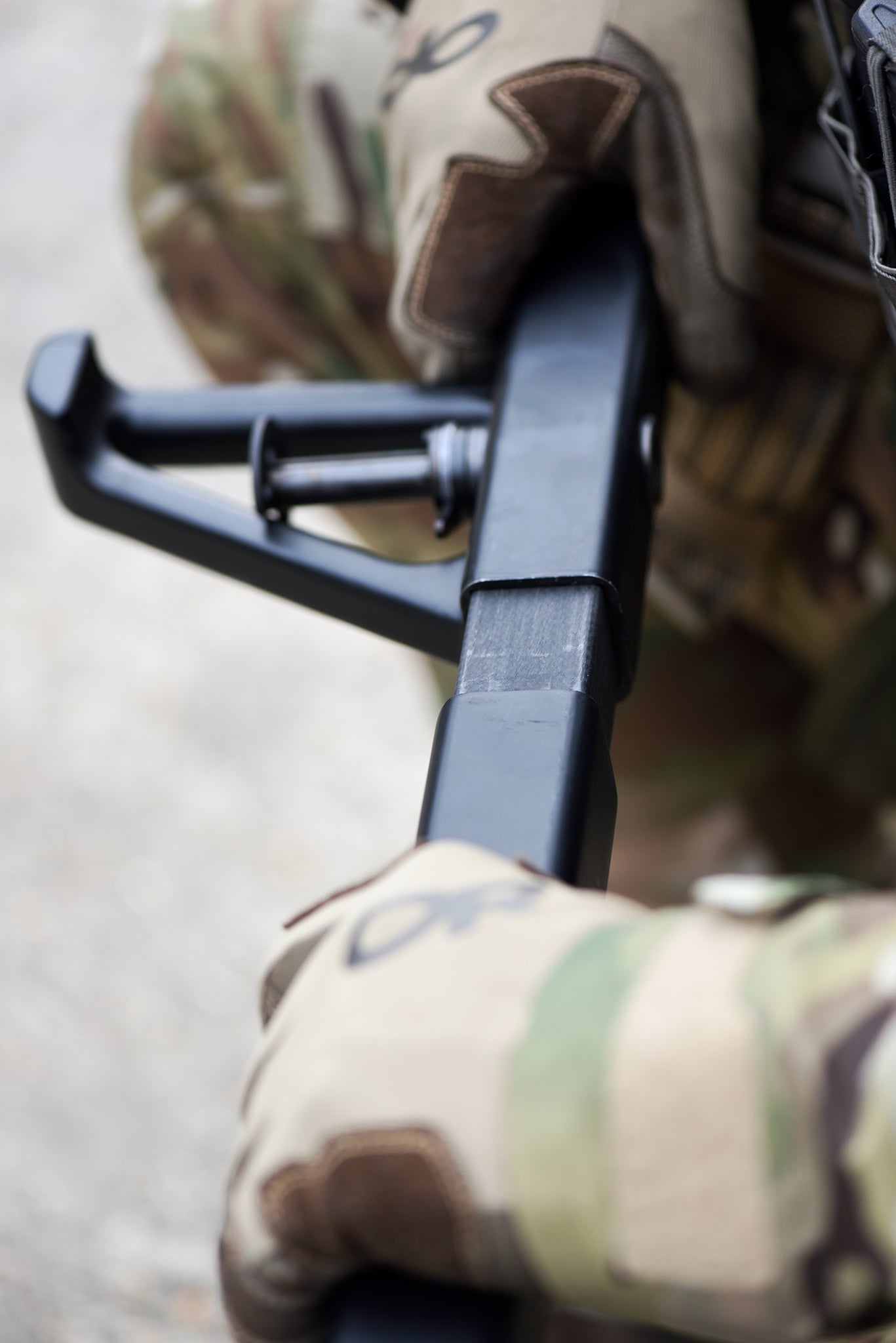

The connecters make it safe, fast and easy to assemble to get the right length required for the task.

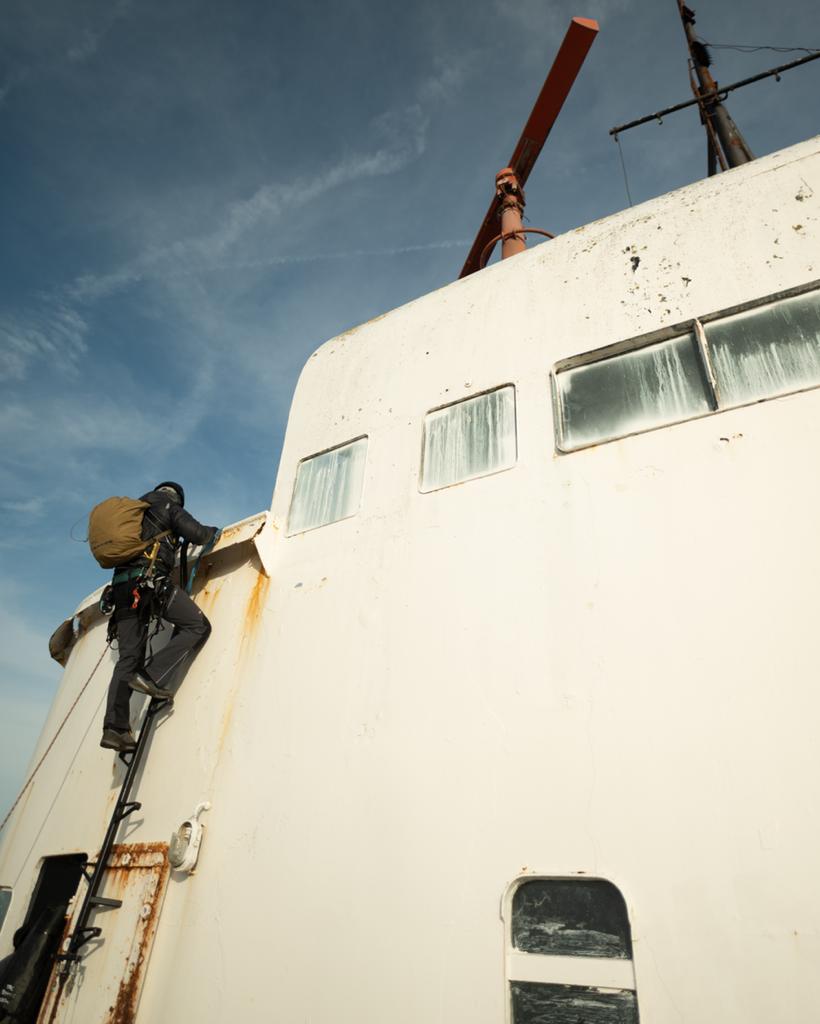

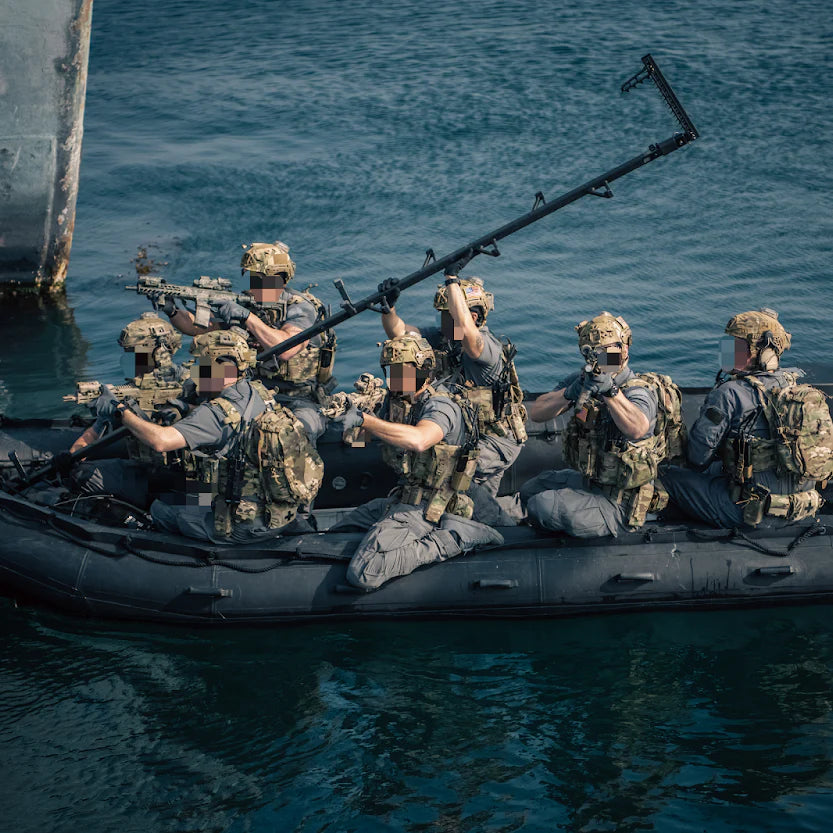

The Wire Ladder will provide additional reach as well as increased operational safety. The RIB/Boarding craft will not be able to knock the ladder off its hold when it is riding over waves or choppy water.

Can be used in Marine Environments

The Wire Ladder will provide additional reach as well as increased operational safety. The RIB/Boarding craft will not be able to knock the ladder off its hold when it is riding over waves or choppy water.

FIX-LITE SINLAD single ladders can be made according to the specific needs resulting from pre-defined scenarios where using sectional ladders is time consuming.

The best example is attacking hijacked airplanes or hostage rescue operations. Single ladders can be connected together by Dual ladder connectors for faster entry of larger assault teams. Custom-made lengths from 1.4 to 5.0 m by 0.3 m.
