In detail

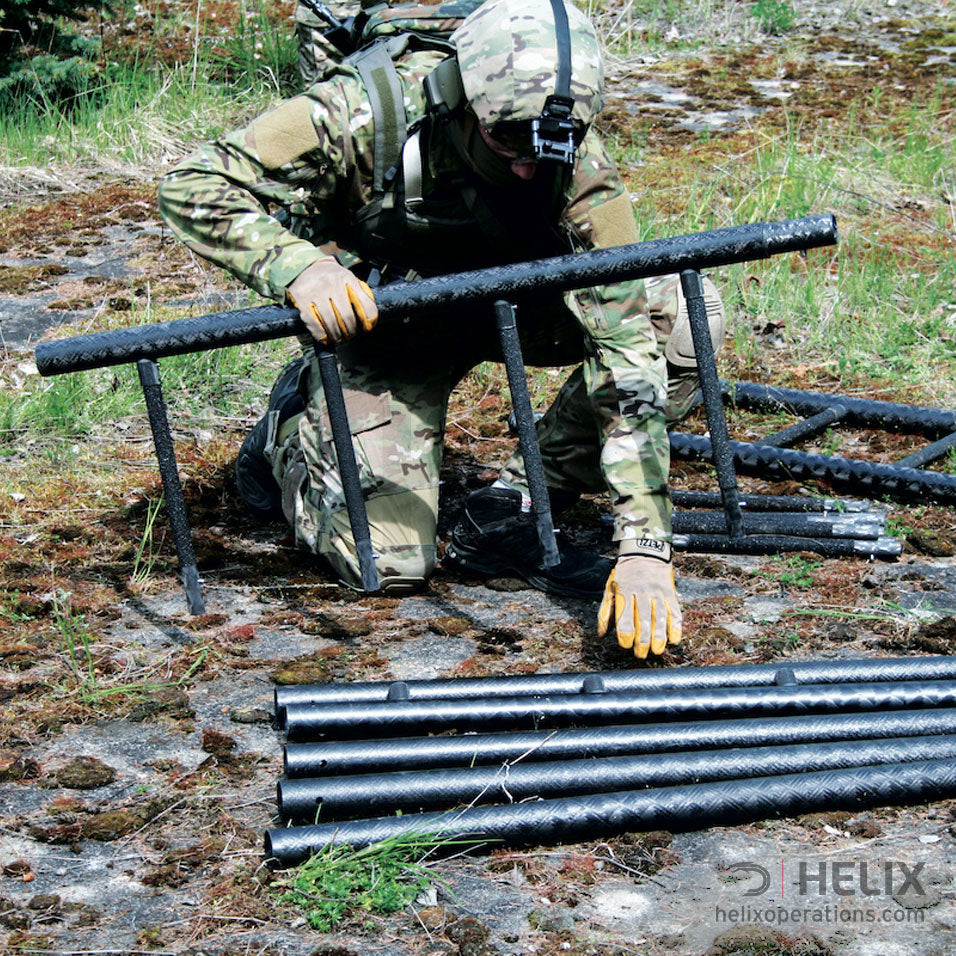

The HQH Ladcarb® is a modular tactical ladder system built around two single rails and detachable rungs, allowing the system to be configured for different access requirements.

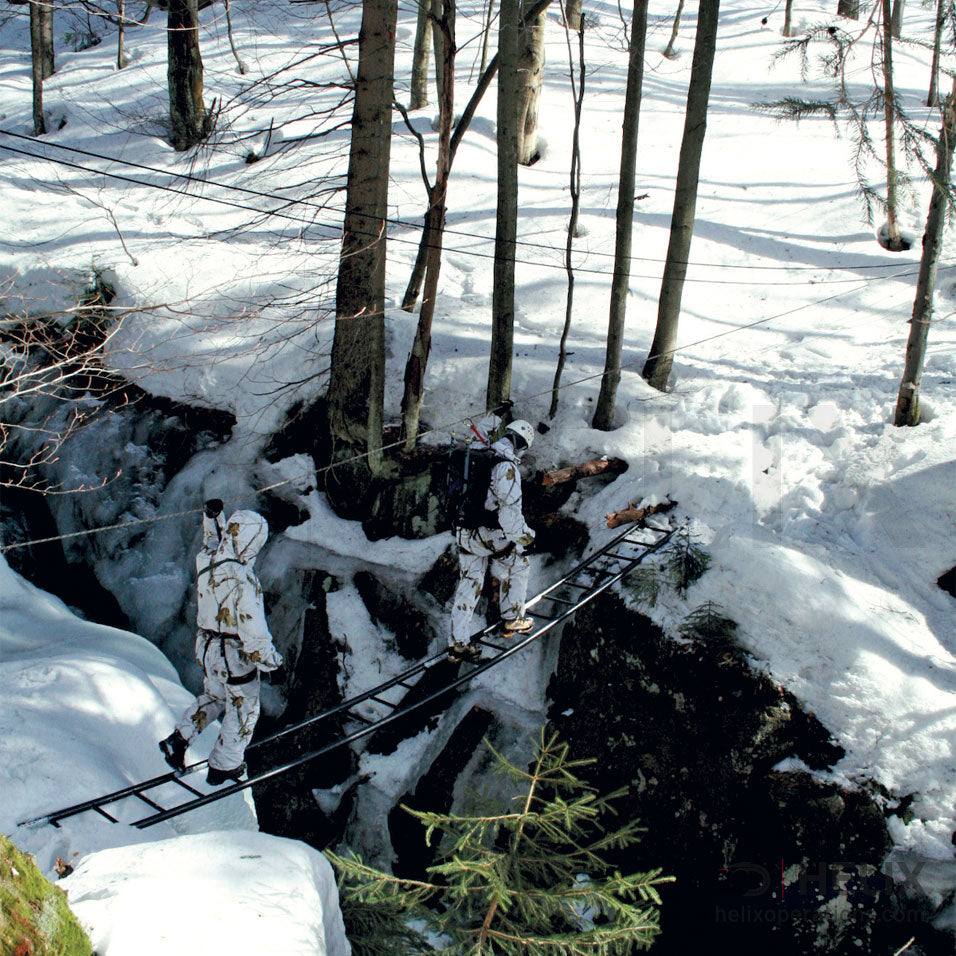

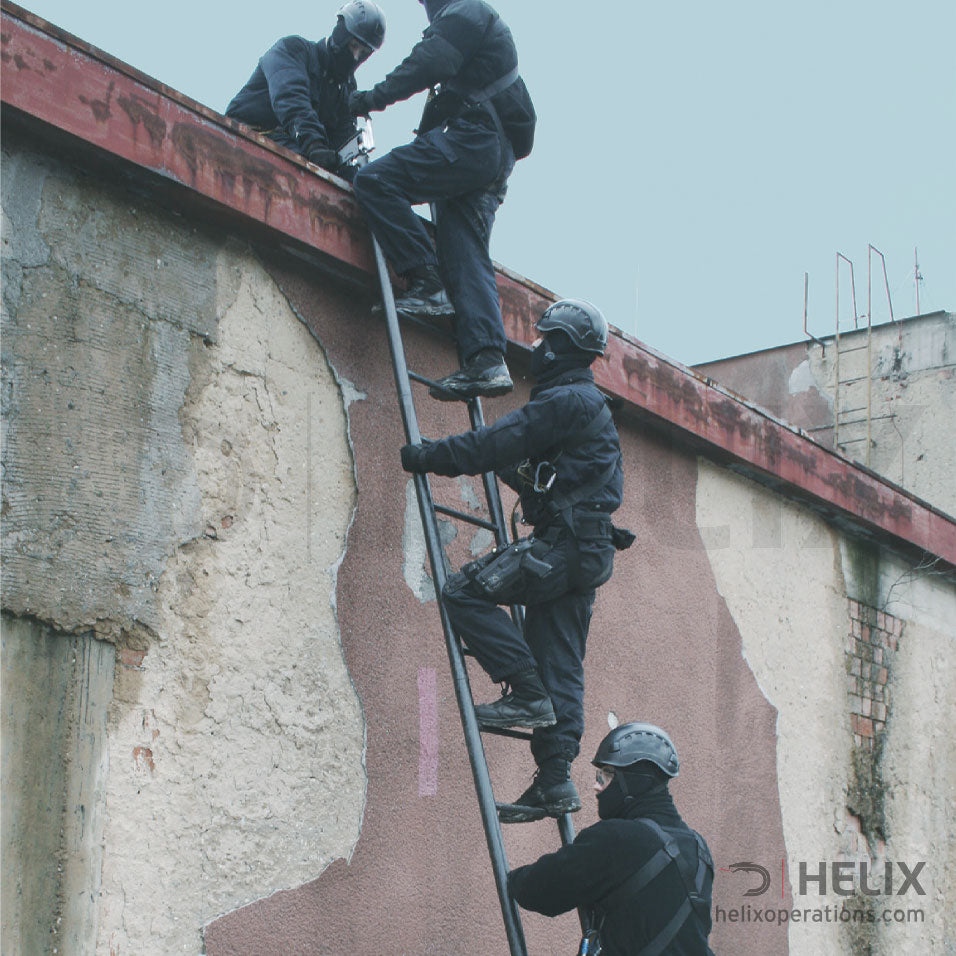

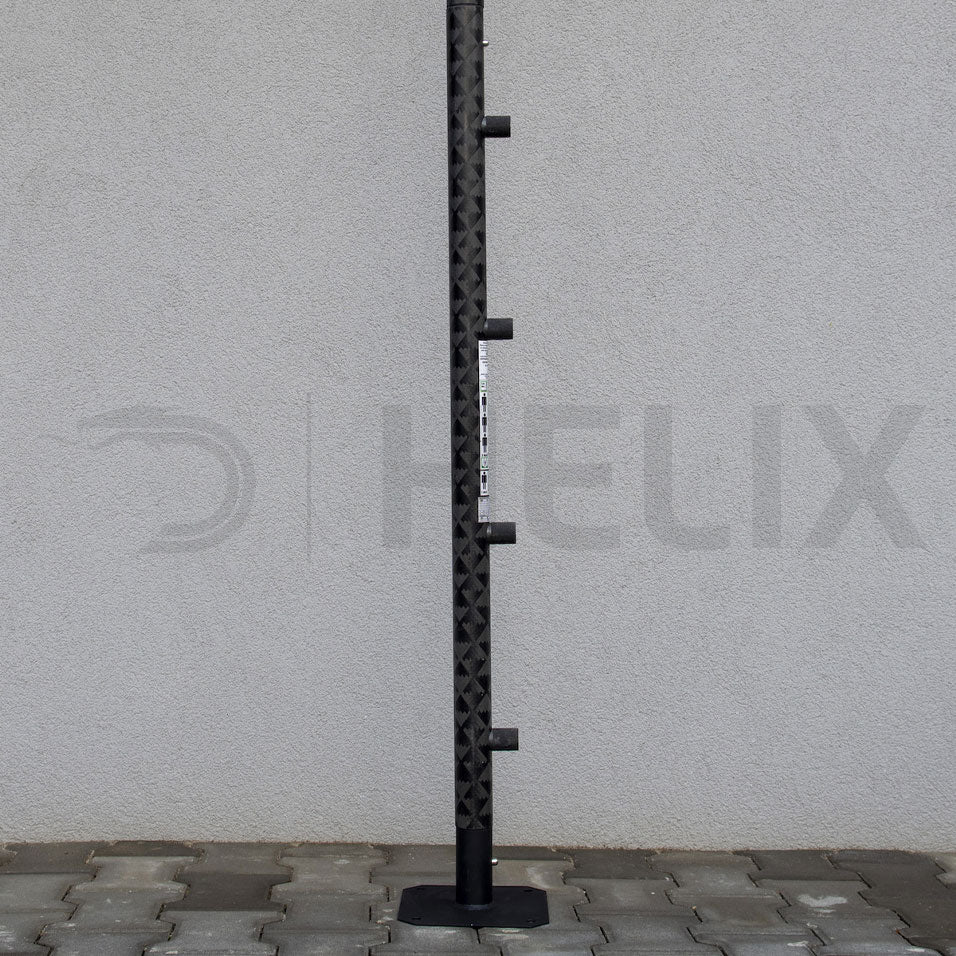

The rails can be connected and used as a multi-purpose pole, while the ladder sections can be assembled into a leaning ladder, hook ladder, or bridging system. Eight sections create a full ladder setup, while six sections can be configured as a bridge capable of supporting loads up to 200kg.

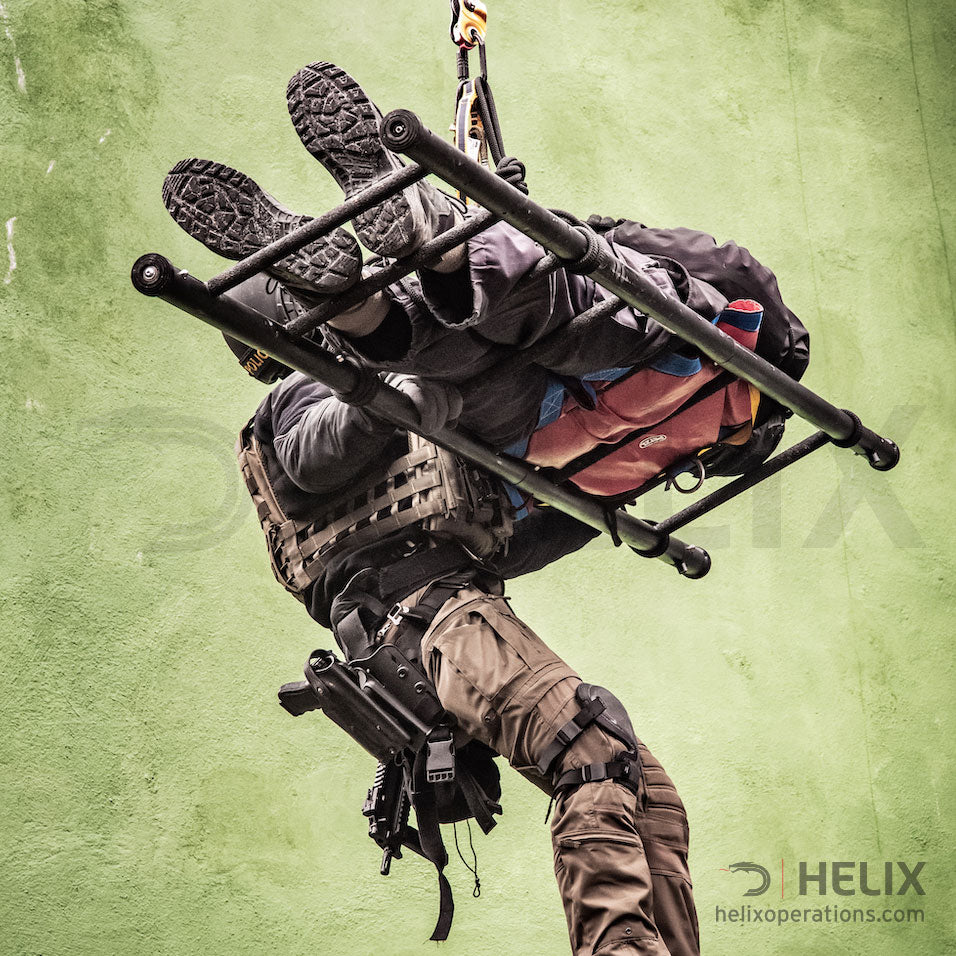

Each anti-slip rung is rated to 500kg, providing stable footing during rescue and casualty extraction work.

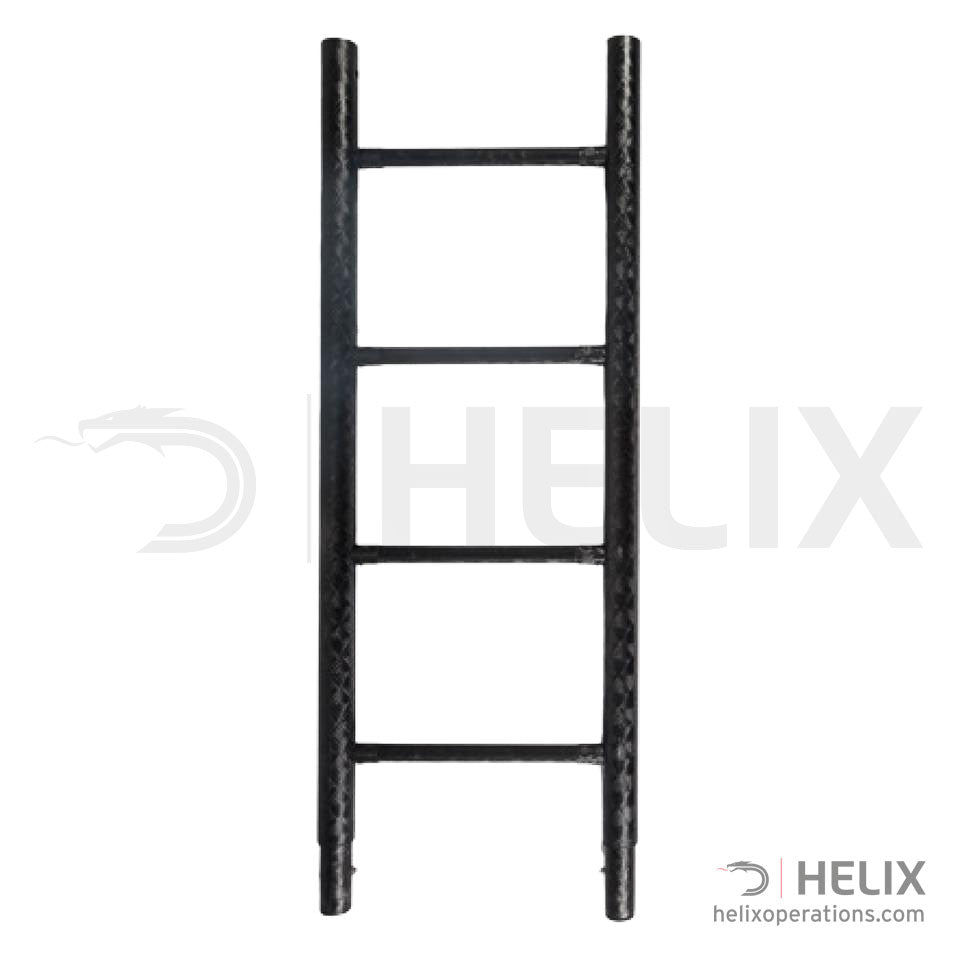

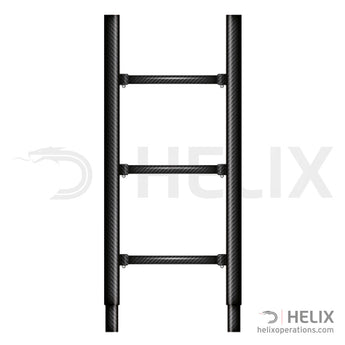

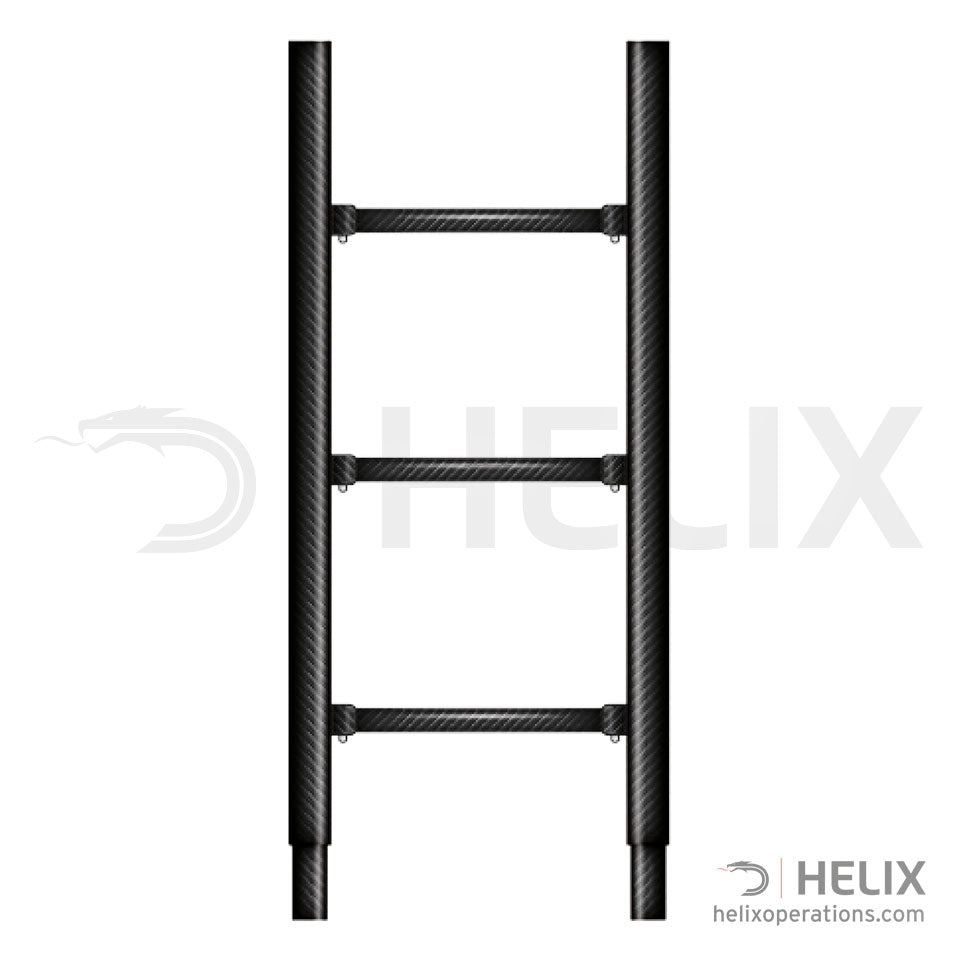

The standard 4.6m ladder set consists of four sections that break down into individual components for transport and storage. Each section measures 1.22m in length and weighs 2.8kg, allowing the system to be carried and deployed by a single operator.
The LDC is supplied with foam-filled sections to provide neutral buoyancy during maritime operations. When in the water, the system sits just below the surface to reduce visual detection during movement and boarding operations.
Compatible accessories include:
• Tactical hooks
• Window breaking tools
• Stand-off devices
• Evacuation kits
• REBS tactical hooks
| Product Name | Product Code | Max Length (m) | Weight (kg) | Step Spacing (mm) | Inner Width (mm) |
|---|---|---|---|---|---|
| HQH Ladcarb LDC 4.6m Standard System with Carry Bag | HQCL-LDC-CO-460-215-S / HQCL-LCB-CO-144-215-S | 4.6 | 12.5 | 280 | 355 |
| HQH Ladcarb LDC 1.2m Section | CL-LDC-SE-120-2020-S | - | - | - | |
| HQH Ladcarb LDC including Top And Bottom Endings | HKBE000114 | 4.6 | 12.5 | 280 | 355 |
| HQH Ladcarb Tactical Urban Hook AT (Titanium) v2 | HQCL-HAT-CO-034-221-S | - | - | - | |
| HQH Ladcarb Universal Tactical Hook Bt (Titanium) | HQCL-HBT-CO-020-215-S | - | - | - | |
| Raptor Head | HQCL-RAA-CO-000-219-S | - | - | - | |
| Window Breaking Head | HQCL-WBH-CO-000-215-S | - | - | - | |
| Window Breaking Plate-Lfl | HQCL-WBP-CO-001-215-S | - | - | - | |
| Window-Breaking Plate Carrying Bag | HQCL-WPB-CO-001-217-S | - | - | - | |

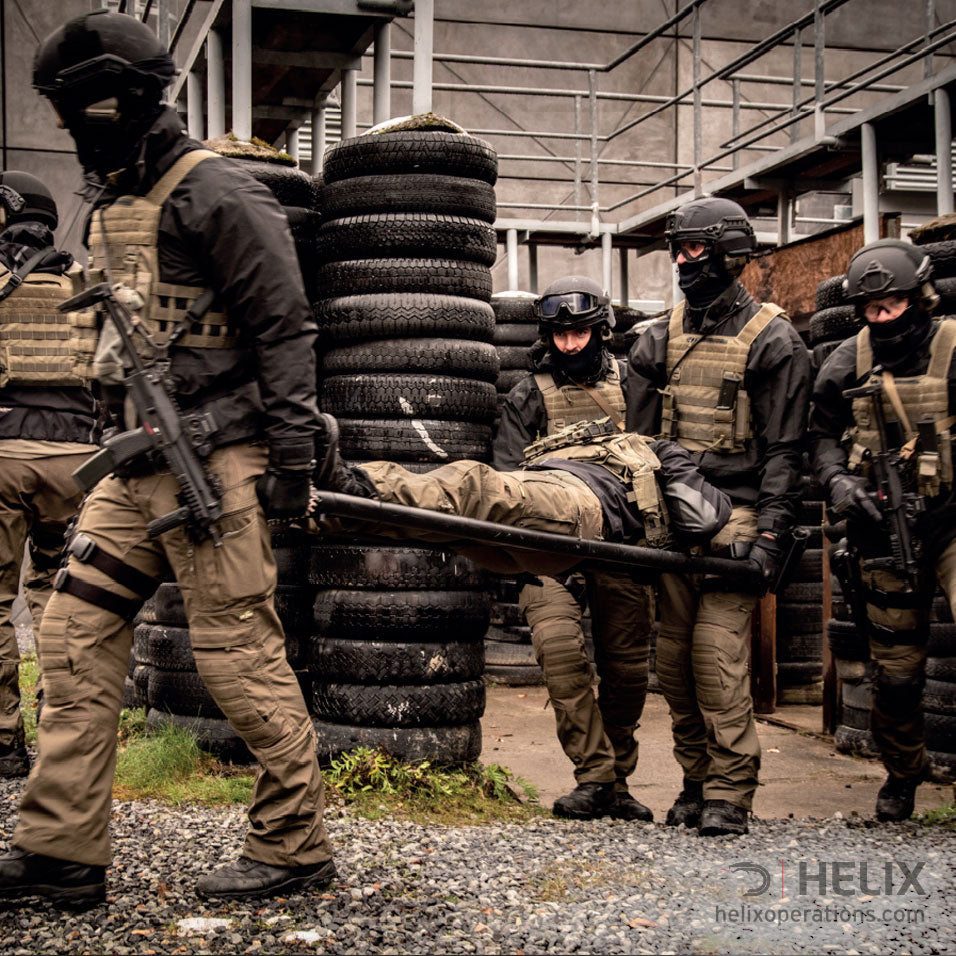

| Rescue/Stretcher Conversion Kit | HQCL-REC-CO-000-215-S | - | - | - | |
| Anti-Slip Top Ending | HQCL-REC-CO-000-215-S | - | - | - | |
| Anti-Slip Bottom Ending | HQCL-BPE-CO-000-215-S | - | - | - | |
| HQH Ladcarb Flexi Element for REBS Tactical Hooks | HKBE000266 | - | - | - | |
| Mobile Stand-Off Device with 150mm Extender | CL-MSC-CO-000-215-S/HQCL-EXM-CO-015-215-S | - | - | - |
