In detail
The Shadow is a midsize, offset D shape carabiner that minimises weight when setting up rigging systems or anchoring heavy loads.
One of the new generation of DMM steel carabiners that uses the latest hot forging techniques to create a lightweight, strong steel carabiner with a modern feature set that includes a key-lock gate for snag free use, a barrel that can't be over tightened and taperlock nose for added strength.
The Shadow comes in two finishes; a black electrophoretic coating or a zinc galvanised plating. These finishes both provide excellent corrosion resistance that exceeds their requirements of the 24 hour corrosion test. The Steel Shadow Screwgate in black is one of three new generation DMM I-beam steel carabiners currently in service with the UK MOD.
| Product Name | Product Code | Colour | MBS (Major Axis) | MBS (Minor Axis) | MBS (Gate Open) | Dimensions | Weight | Certification | NSN Code |
|---|---|---|---|---|---|---|---|---|---|

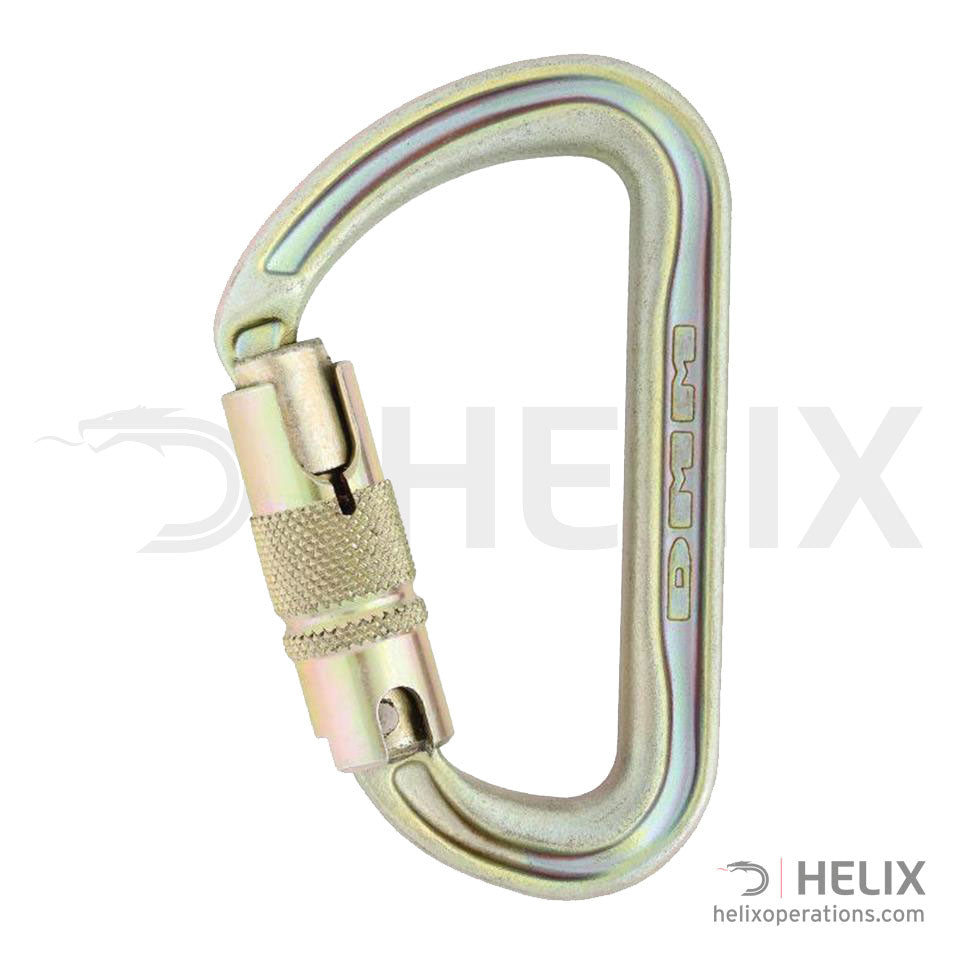

| I Beam Shadow | C302 | Light Gold | 40kN | 18kN | 20kN | 62 x 102mm | 151g | EN 362:2004 B, EN 12275:2013 B | |

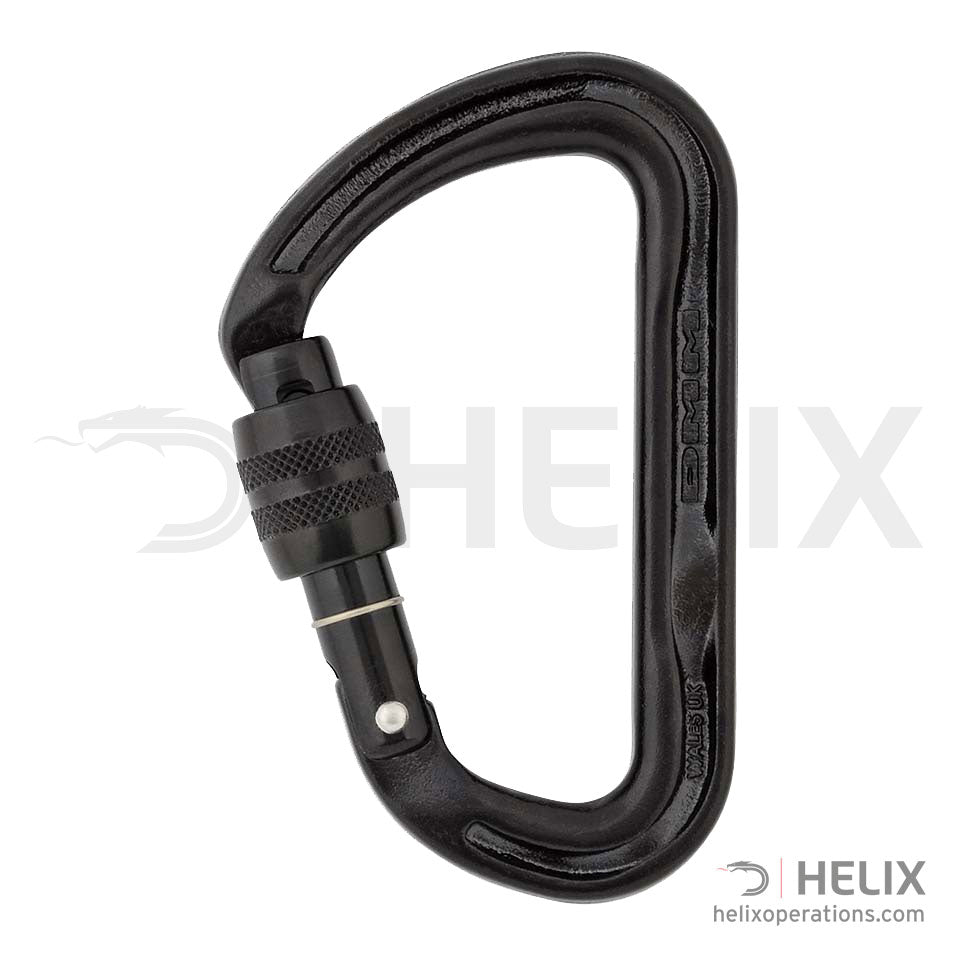

| I Beam Shadow | C302-EP | Black | 40kN | 18kN | 20kN | 62 x 102mm | 151g | EN 362:2004 B, EN 12275:2013 B | 8465-99-217-3345 |
