Lyon Obelisk Quadpod

Versatile tool for casualty evacuation.

Product Type: Obelisk Kit 1
Product Downloads
Documents N/A
Product Type

In detail

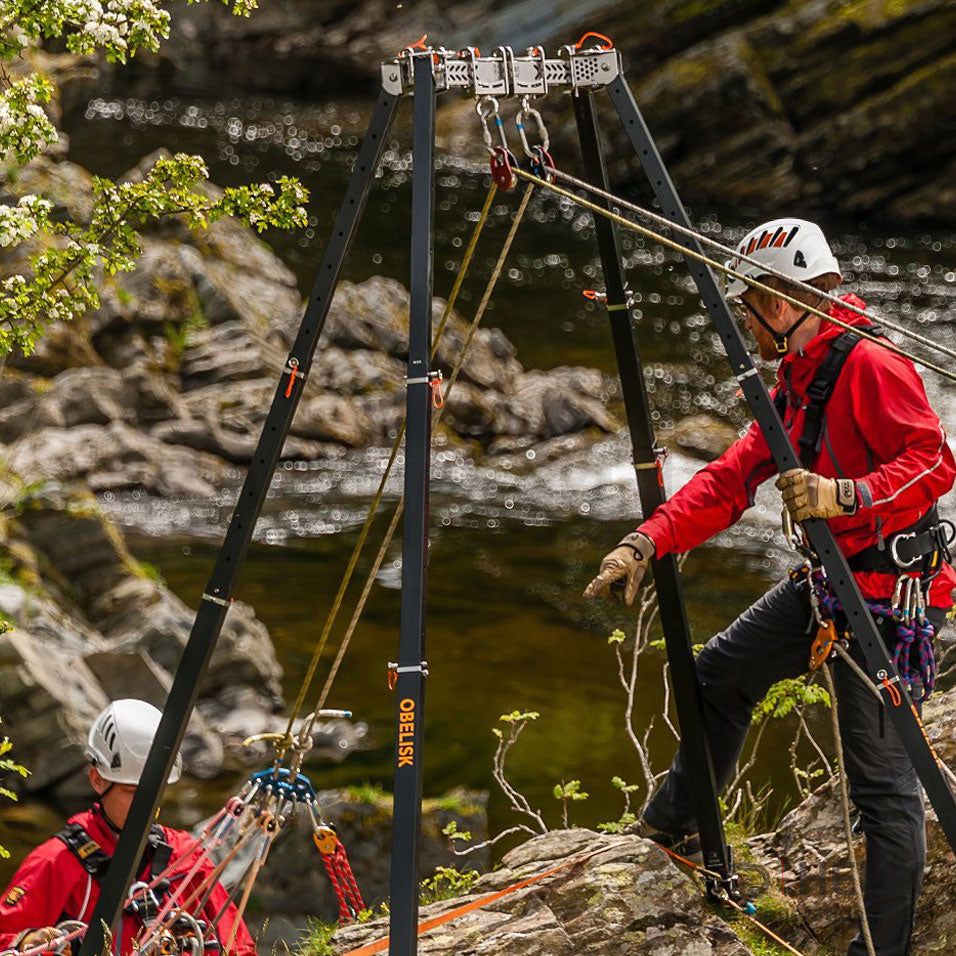

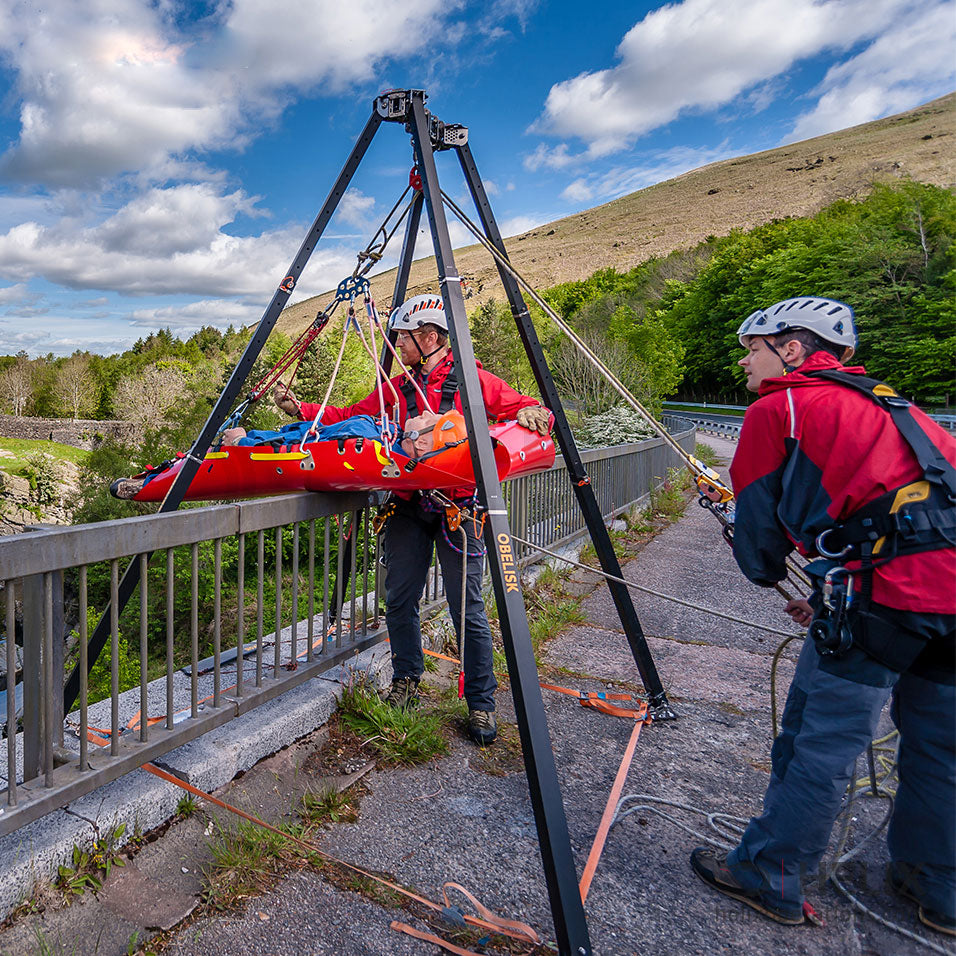

The Lyon Obelisk Quadpod has been designed for CASEVAC, hauling and lowering operations on steep, rough and remote terrain. It's many features and configurations make it a versatile tool for a variety of scenarios within rescue and emergency use.

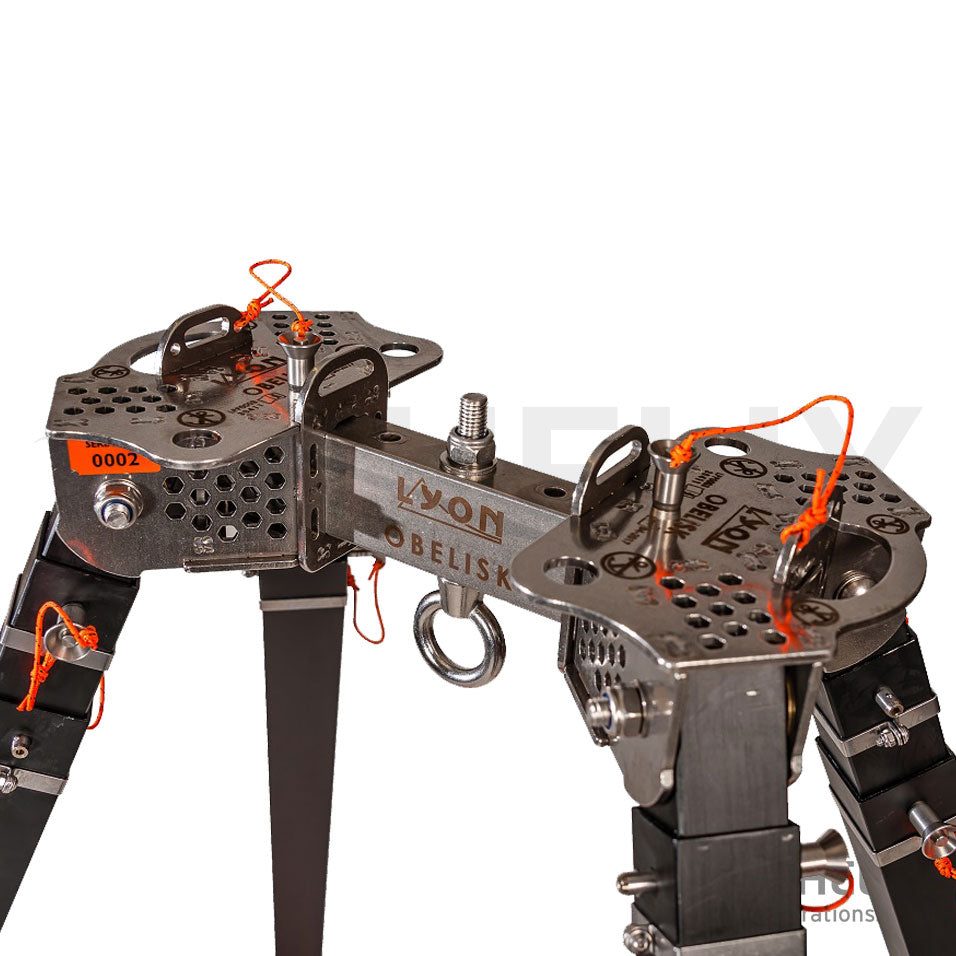

It is constructed from stainless steel and aluminium to give a combination of strength and lightweight. The Obelisk uses an adjustable length crosshead bar so that loads of different sizes can be manoeuvred through the legs making smooth edge transitions easier.

It features a multi-position main anchor point with option for a second anchor point to be fitted if required.

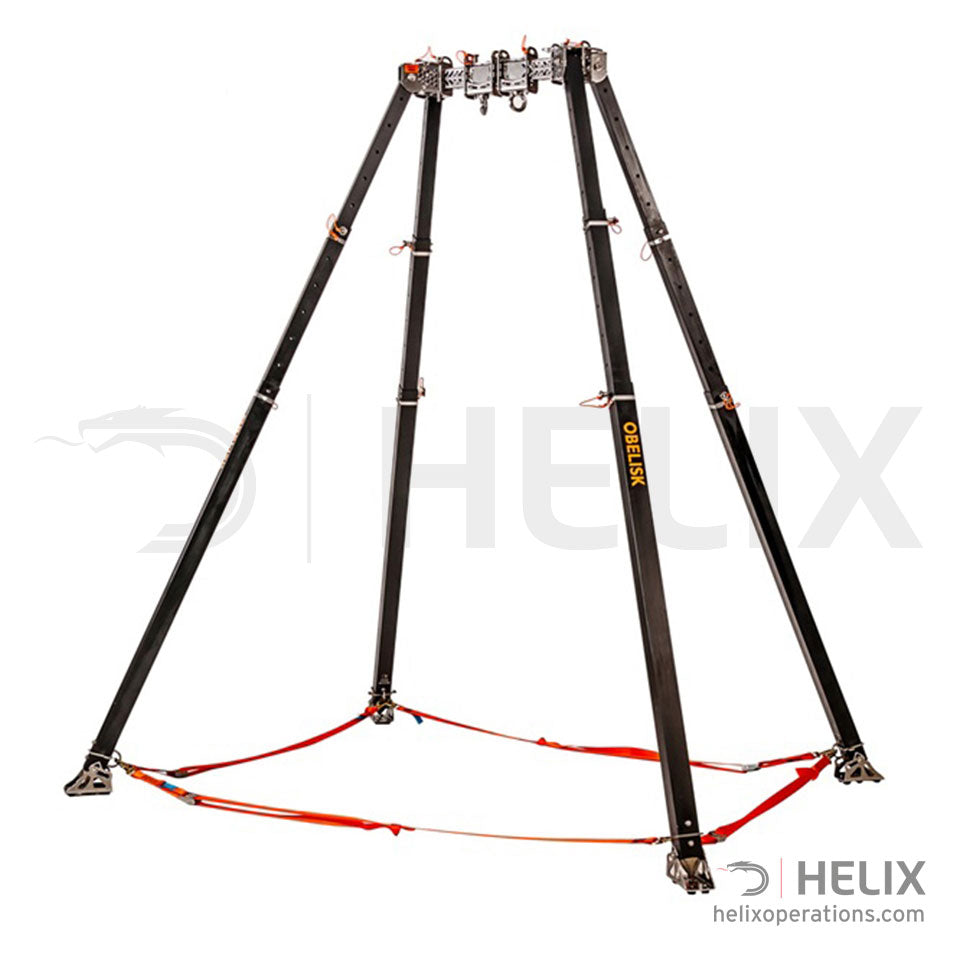

The Obelisk Quadpod is supplied with:
  • Two pairs of legs
  • 0.5m top beam
  • 1 x carriage (anchor point) for top beam
  • 4 x straps
There are two available versions of the QuadPod; one with a single carriage and another with dual carriages.
Product Name Product Code NSN Code
Lyon Obelisk - includes 0.5m Beam, Top Carriage, 50mm Pin, 80mm Pin and Strap Set LYLPP003
Lyon Obelisk - includes 0.5m Beam, Top Carriage, 50mm Pin, 80mm Pin and Strap Set in black with stainless Components shot blated to a satin finish LYLPP003 F
Lyon Obelisk with 2 Carriages LYLPP003-F(2CAR)
Lyon Obelisk with Single Carriage LYLPP0003-CARRIAGE
Lyon Obelisk Bag LYLPP003BAG
Lyon Obelisk Split Bag LYLPP003-SPLITBAG 3950-99-959-5182
Lyon Obelisk 0.3m Beam LYLPP003-BEAM0.3M
Lyon Obelisk 0.5m Beam LYLPP003-BEAM0.5M
Lyon Obelisk Carriage for Top Beam LYLPP003-CARRIAGE
Lyon Obelisk 50mm Pin LYLPP003-PIN50
Lyon Obelisk 80mm Pin LYLPP003-PIN80
Lyon Obelisk Strap set LYLPP003-STRAPS 4240-99-474-9180
