Maillon Standard Oval

Semi permanent anchor for connecting personal protective equipment.

Diameter: 8mm
Material: Galvanised Steel
Colour: Silver
Product Downloads
Diameter
Material
Colour: Silver

In detail

A maillon is a metal link which allows equipment to be threaded together in a more permanent manner than with a carabiner. Maillons have a threaded sleeve which tightens over a thread, as opposed to a hinged gate like a carabiner, making them stronger but more time consuming to attach and detach from the system. They offer greater versatility over carabiners as their different shapes and lack of hinged gates allow them to be used in multi-directional situations.

They are used primarily in climbing and caving systems to construct semi-permanent anchor points but can also be used for fastening harnesses with a dual attachment point.

The standard oval is available in either galvanised steel or stainless steel.



Product Name Product Code Colour Weight Diameter Material Breaking Load
MAILLON Standard Oval LYPPENZ08 Silver 77g 8mm Galvanised Steel 3500kg
MAILLON Standard Oval LYPPENZ08N Black 77g 8mm Galvanised Steel 3500kg
MAILLON Standard Oval LYPPENZ09 Silver 103g 9mm Galvanised Steel 4500kg
MAILLON Standard Oval LYPPENZ10 Silver 137g 10mm Galvanised Steel 5500kg

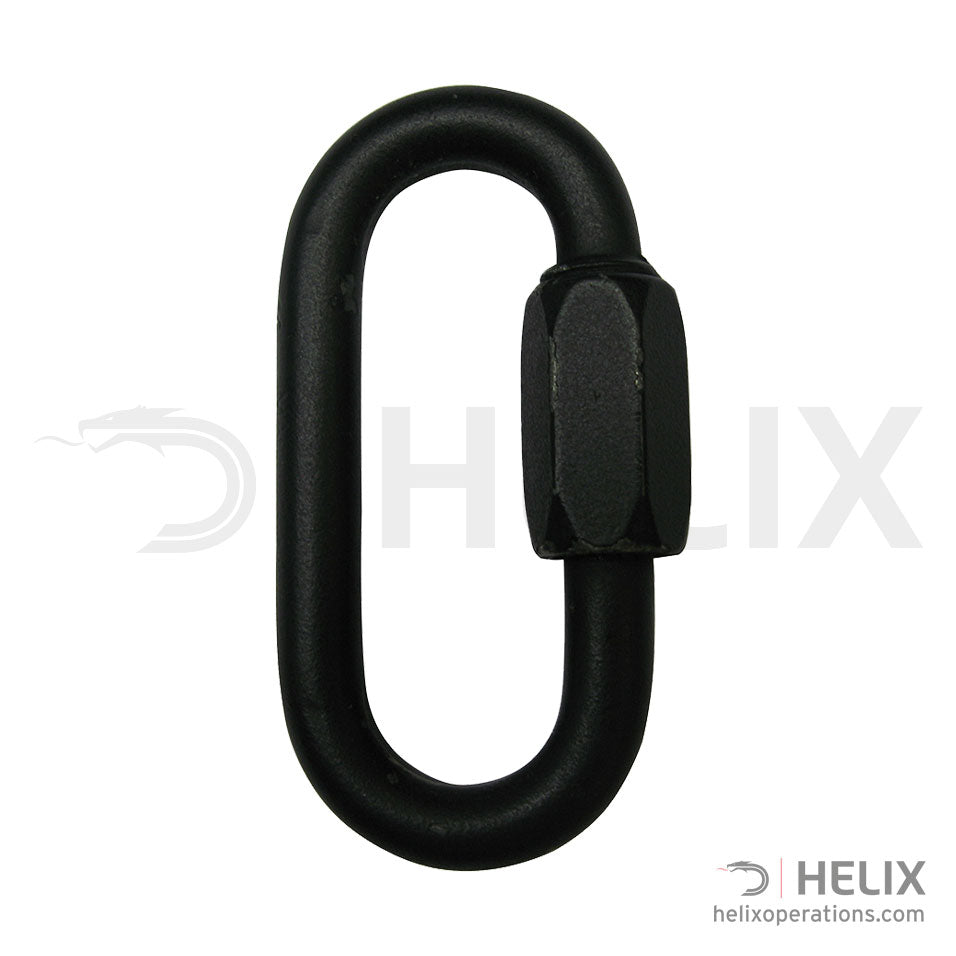

MAILLON Standard Oval LYPPENZ10N Black 137g 10mm Galvanised Steel 5500kg
MAILLON Standard Oval LYPPENI07 Silver 52g 7mm Stainless Steel 4500kg

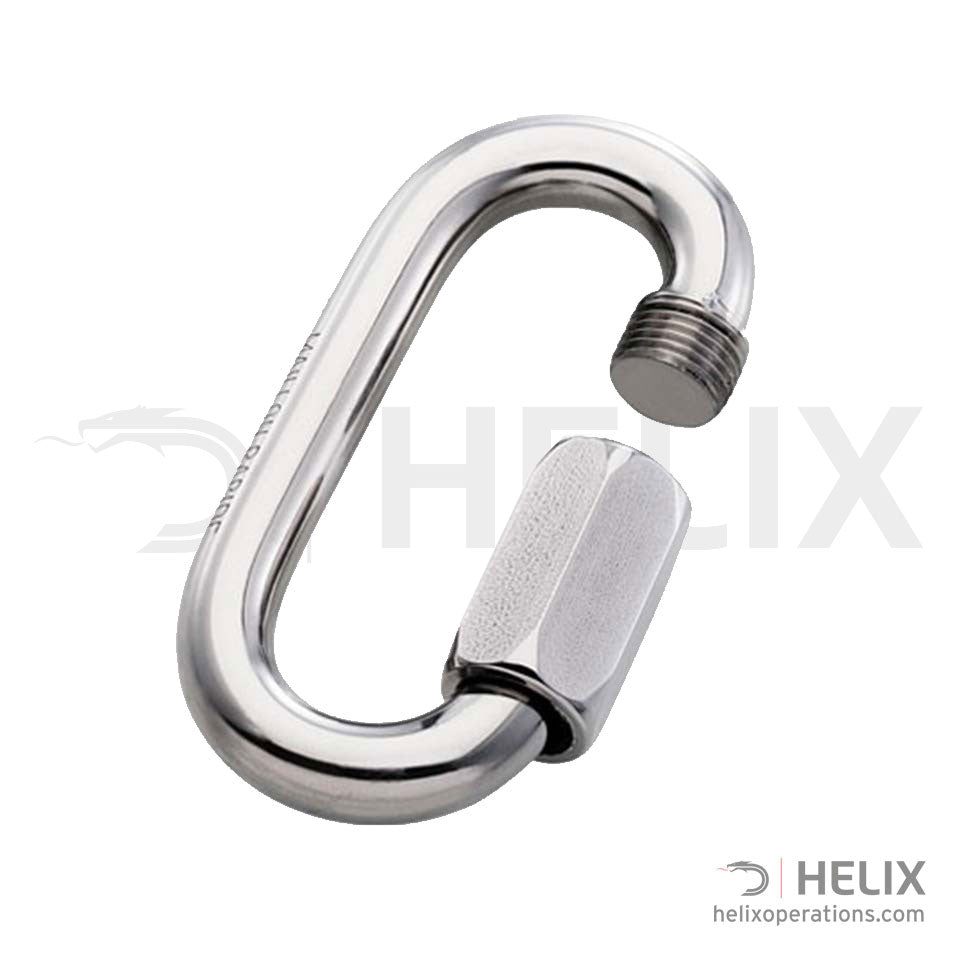

MAILLON Standard Oval LYPPENI08 Silver 79g 8mm Stainless Steel 5500kg
MAILLON Standard Oval LYPPENI10 Silver 141g 10mm Stainless Steel 9000kg
