Marlow SPIES Rope

Higher strength to accommodate a greater number of personnel with increased safety.

Diameter: 20mm
Length: 27.4m
Product Downloads
Diameter
Length

In detail

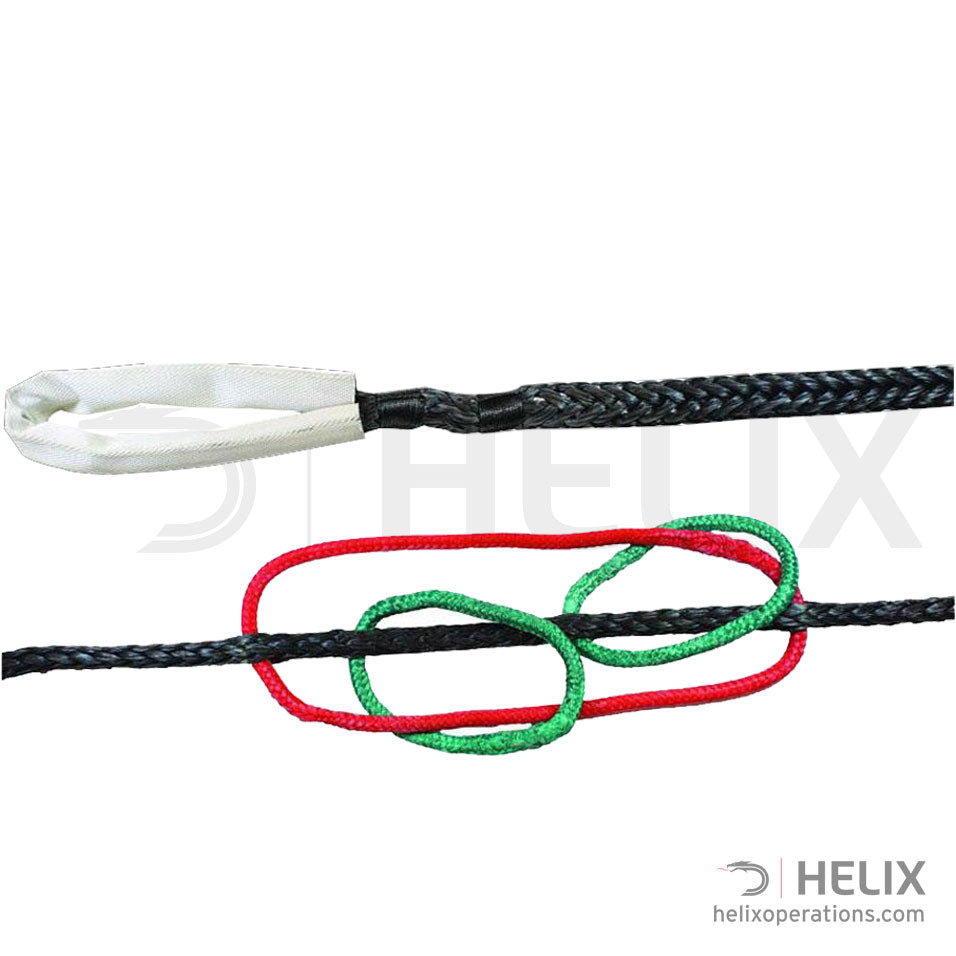

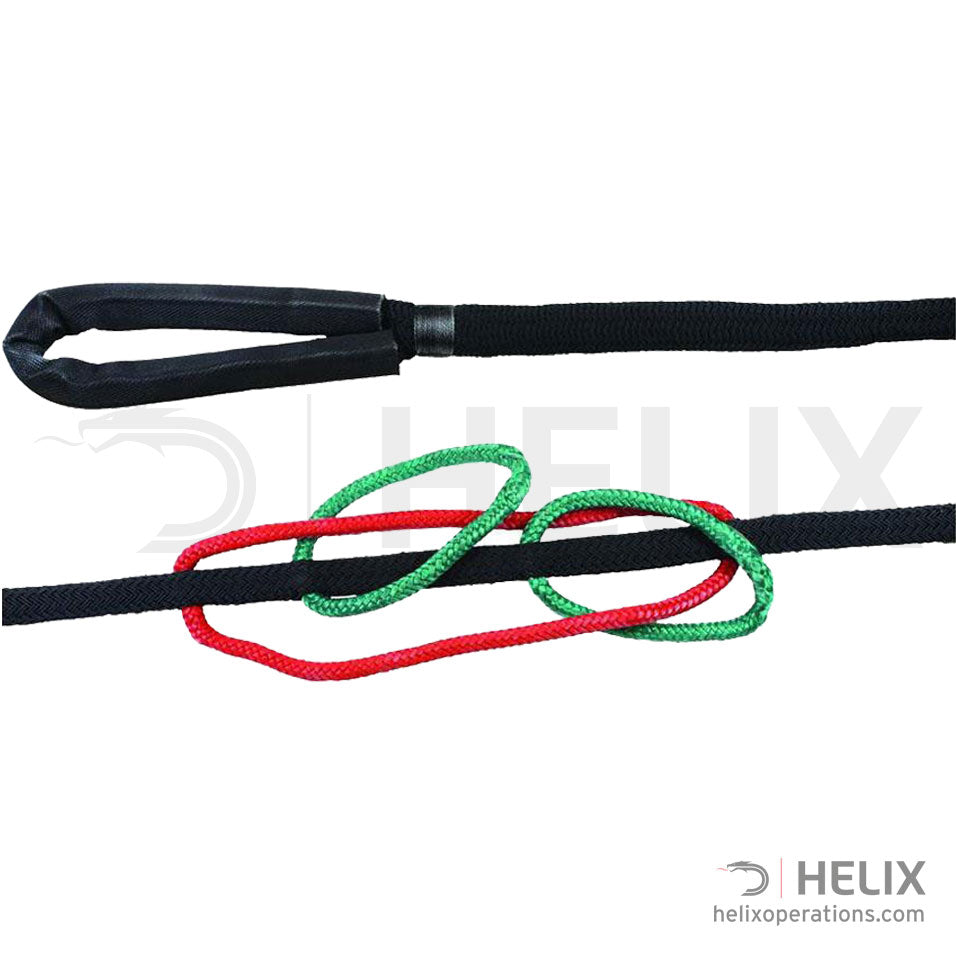

The SPIE system from Marlow has been designed for the transportation of a larger number of personnel for extraction and insertion in military and tactical operations. Higher strength accommodates a greater number of personnel (10 to 12 as standard), along with a unique 2 loop integrated colour coded safety system for all personnel.  The Loop system is manufactured using lightweight, high strength Dyneema, eliminating the need for heavy, bulky metal fittings.  The SPIE also has an additional yellow loop for easy retrieval.

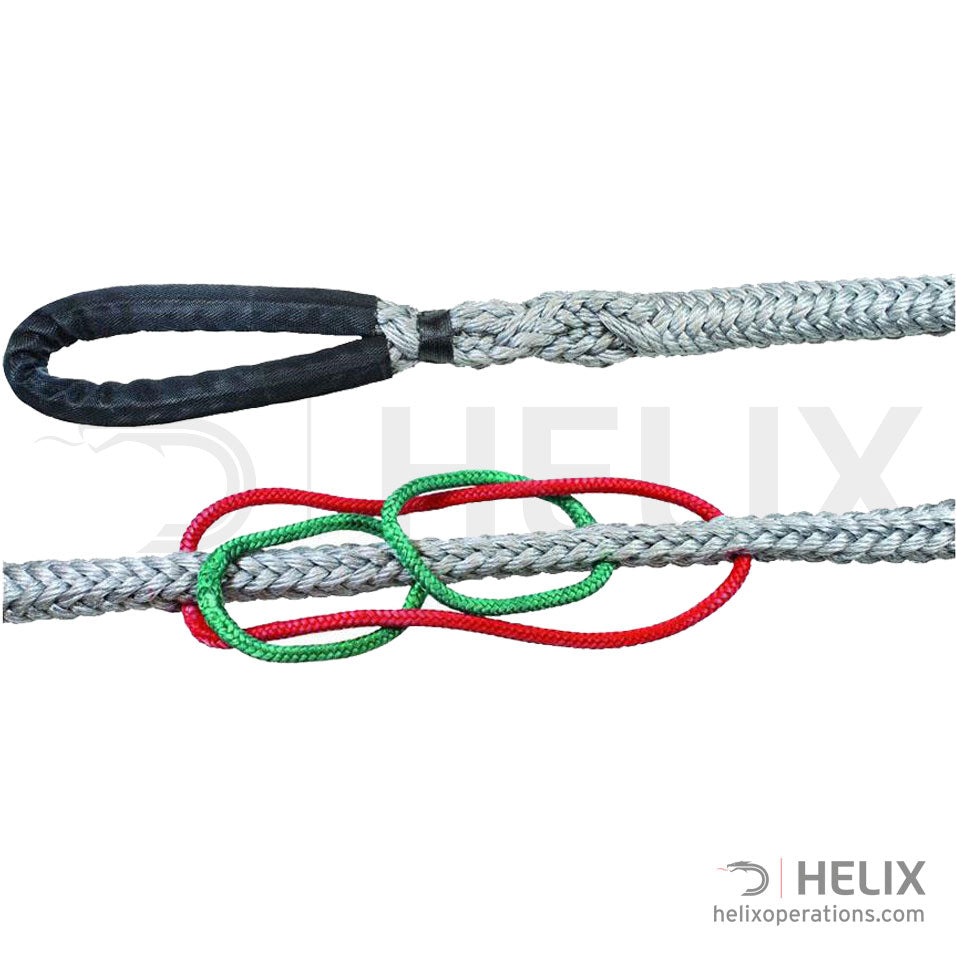

Available in the regular double braided polyester version, the WPX version is manufactured using lightweight, floating Polysteel and the DPX version offers the same advantages, but in higher strength Dyneema D12+.



Product Name Product Code Diameter Length Average Breakload
Marlow SPIES Rope MWTAU011 28mm 27.4m 15,500kg
Marlow SPIES Rope MWTAU014 28mm 40m 15,500kg
Marlow SPIES Rope MWTAU010 20mm 27.4m 41,000kg
Marlow SPIES Rope MWTAU012 20mm 40m 41,000kg
Marlow SPIES Rope MWTAU016 30mm 18.3m 16,900kg
Marlow SPIES Rope MWTAU015 30mm 27.4m 16,900kg
Marlow SPIES Rope MWTAU013 30mm 40m 16,900kg
