In detail

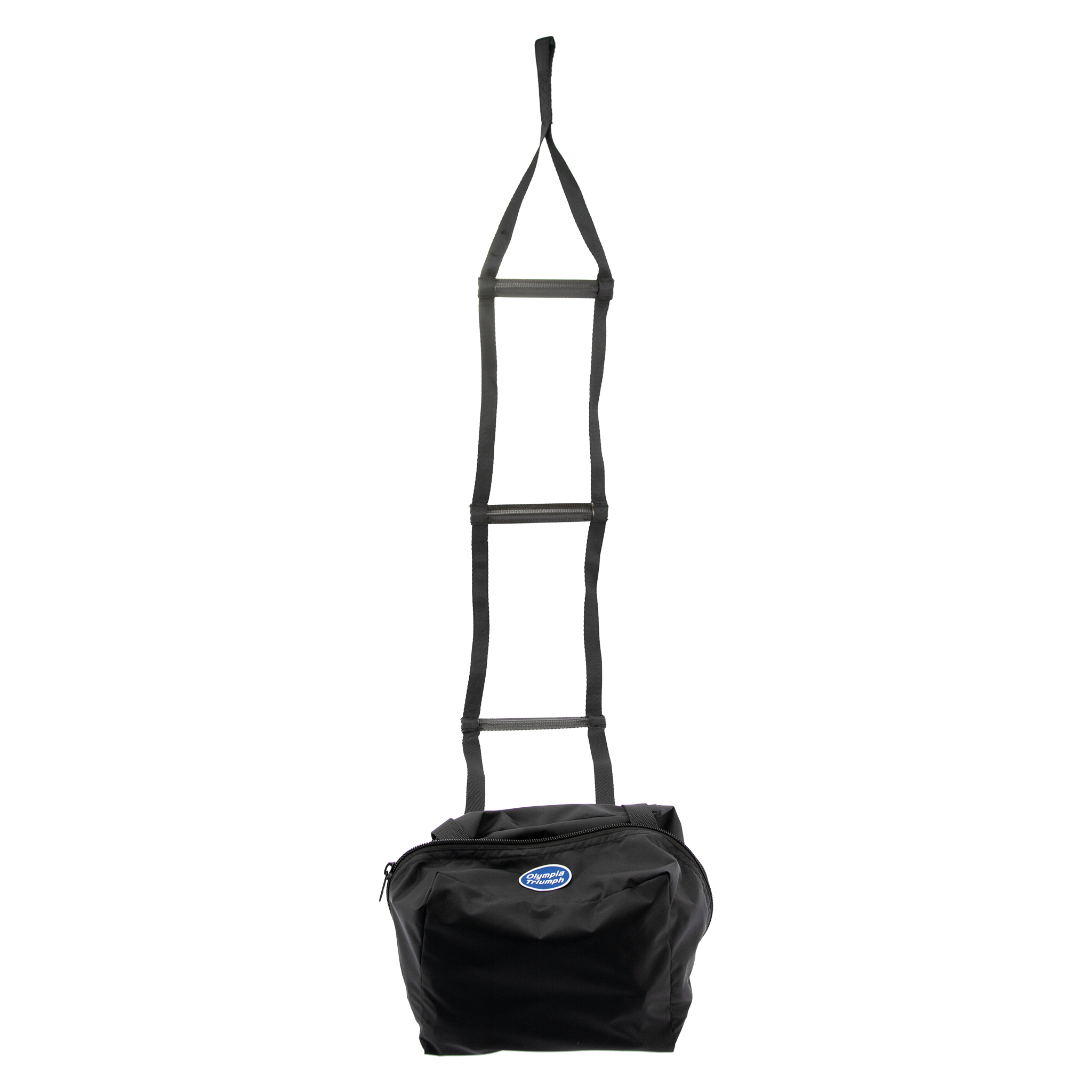

The Fibrelight Single Ladders are the most compact and lightweight ladders in the range, making this the obvious choice when space and weight are at a premium.
FLS ladders have a single attachment point at the top of the ladder and a double attachment at the bottom. This provides a suitable attachment for our double attachment hooks.

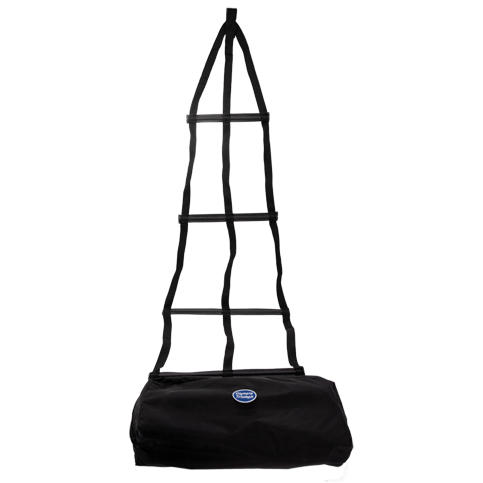

The Fibrelight Double Ladder has all the advantages of the Fibrelight Single, with the added benefit of enabling a faster, more natural climbing technique. All Fibrelight ladders come in standard lengths, but bespoke solutions are available on request.
FLD ladders have a single attachment at the top of the ladder and a triple attachment at the bottom. The ladder is designed to work in conjunction with the NM Hook.

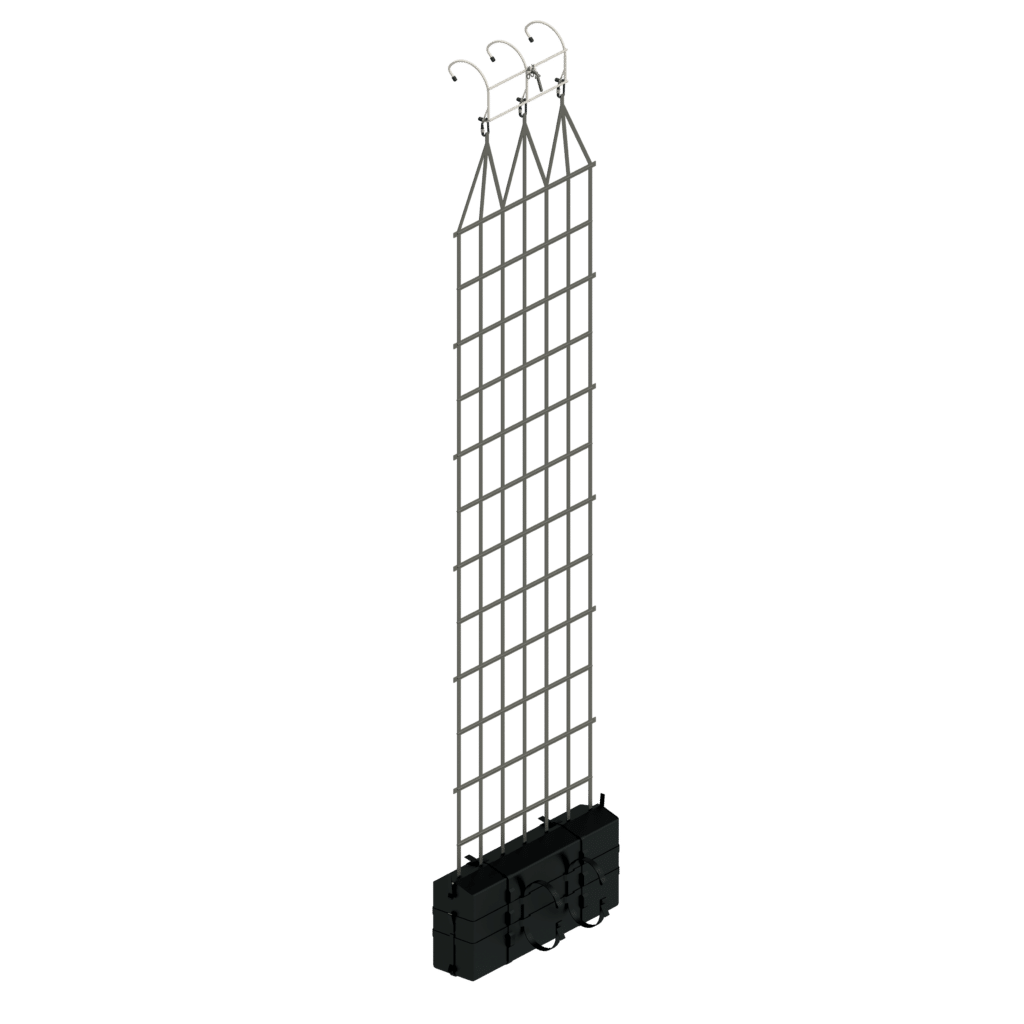

The Fibrelight Net allows multiple climbers to scale a target, improving team insertion time. When raised with a hook and pole combination, the net can be secured with three straps, then lowered down by an operator already aboard the target.
All Fibrelight ladders come in standard lengths, but bespoke solutions are available on request.
| Product Name | Product Code | Dimensions | Tred Height / Width | MBL | Weight | NSN |
|---|---|---|---|---|---|---|
| Single Fibrelight Ladder | FLS.05 | 5m x 200mm | 300mm / 150mm | Rung: 340kg, Top Loop: 1,150kg | 0.70kg | 2090‐99‐595‐1177 |
| Single Fibrelight Ladder | FLS.10 | 10m x 200mm | 300mm / 150mm | Rung: 340kg, Top Loop: 1,150kg | 1.40kg | 2090‐99‐182‐3852 |
| Single Fibrelight Ladder | FLS.15 | 15m x 200mm | 300mm / 150mm | Rung: 340kg, Top Loop: 1,150kg | 2.10kg | 2090‐99‐366‐6626 |
| Single Fibrelight Ladder | FLS.20 | 20m x 200mm | 300mm / 150mm | Rung: 340kg, Top Loop: 1,150kg | 2.80kg | 2090‐99‐602‐8030 |
| Double Fibrelight Ladder | FLD.05 | 5m x 390mm | 300mm / 150mm | Rung: 620kg, Top Loop: 1,770kg | 1.70kg | 2090‐99‐170‐5972 |
| Double Fibrelight Ladder | FLD.10 | 10m x 390mm | 300mm / 150mm | Rung: 620kg, Top Loop: 1,770kg | 3.40kg | 2090‐99‐366‐6628 |
| Double Fibrelight Ladder | FLD.15 | 15m x 390mm | 300mm / 150mm | Rung: 620kg, Top Loop: 1,770kg | 5.10kg | 2090‐99‐751‐8653 |
| Double Fibrelight Ladder | FLD.20 | 20m x 390mm | 300mm / 150mm | Rung: 620kg, Top Loop: 1,770kg | 6.8kg | 2090‐99‐250‐3495 |
| Fibrelight Net Ladder | FLN.05 | 5m x 1150mm | 300mm / 150mm | Rung: 710kg, Top Loop: 2,120kg | 3.75kg | 2090‐99‐591‐5275 |
| Fibrelight Net Ladder | FLN.10 | 10m x 1150mm | 300mm / 150mm | Rung: 710kg, Top Loop: 2,120kg | 7.50kg | 2090‐99‐160‐5060 |
