In detail
The more traditional hook shape provides quick and easy deployment of the hook. The variety of sizes provide solutions for all target sizes. The compact design saves on weight and can be used in conjunction with our compact folding pole for a covert system.
| Product Name | Product Code | Hook Opening (mm/") | Material | MBL (kg/Lbs) | Weight | NSN |
|---|---|---|---|---|---|---|

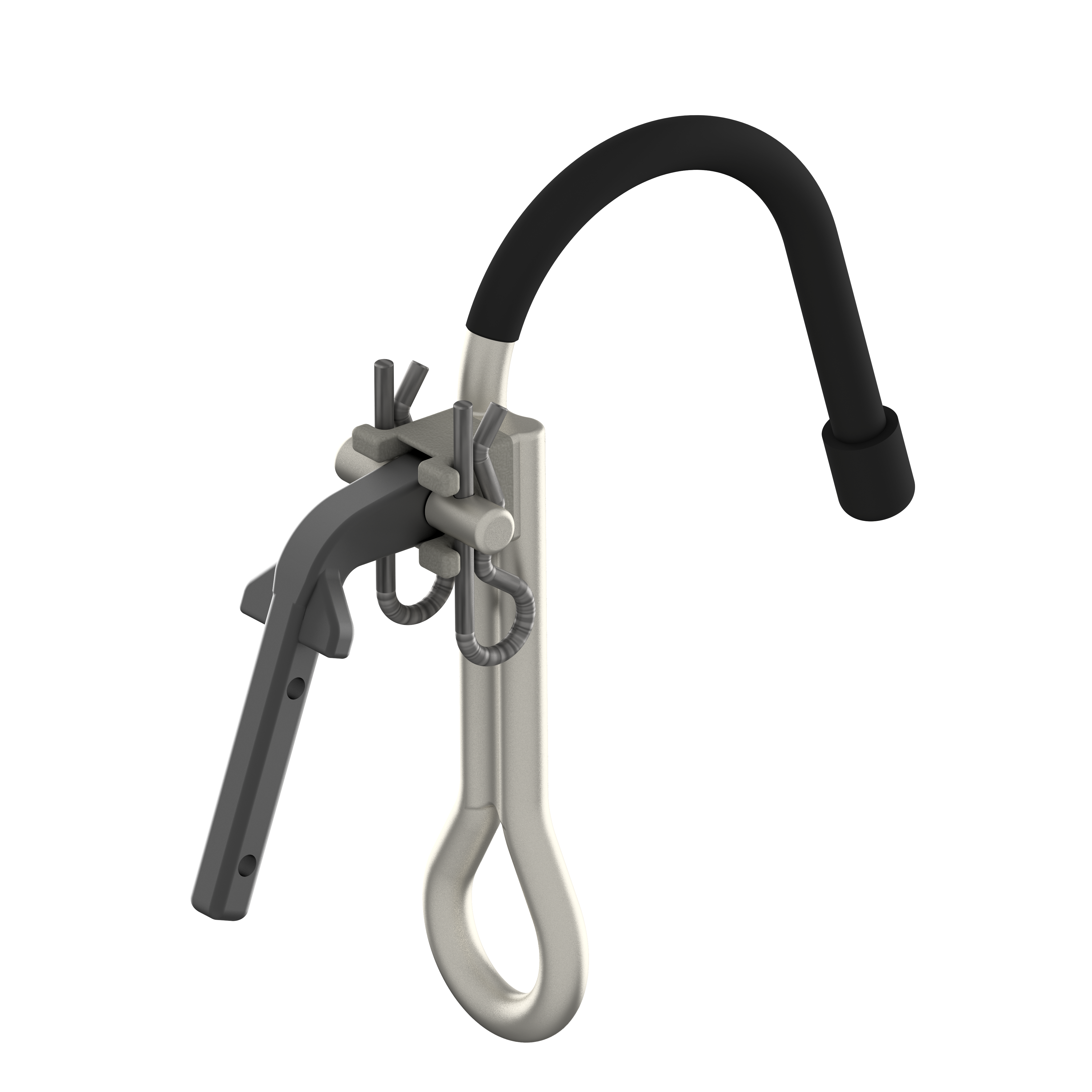

| A Hook | A3-930A | 112mm (4.4") | Titanium Grade 5 | 596kg (1,314lbs) | 0.35kg (0.8lbs) | 2040‐99‐667‐5752 |

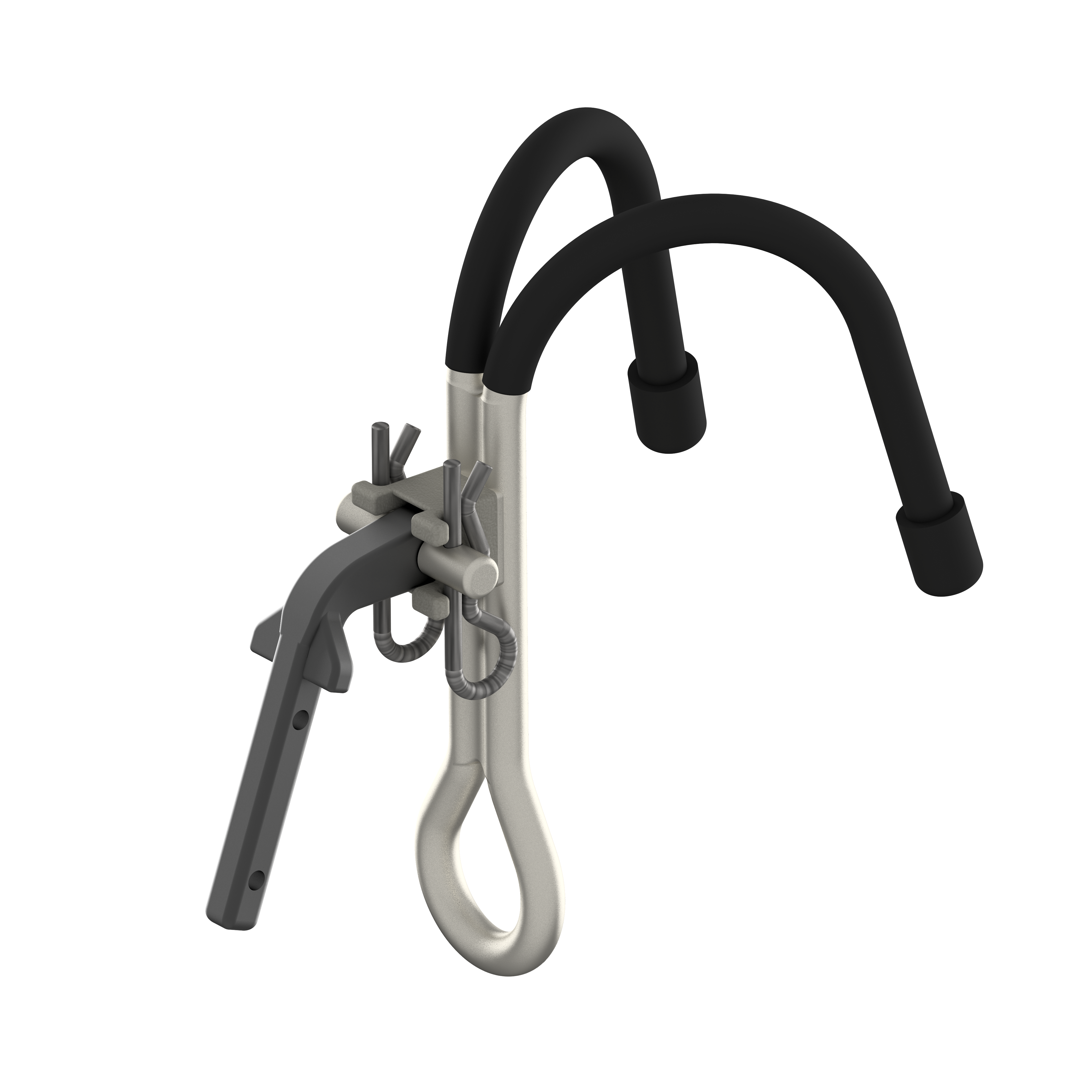

| B Hook | A3-930B | 100mm (3.94") | Titanium Grade 5 | 1238kg (2,729lbs) | 0.59kg (1.3lbs) | 2040‐99‐813‐1590 |

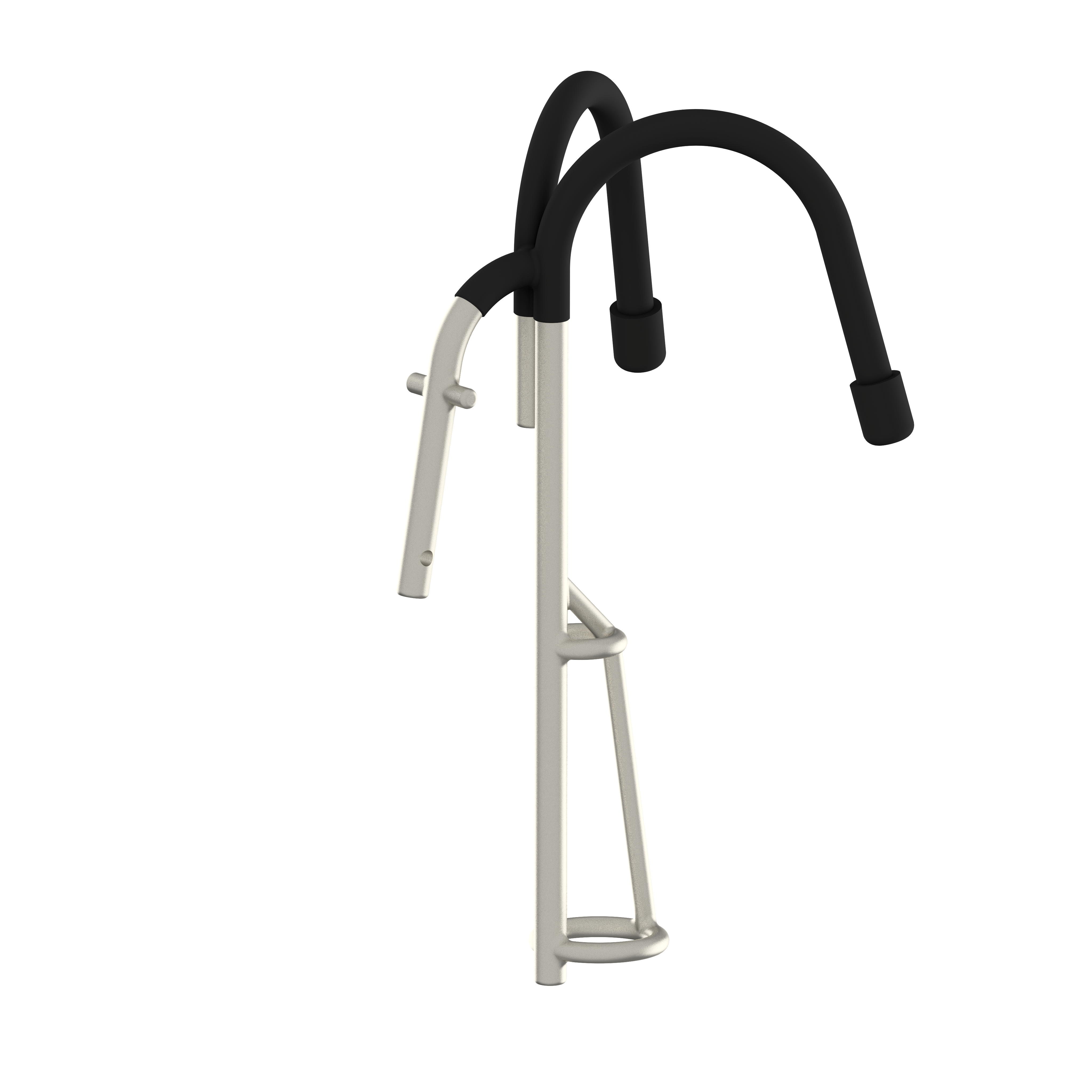

| D Hook | A3-930D | 90mm (3.54") | Titanium Grade 5 | 1193kg (2,630lbs) | 0.63kg (1.4lbs) | 2040‐99‐400‐0549 |

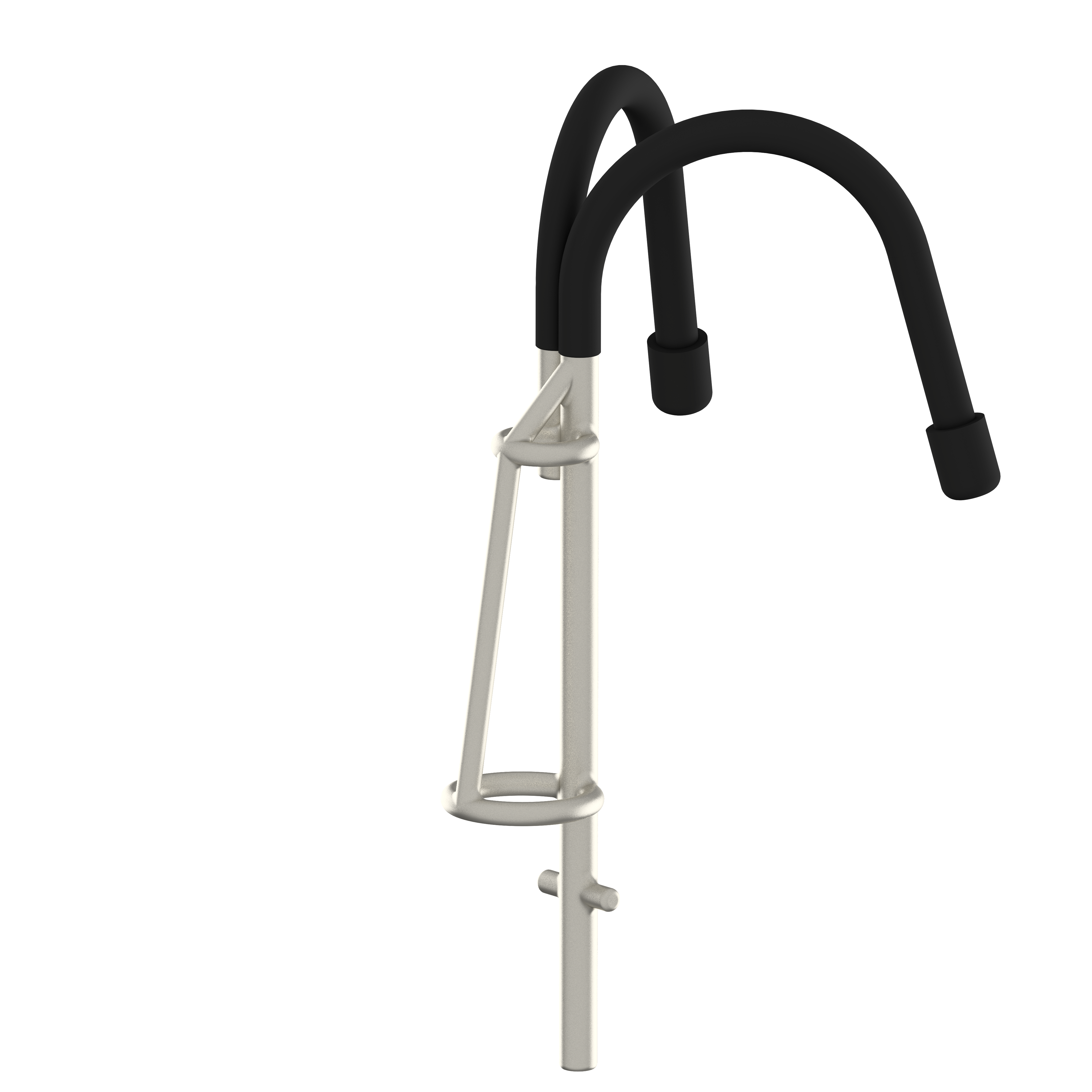

| E Hook | A3-930E | 90mm (3.54") | Titanium Grade 5 | 1193kg (2,630lbs) | 0.64kg (1.4lbs) | 2040‐99‐969‐6134 |

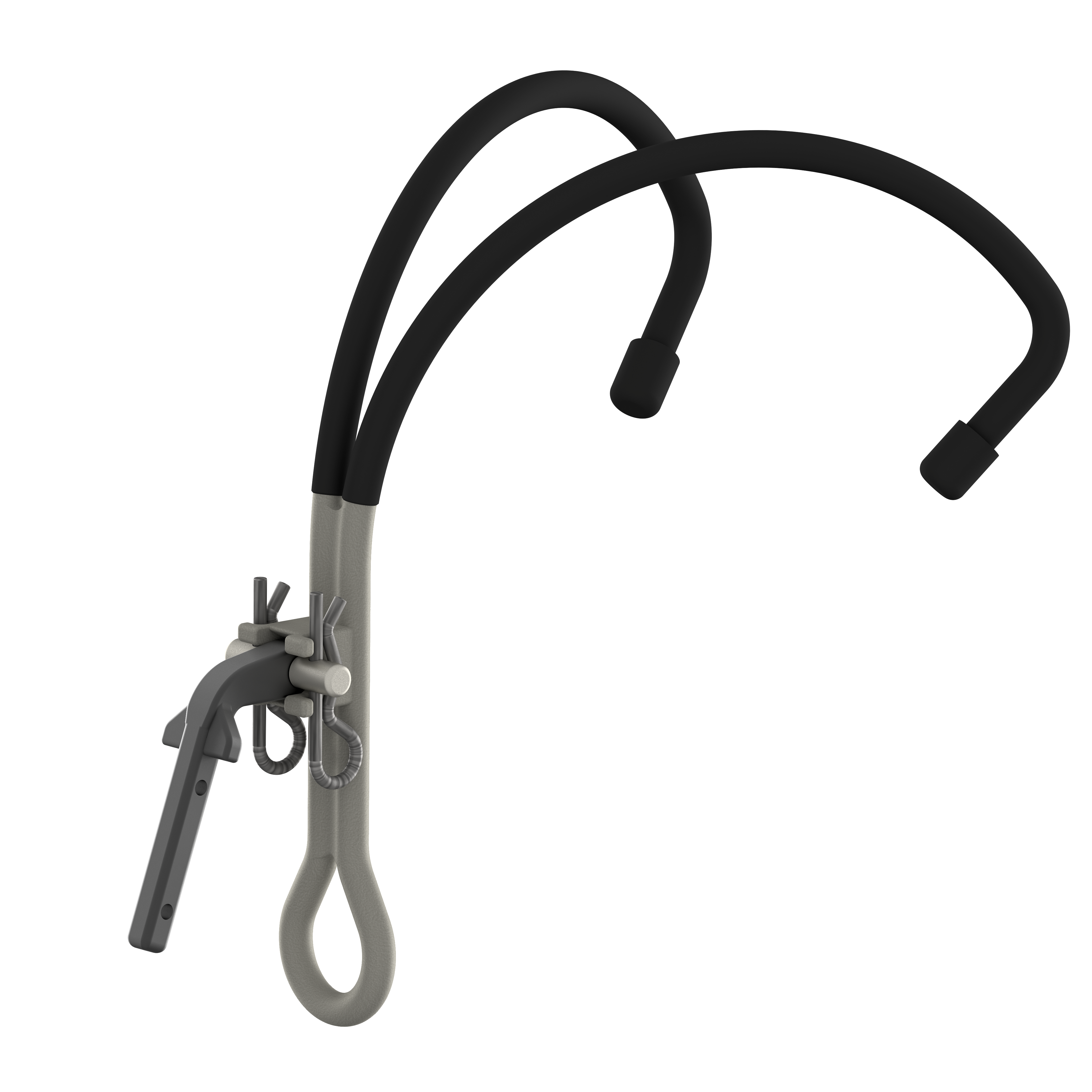

| F Hook | A3-930F | 205mm (8.07") | Titanium Grade 5 | 2017kg (4,447lbs) | 1.005kg (2.2lbs) | 8465‐99‐742‐9266 |
