Propel

Ultra-compact pulley using sealed ball bearings for excellent efficiency.

Color: Red/Grey
Product Downloads
Color: Red/Grey

In detail

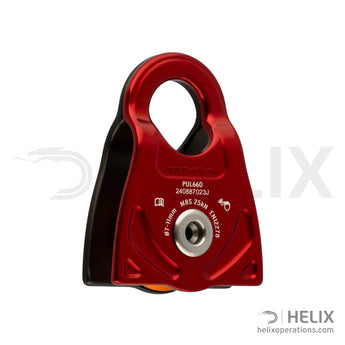

The DMM Propel is a lightweight, strong, and compact pulley designed for exceptional performance and versatility. Equipped with sealed ball bearings, it offers high efficiency and low maintenance, making it ideal for hauling smaller loads. The hot-forged side plates feature smooth fairleads and edges that are rope and textile-friendly, while their extensions protect the rope and sheave when operating near surfaces. Additionally, these side plates include thickened Prusik-minding tabs that improve engagement, enabling seamless integration into progress capture hauling systems. The attachment eye is generously sized to allow carabiners to rotate, facilitating easier system setups.

With its wider side profile, the pulley provides added protection for the rope in close quarters, while its compatibility with ropes up to 11mm enhances its practicality. The swinging side plates allow for quick and easy installation, and its ability to connect directly with textile components further boosts its adaptability. Boasting a 25kN Minimum Breaking Strength (MBS) and a 5kN Working Load Limit (WLL), the DMM Propel combines lightweight design with impressive strength, making it a reliable choice for various applications.



Product Name Product Code Colour Dimensions Weight Certification MBS WLL Rope Diameter

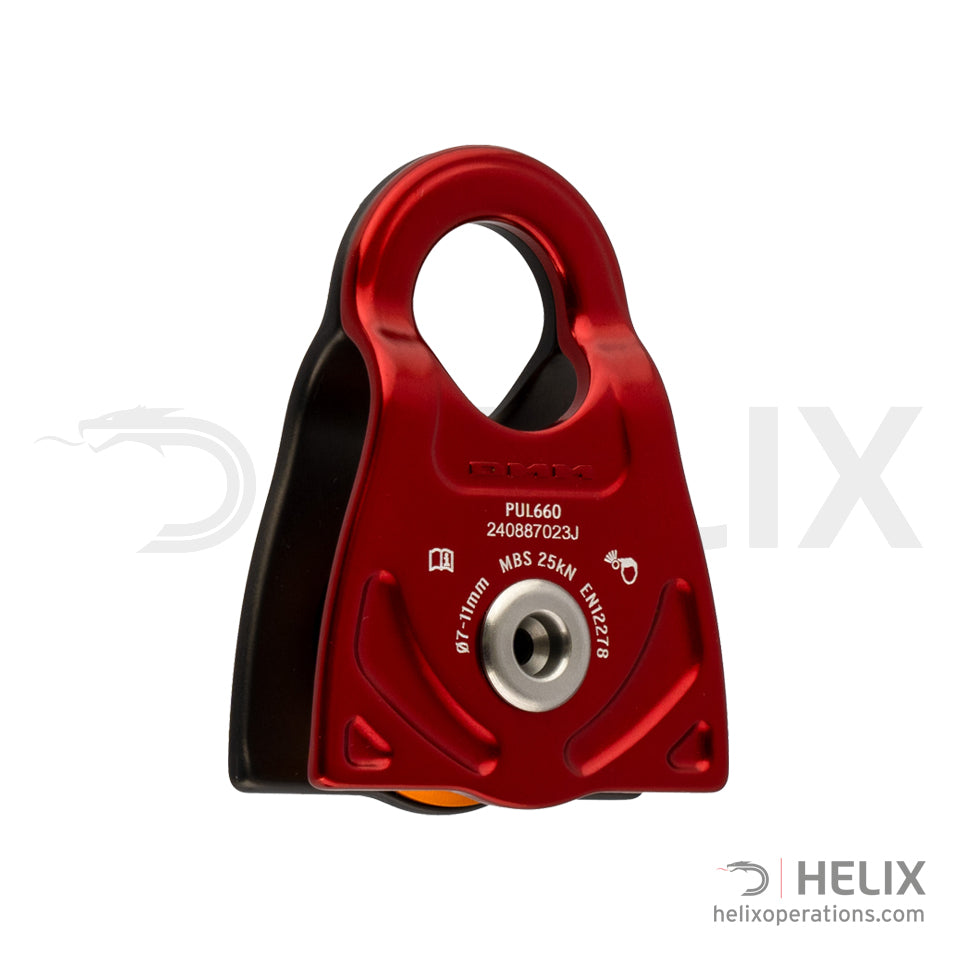

Propel PUL660 Red 72 x 54 x 24mm 73g EN12278:2007 25kN 5kN 11mm Max

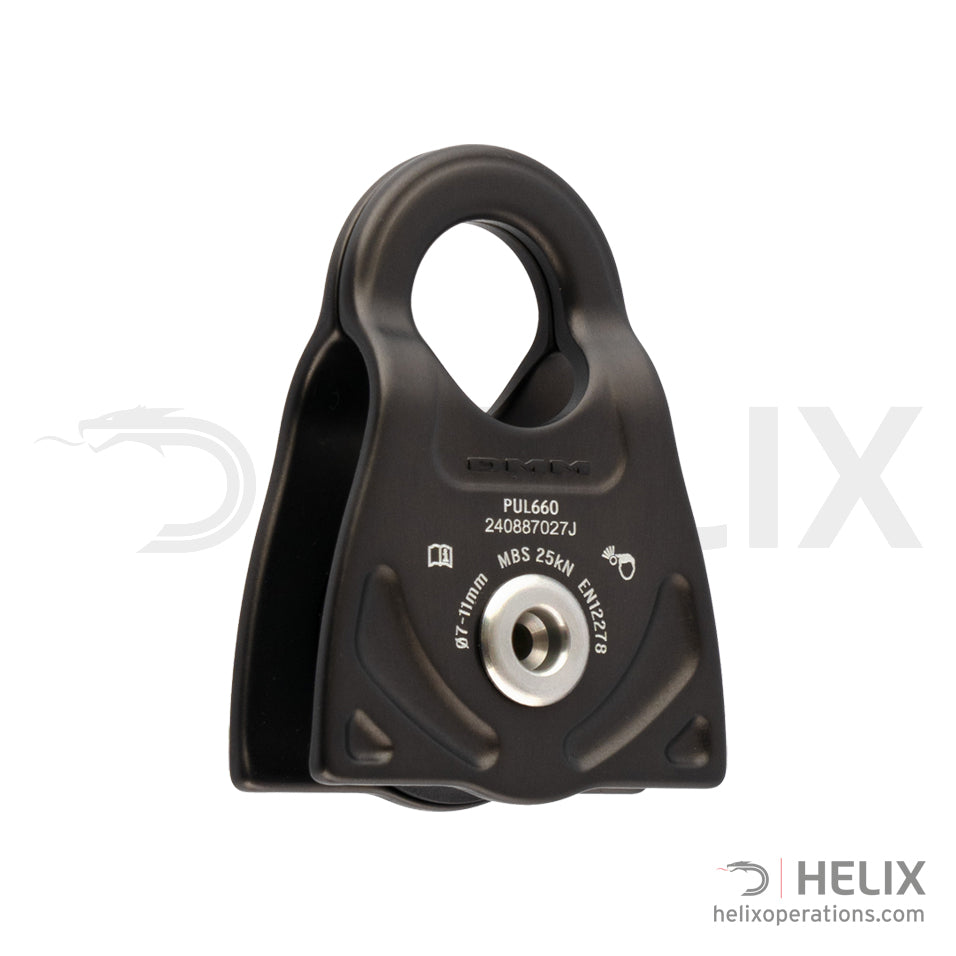

Propel PUL660MG Matt Grey 72 x 54 x 24mm 73g EN12278:2007 25kN 5kN 11mm Max
