In detail

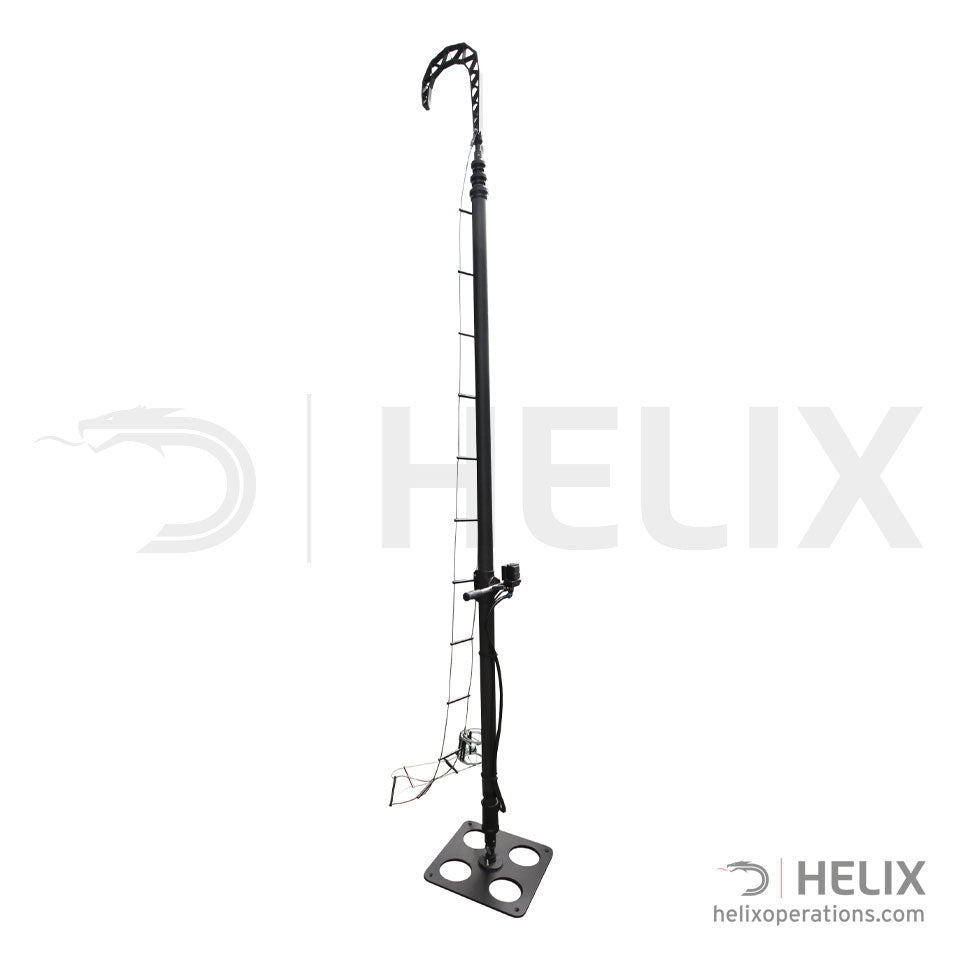

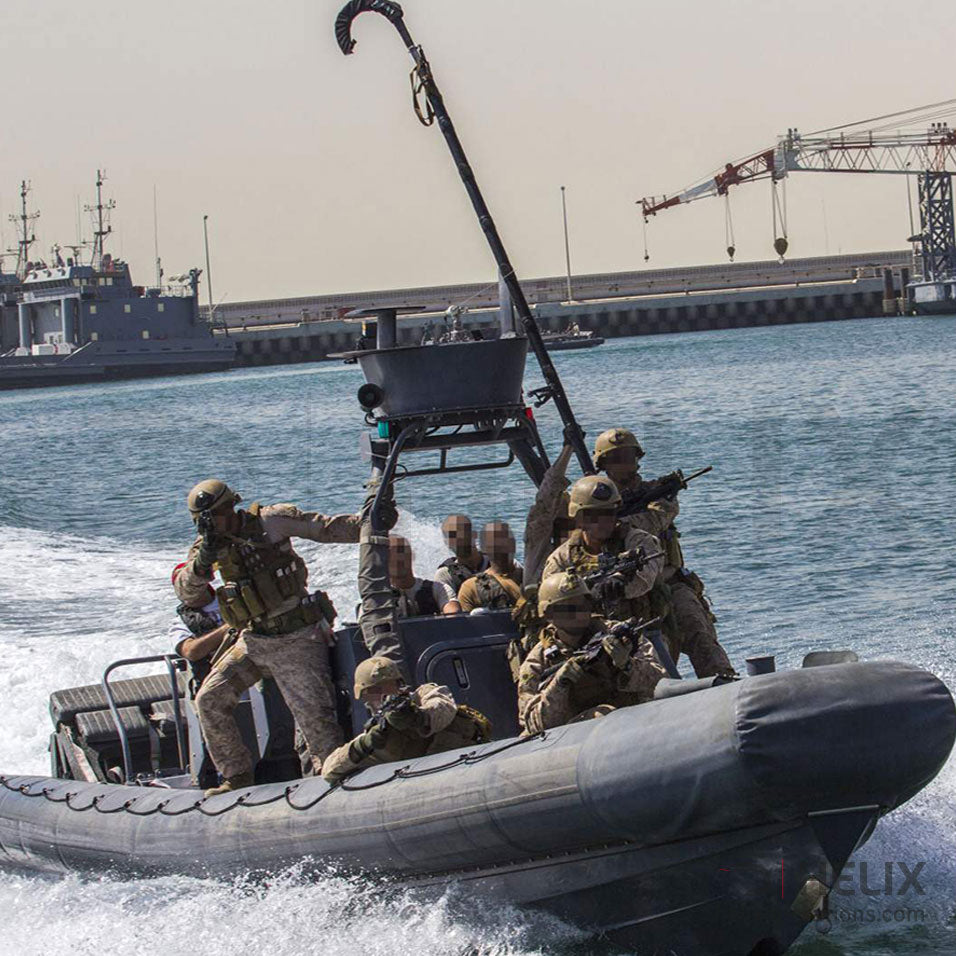

The REBS Giraffe Tracer Pneumatic Telescopic Pole is the most popular hook and climb VBSS boarding system. The 10/15m carbon fibre Tracer has superior controllability, a vacuum pressure disengagement feature and integrates easily with RHIBs and other similar surface vessels.
The Giraffe provides excellent command and controllability to the user for a complete pole and hook set, which has a very long reach. A key feature is the control the system which gives over hook engagement and vacuum pressure disengagement, ensuring good fast placements that are ready for climbing.
Operated with a simple up and down push button, the user has complete control of the system and can fully deploy the hook in 6-8 seconds and retract the system in 11-14 seconds. It is so lightweight that it can be operated by just one person.
The system can be used with two different sizes of base plate depending on the operational requirements. Includes all the elements needed to work alongside the pole and hook; wire ladders and ladder reels in various lengths, release mechanisms, air bottles, hoses and pressure regulators.
In the interests of simplicity, the Giraffe system is also available in complete packages ready to be deployed.
| Product Name | Product Code | Typical reach Height | Weight | Storage Length | Colour | NSN Code |
|---|---|---|---|---|---|---|
| REBS Giraffe Tracer Pneumatic Pole Incl. Handle/Control | HKBE003632 | 10m | 10.9kg | 3.3m | Black | 4240-99-427-4273 |
| REBS Giraffe Tracer Pneumatic Pole Incl. Handle/Control | HKBE003345 | 15m | 13.5kg | 4.4m | Black | 4240-99-753-2484 |

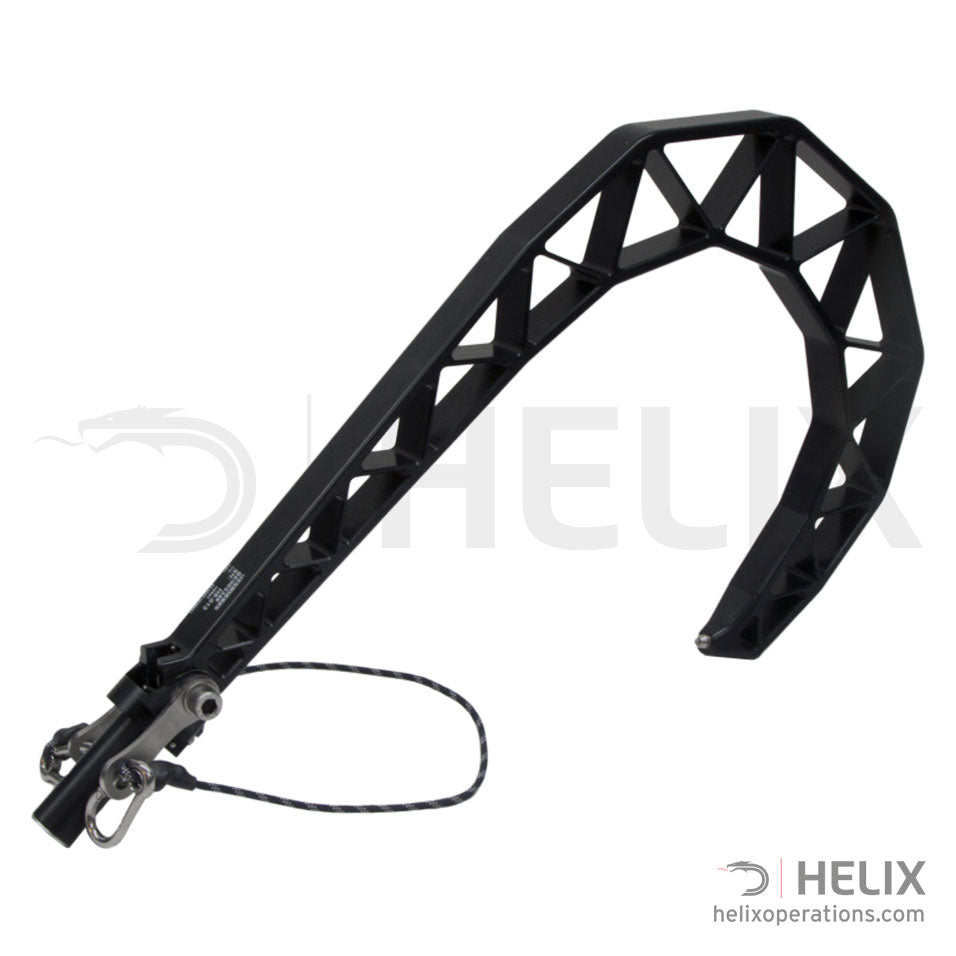

| REBS Giraffe Release Mechanism With Boarding Hook | HKBE003346 | - | - | - | - | 5340-99-671-3835 |
| REBS Giraffe Air Regulator 200/300Bar | HKBE003352 | - | - | - | - | 4820-99-309-6754 |
| REBS Giraffe Transport Bag | HKBE003349 | - | - | - | - | 8465-99-564-1025 |
| REBS Giraffe Mounting Bracket Price 1Pc 2Pc/Set | HKBE003350 | - | - | - | - | |

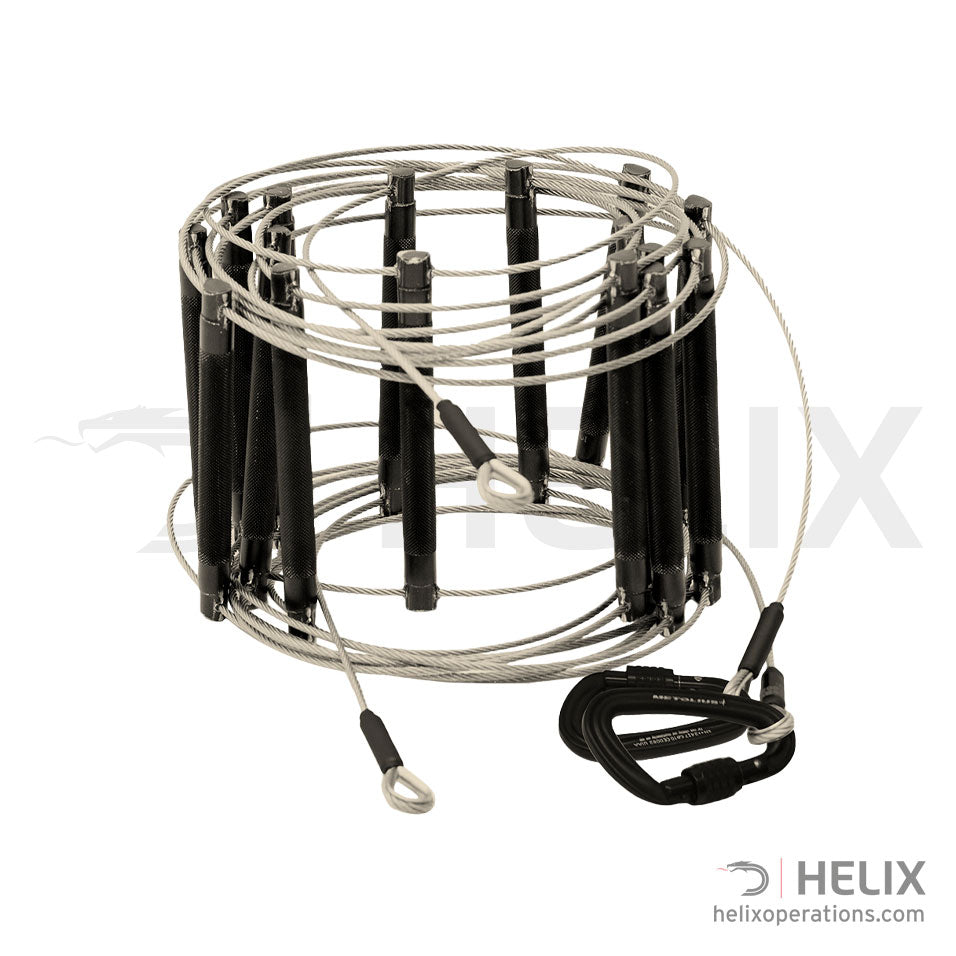

| REBS Wireladder | HKBE002420 | 5m | 0.92kg | - | - | |
| REBS Wireladder | HKBE002461 | 10m | 1.75kg | - | - | |
| REBS Wireladder | HKBE002462 | 15m | 2.43kg | - | - | |
| REBS Giraffe Pole Socket | HKBE003351 | - | - | - | - | |
| REBS Giraffe Complete Baseplate 200X20 Mm | HKBE003361 | - | - | - | - | |
| REBS Giraffe Complete Baseplate 490X490Mm | HKBE006132 | - | - | - | - | 5340-99-915-9758 |
| REBS Ladder Reel | HKBE005538 | - | 3kg | - | - | |
| REBS Giraffe airbottle 3.4l | HKBE003431 | - | - | - | - | |
| REBS Giraffe airbottle 6,75l | HKBE004340 | - | - | - | - | |
| 225 Bar Yoke (For use in 200 Bar Bottles) | HKBE006697 | - | - | - | - | 4240-99-671-3873 |
| Giraffe Tracer Repair Kit | HKBE008085 | - | - | - | - | 4240-99-932-8376 |
| 2m Hose Extension | HKBE390191 | - | - | - | - | 4720-99-170-6078 |
| 5m Hose Extension | HKBE390194 | - | - | - | - | 4720-99-290-5500 |
| Giraffe Swivel Joint | HKBE000263 | - | - | - | - | 4240-99-959-5198 |
| Poleman Harness | HKBE000036 | - | - | - | - | |
| Poleman Harness Back Pad | HKBE110082 | - | - | - | - | |
| Poleman Harness Strap | HKBE39000001 | - | - | - | - |
