Revolver

An integrated pulley wheel reduces rope drag and combats friction.

Colour: Titanium
Product Downloads
Colour: Titanium

In detail

The Revolver's pulley wheel reduces friction on ropes moving through the carabiner. Placed where the pitch changes direction, it reduces rope drag and makes upward movement easier. The Revolver can be used in an improvised hauling system to help your second over a crux, haul kit bags, or rescue your partner from a crevasse. Where normal carabiners in these systems cause energy to be lost as friction, the Revolver's pulley wheel makes hauling easier by converting more of your energy into movement. A Revolver on your rack lets you reduce rope drag and make efficient mechanical advantage systems without the need for additional devices. Comes as standard with a matt grey anodised finish, but can also be supplied with a matt black anodised finisth or with more specialist Ceracote finishes in a range of tactical colours from artic white to desert coyote. The Ceracote coatings are also available with a reduced IR signature.



Product Name Product Code Colour MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Dimensions Weight Gate Opening (X) Certification NSN Code
Revolver A238 Titanium 24kN 7kN 9kN 59 x 103mm 51g 24mm EN 12275:2013 B, UIAA121:2009 Class B

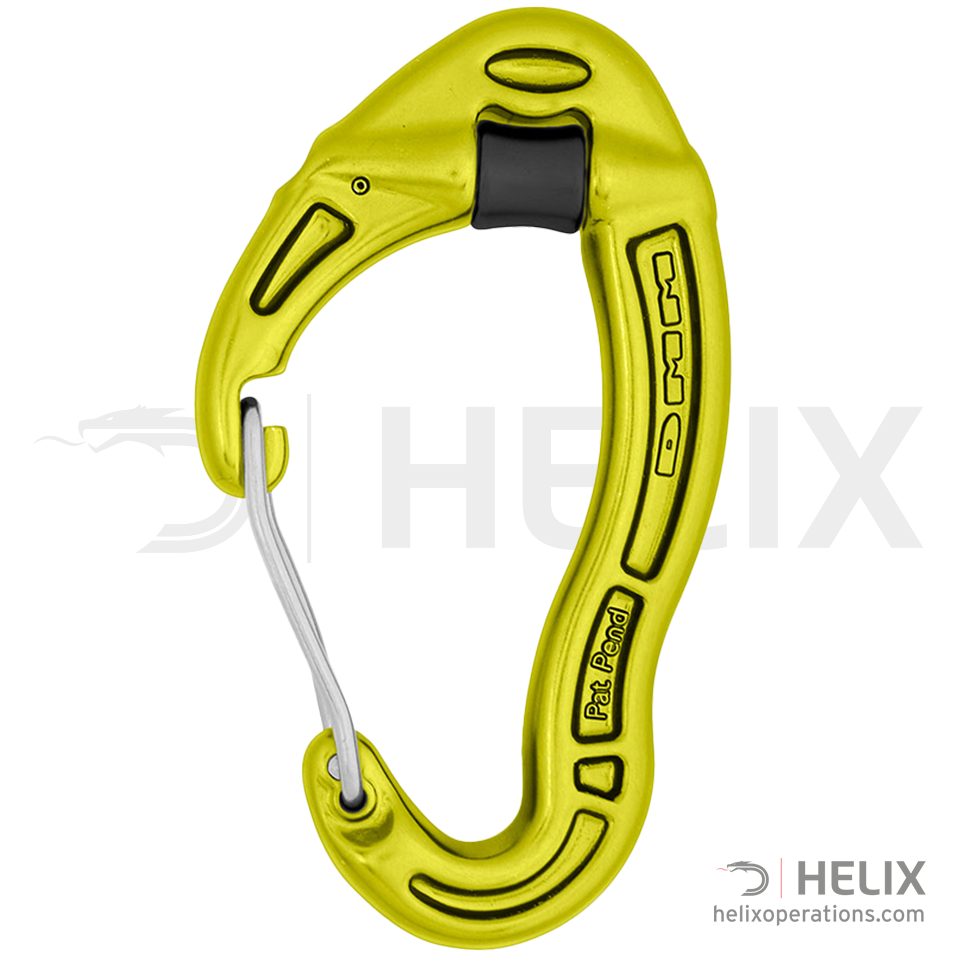

Revolver A238LG Lime 24kN 7kN 9kN 59 x 103mm 51g 24mm EN 12275:2013 B, UIAA121:2009 Class B

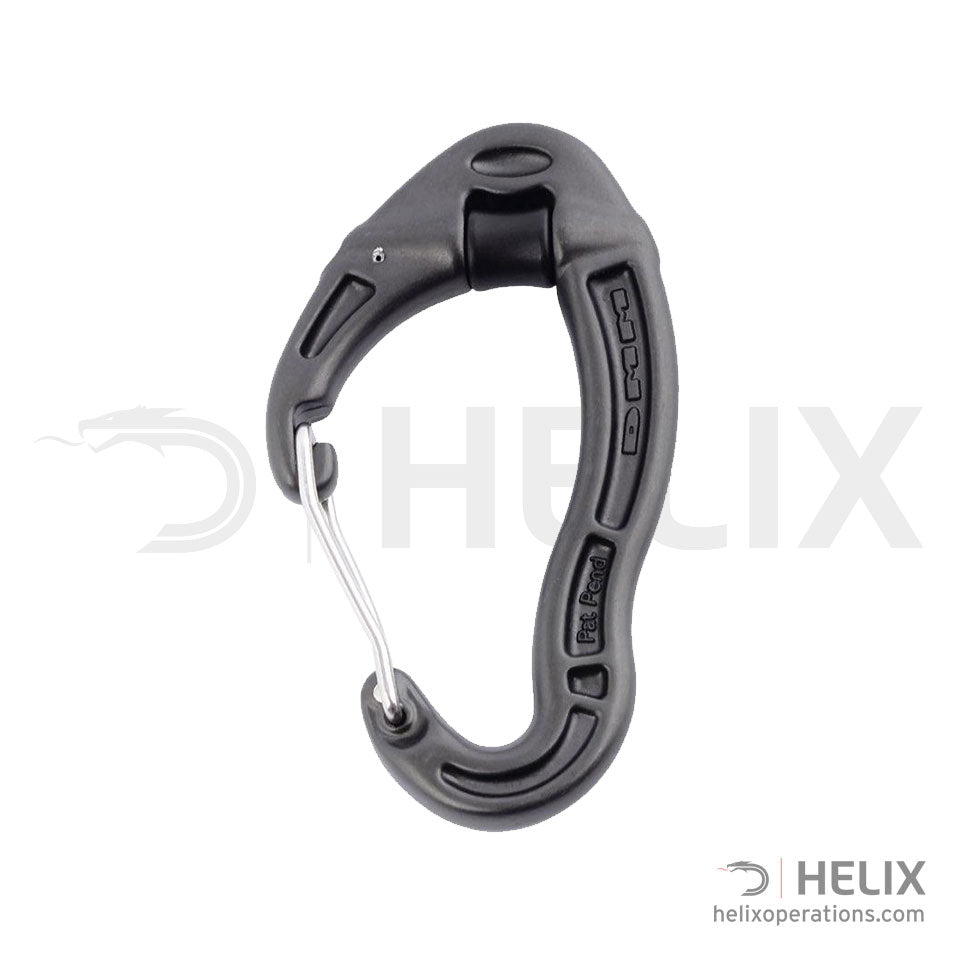

Revolver A238MG Matt Grey 24kN 7kN 9kN 59 x 103mm 51g 24mm EN 12275:2013 B, UIAA121:2009 Class B

Revolver

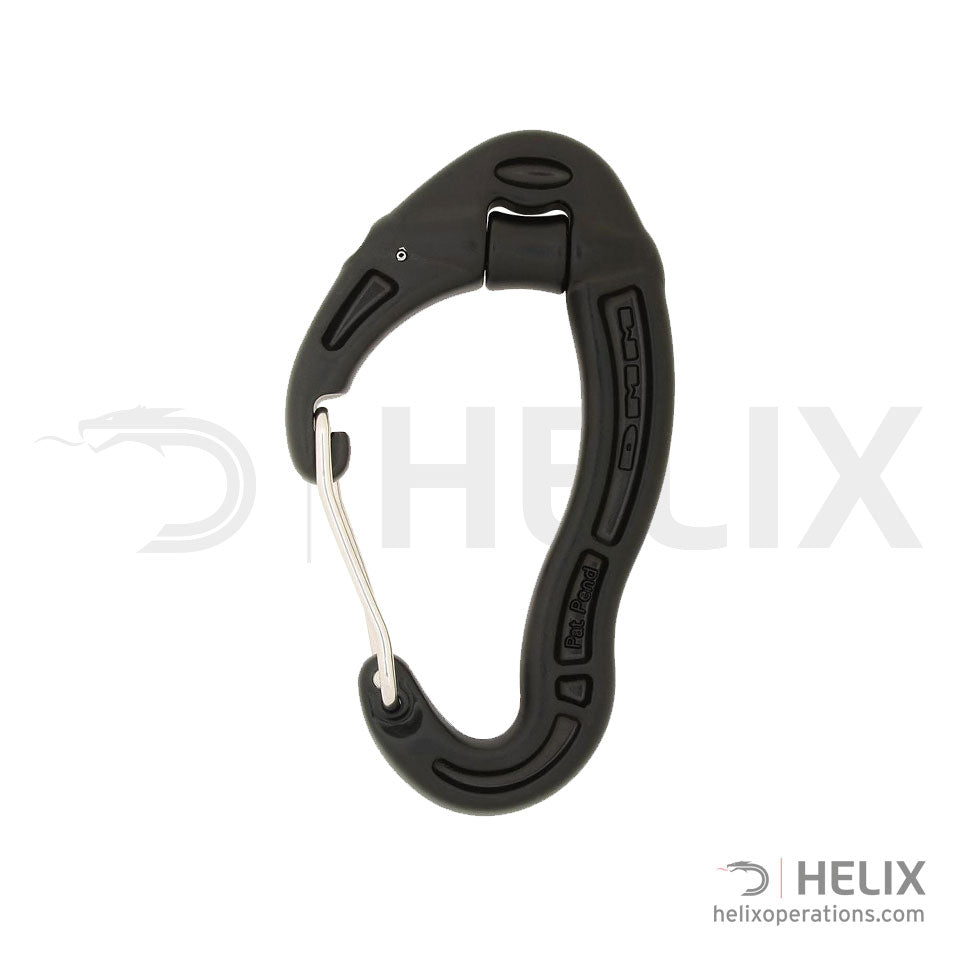

A238MBLK Black 24kN 7kN 9kN 59 x 103mm 51g 24mm EN 12275:2013 B, UIAA121:2009 Class B 8465-99-439-8205
