In detail

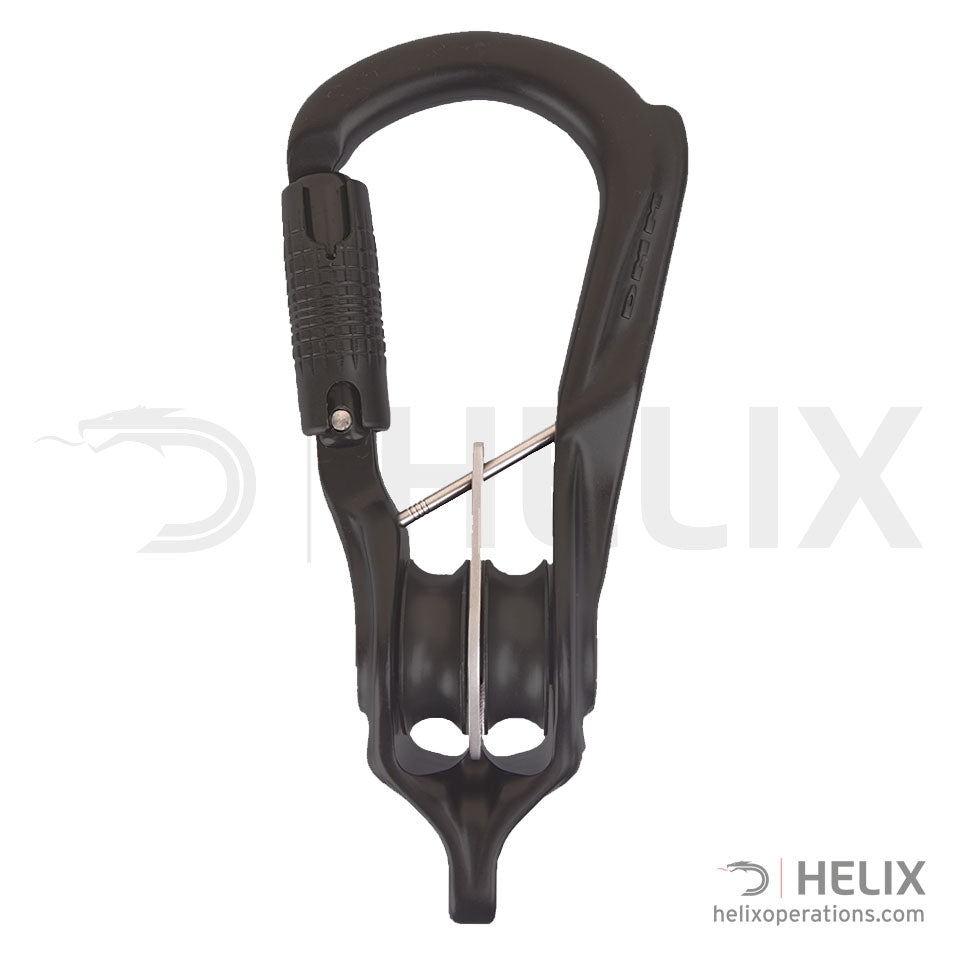

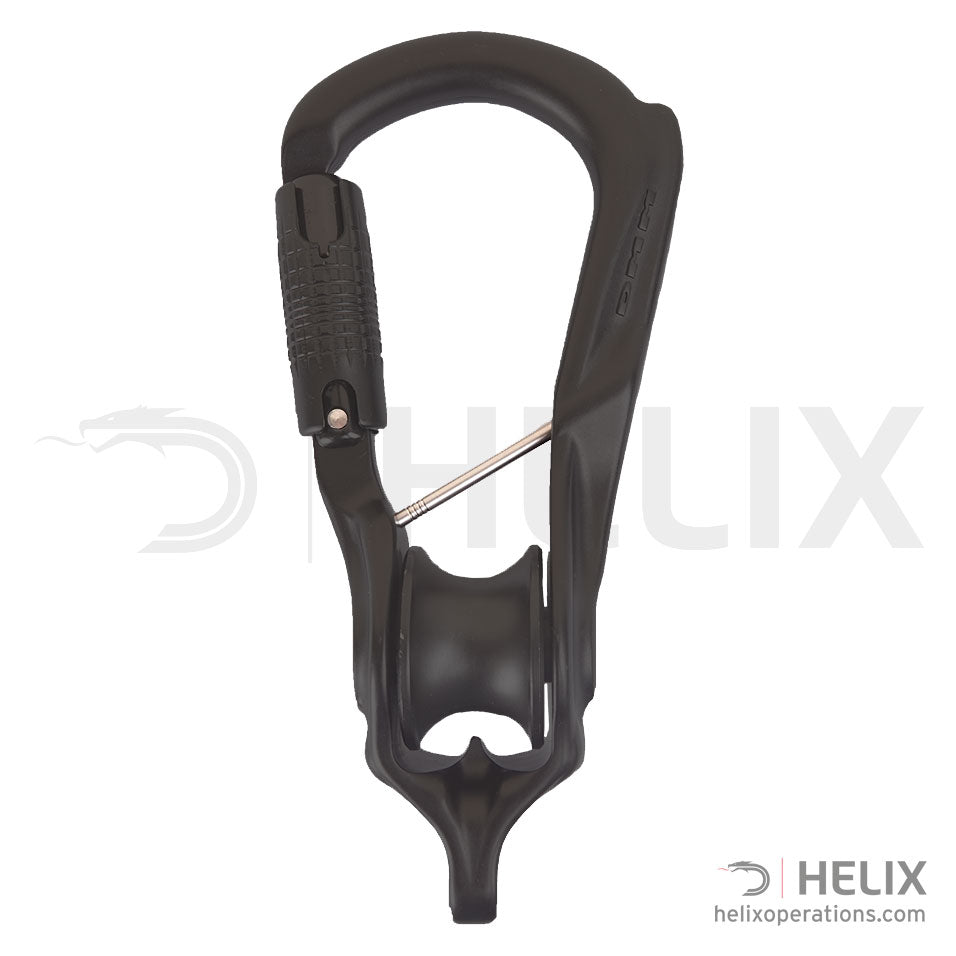

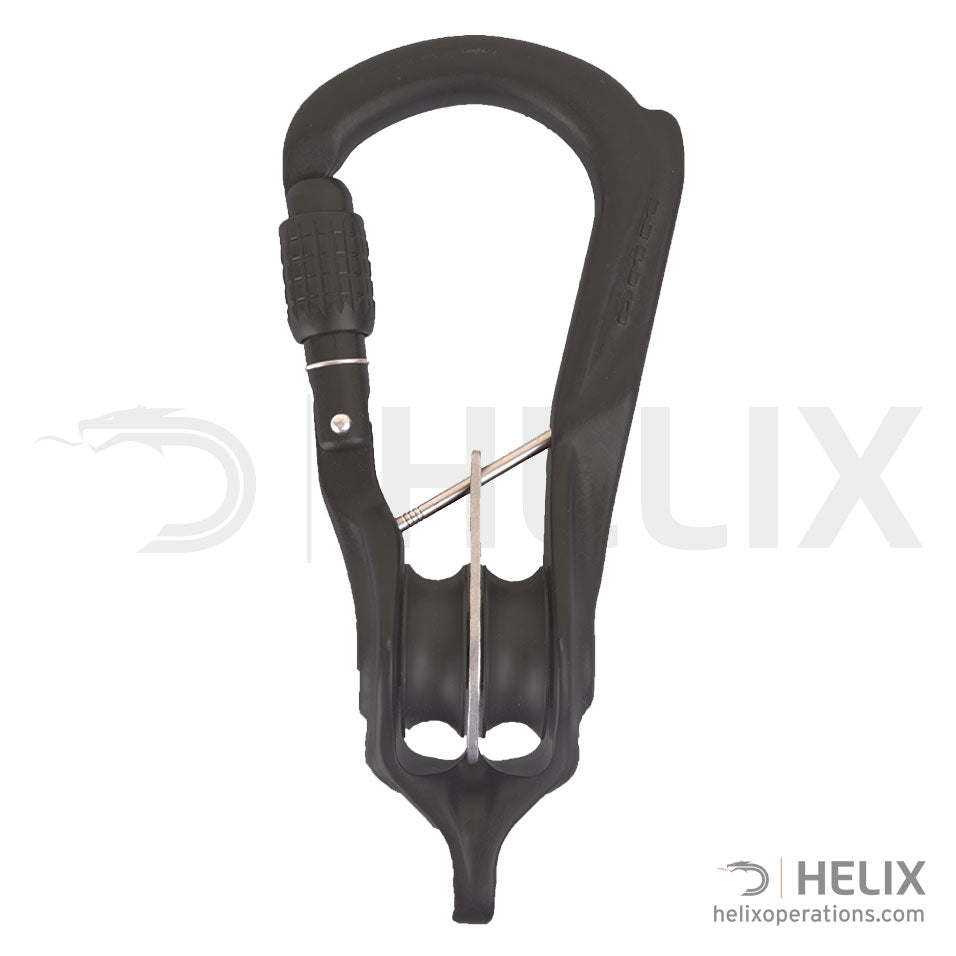

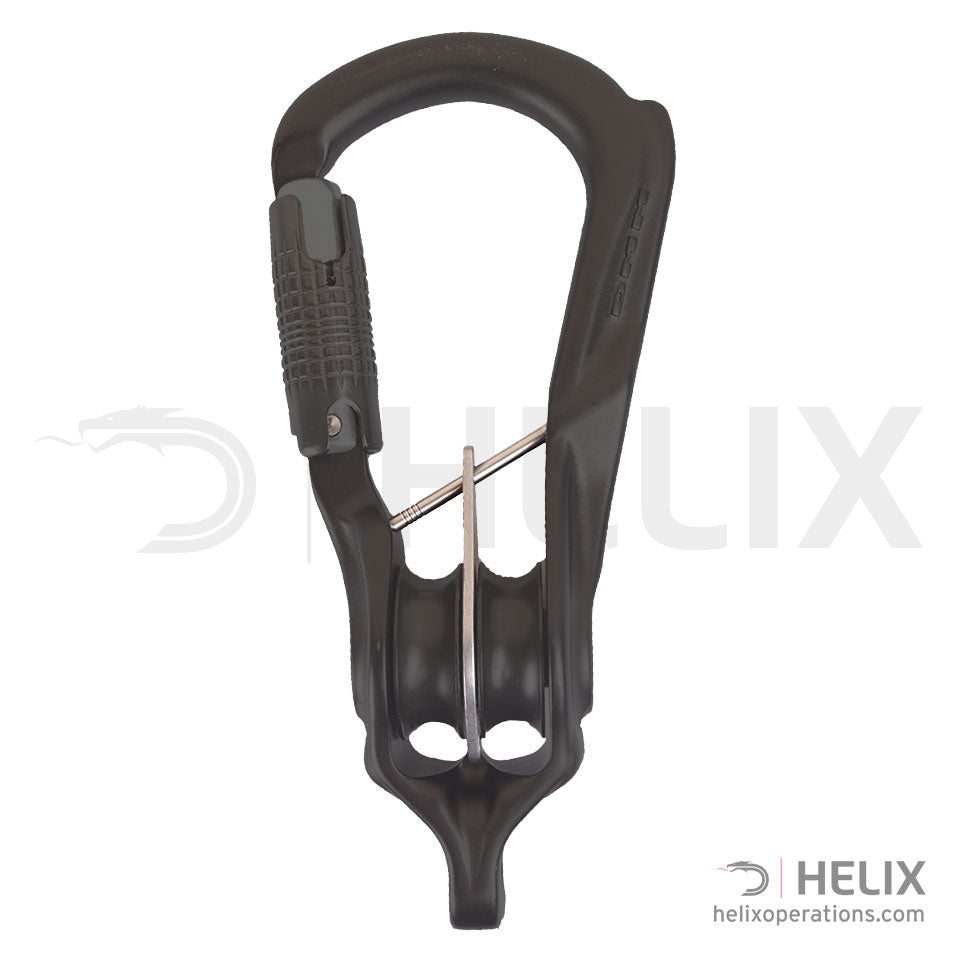

A carabiner with an integrated pulley. It features a high efficiency roller bearing sheave(s), threaded removable captive bar and a full strength textile friendly becket.
The Revolver Rig comes into its own when flexibility and efficiency are paramount, it excels in improvised rescues, compact mechanical advantage systems and reducing friction in rigging featuring ropes.
The uniquely profiled spine and captive bar aid in maintaining correct orientation.
The design of the Revolver Rig is such that when using a carabiner attached to the becket any friction between the carabiner and rope is minimised.
The carabiner comes as standard with a matt grey anodised finish, but can also be supplied with a matt black anodised finish or with more specialist Ceracote finishes in a range of tactical colours from artic white to desert coyote. The Ceracote coatings are also available with a reduced IR signature.
| Product Name | Product Code | Colour | Dimensions | Weight | Certification | NSN Code | WLL | MBS Major Axis | MBS Minor Axis | MBS Gate Open |
|---|---|---|---|---|---|---|---|---|---|---|
| Revolver Rig Screwgate | A5821CB | Grey/Lime | 76 x 161mm | 196g | EN12278:2007, EN362:2004 B/T | 8465-99-156-7246 | 5kN | 25kN | 7kN | 7kN |

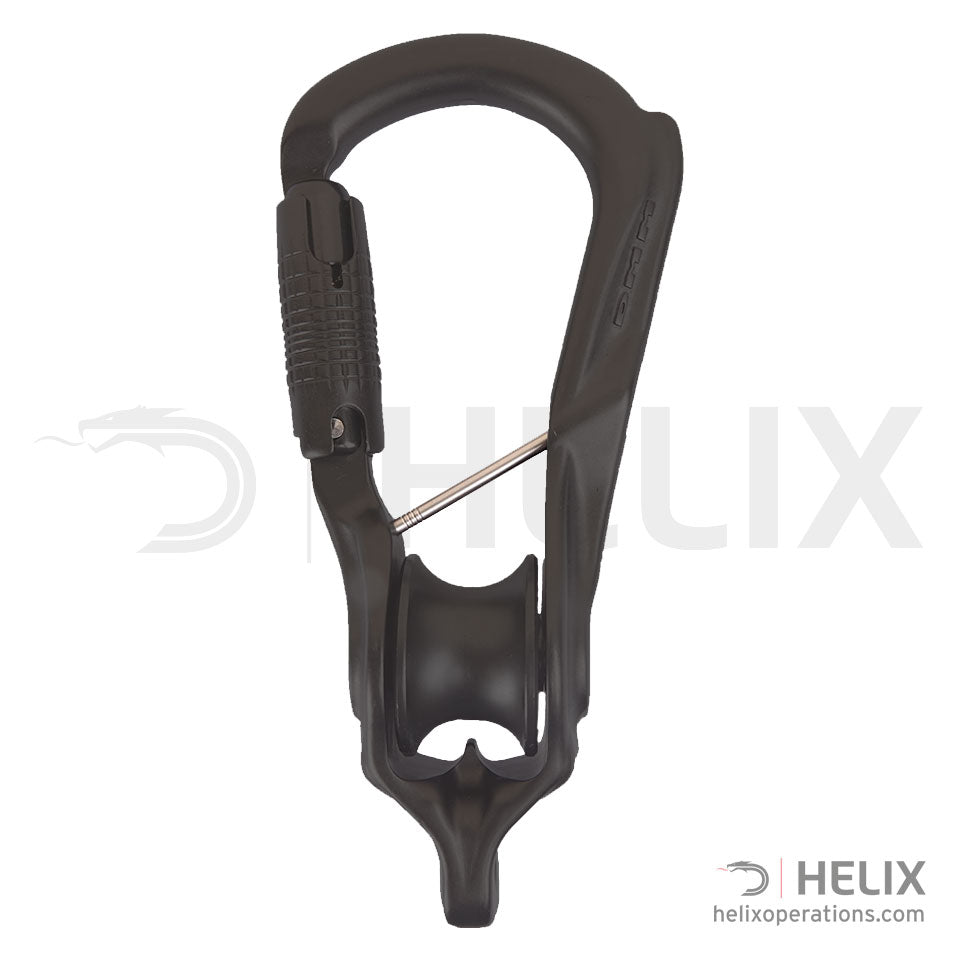

| Revolver Rig Locksafe | A5871CB | Grey/Green | 76 x 161mm | 203g | EN12278:2007, EN362:2004 B/T | - | 5kN | 25kN | 7kN | 7kN |
| Revolver Rig Durolock | A5841CB | Grey/Purple | 76 x 161mm | 213g | EN12278:2007, EN362:2004 B/T | - | 5kN | 25kN | 7kN | 7kN |
| Revolver Rig Screwgate Twin | A5822CB | Grey/Lime | 76 x 161mm | 214g | EN12278:2007, EN362:2004 T | 8465-99-264-1662 | 5kN | 25kN | 7kN | 7kN |
| Revolver Locksafe Twin | A5872CB | Grey/Green | 76 x 161mm | 219g | EN12278:2007, EN362:2004 T | - | 5kN | 25kN | 7kN | 7kN |
| Revolver Rig Durolock Twin | A5842CB | Grey/Purple | 76 x 161mm | 226g | EN12278:2007, EN362:2004 T | - | 5kN | 25kN | 7kN | 7kN |

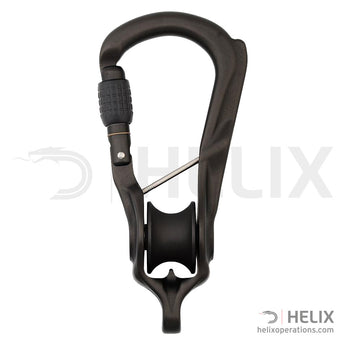

| Revolver Rig Screwgate | A5821CBMG | Matt Grey | 76 x 161mm | 196g | EN12278:2007, EN362:2004 | - | 5kN | 7-13mm | 25kN | 7kN |
| Revolver Rig Screwgate Twin | A5822CBMG | Matt Grey | 76 x 161mm | 214g | EN12278:2007, EN362:2004 | - | 5kN | 5-8mm | 25kN | 7kN |
| Revolver Rig | A5831CBMG | Matt Grey | 76 x 161mm | - | - | - | 5kN | - | 25kN | 7kN |
| Revolver Rig | A5832CBMG | Matt Grey | 76 x 161mm | - | - | - | 5kN | - | 25kN | 7kN |
| Revolver Rig Locksafe | A5871CBMG | Matt Grey | 76 x 161mm | 203g | EN12278:2007, EN362:2004 | - | 5kN | 7-13mm | 25kN | 7kN |
| Revolver Rig Locksafe Twin | A5872CBMG | Matt Grey | 76 x 161mm | 219g | EN12278:2007, EN362:2004 | - | 5kN | 5-8mm | 25kN | 7kN |
