Shadow Straight

A low weight and robust sport carabiner for onsight success.

Colour: Blue
Product Downloads
Colour: Blue

In detail

The Shadow carabiner combines high strength with light weight, and great ergonomics. 42g and a 10kN gate open strength is hard to beat.

It would have been possible to remove more weight, but resisting that temptation has produced a carabiner which is not only light and strong, but also very tough and durable.

The engineers designed the Shadow to be strong across all orientations because no matter how careful you are sometimes, kit gets cross-loaded or snagged in the open position.  This design approach makes the Shadow safer to use especially in adverse environments where speed is key and it is not always possible to double check everything. Thus for example a key failure mode for non-locking carabiners is loading whilst the gate is open – the Shadow minimizes this problem with a class leading 10kN gate open strength and a relatively strong spring action that keeps the gate shut.

Another often overlooked safety feature is the design of the top bar – this has deliberately been made steep so that it drives loads into the spine to help ensure optimal loading.

Comes as standard with a matt grey anodised finish, but can also be supplied with a matt black anodised finish or with more specialist Ceracote finishes in a range of tactical colours from artic white to desert coyote. The Ceracote coatings are also available with a reduced IR signature.



Product Name Product Code Colour MBS (Major Axis) MBS (Minor Axis) MBS (Gate Open) Dimensions Weight Gate Opening (X) Certification

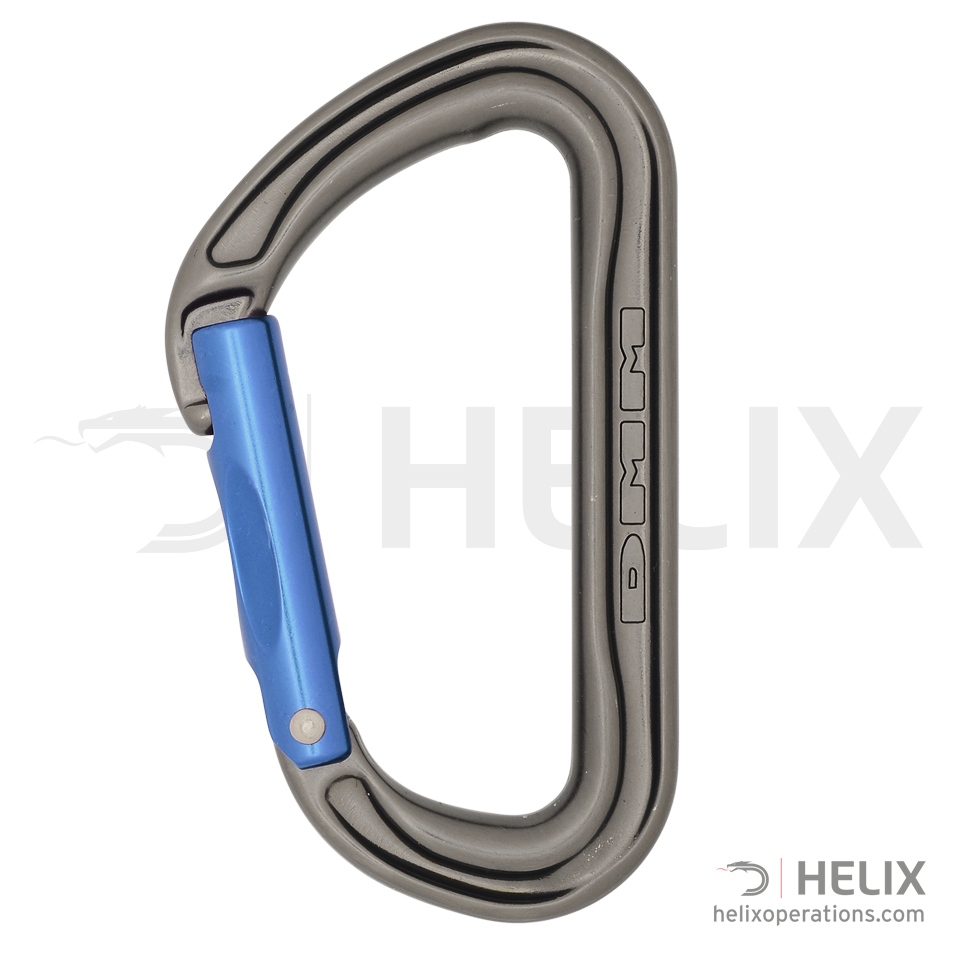

Shadow Straight Gate A301BL Titanium/Blue 24kN 9kN 10kN 58 x 102mm 42g 20mm EN 12275:2013 B, UIAA121:2009 Class B
Shadow Straight Gate A301BL-P6 Titanium/Blue 24kN 9kN 10kN 58 x 102mm 252g 20mm EN 12275:2013 B, UIAA121:2009 Class B

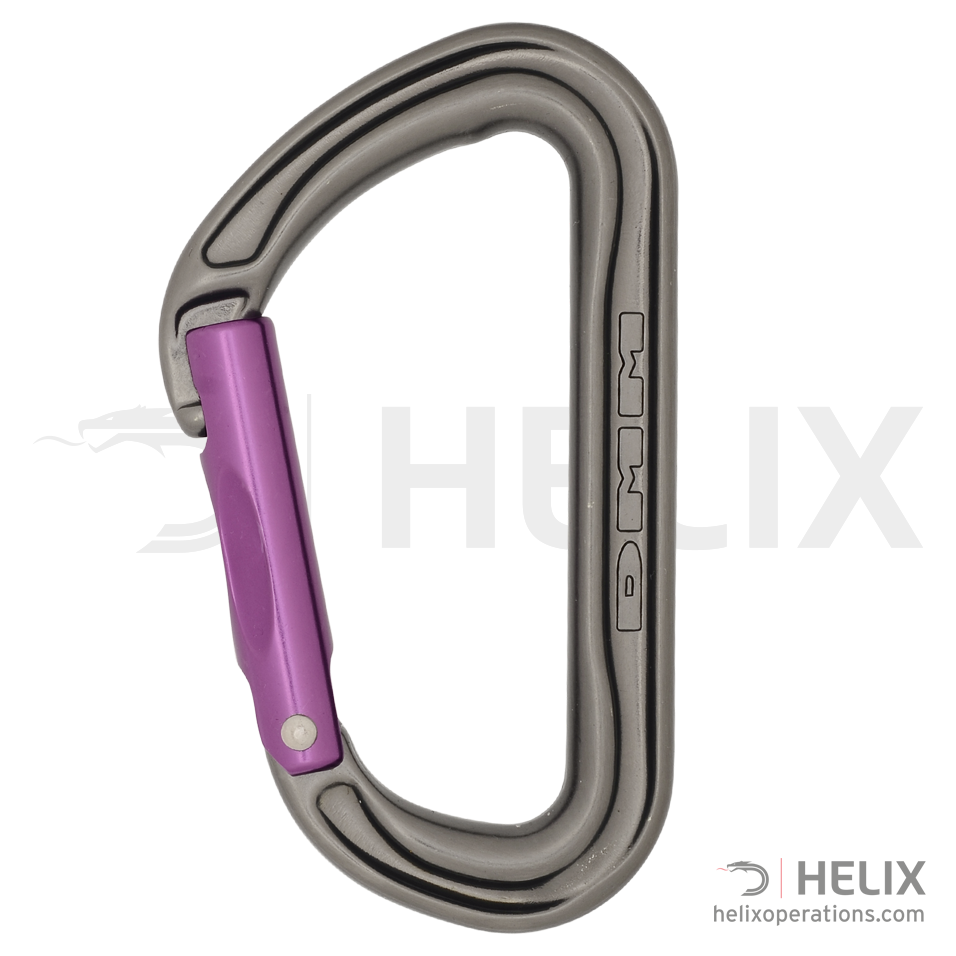

Shadow Straight Gate A301P Titanium/Purple 24kN 9kN 10kN 58 x 102mm 42g 20mm EN 12275:2013 B, UIAA121:2009 Class B
Shadow Straight Gate A301P-P6 Titanium/Purple 24kN 9kN 10kN 58 x 102mm 252g 20mm EN 12275:2013 B, UIAA121:2009 Class B

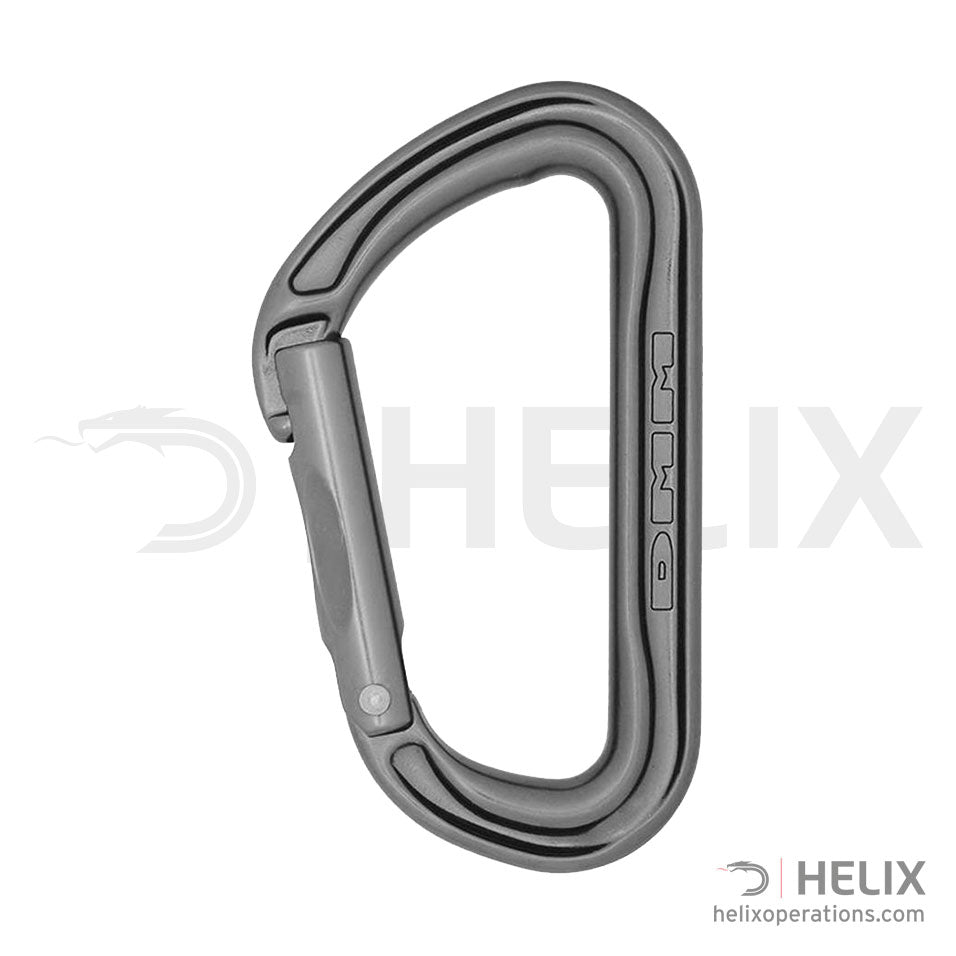

Shadow Straight Gate A301MG Matt Grey 24kN 9kN 10kN 58 x 102mm 42g 20mm EN 12275:2013 B, UIAA121:2009 Class B

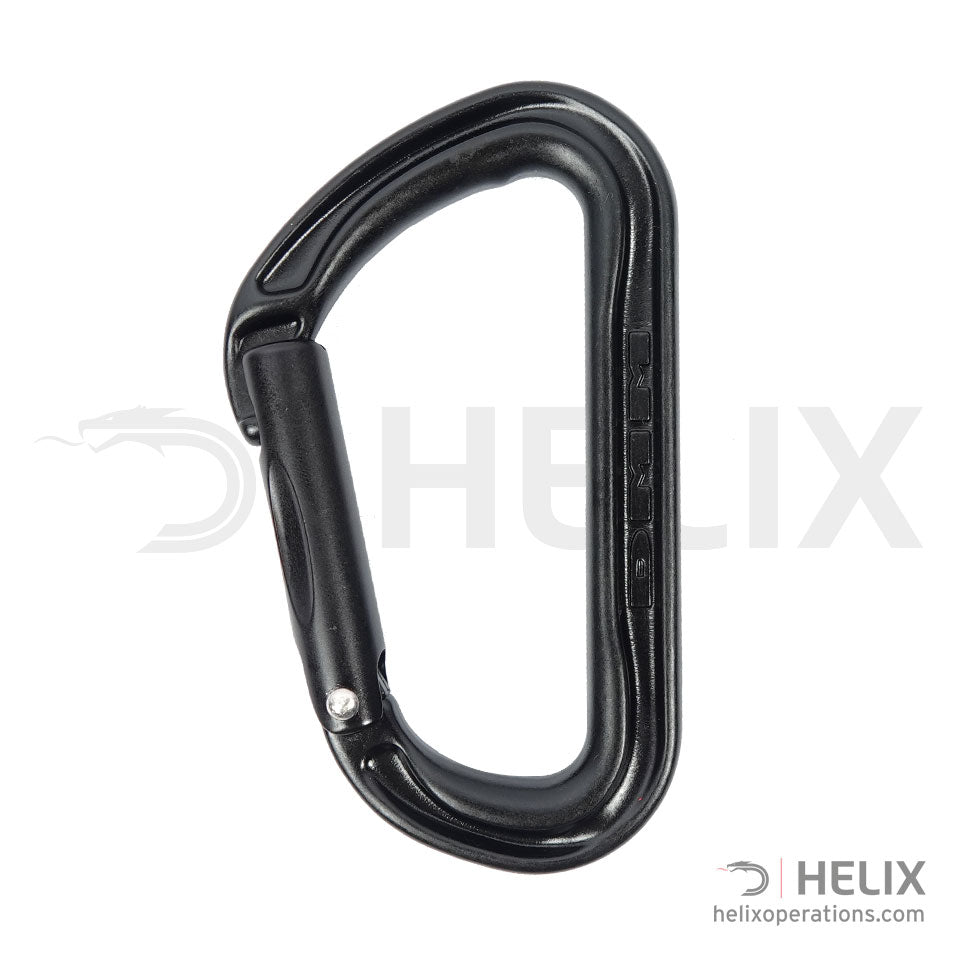

Shadow Straight Gate A301BLK Black 24kN 9kN 10kN 58 x 102mm 42g 20mm EN 12275:2013 B, UIAA121:2009 Class B
