Titan Regular Basket Stretchers

Specifically designed to perform in a technical rescue environment.

Material: Titanium
Type: regular
Product Downloads
Documents N/A
Material
Type

In detail

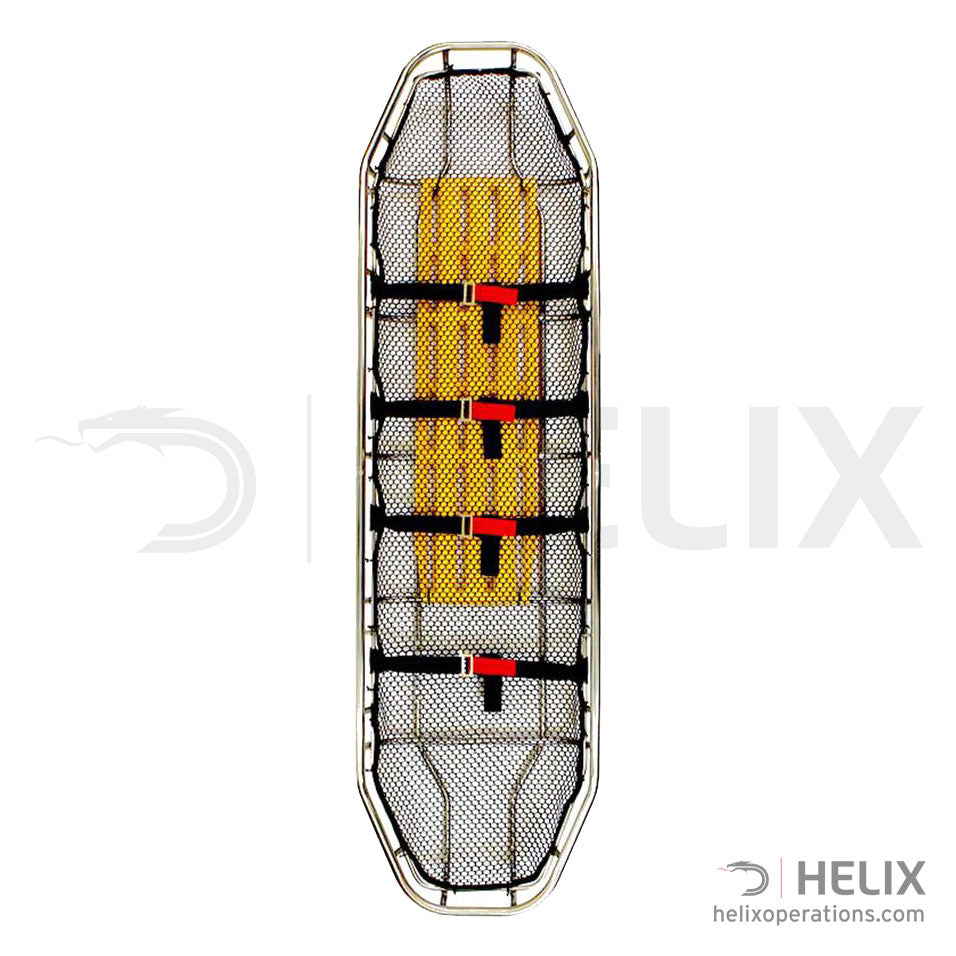

The Ferno Titan Regular Basket Stretcher Series are specifically designed to perform in a technical rescue environment. The materials used for construction mean they can withstand almost all conditions, whilst the design itself allows for a user-friendly platform from which to work.

Unique features include a 25.4mm top tube to make it easy to hold onto compared to smaller-tube frames. It also comes with four patented StratLoad attachment points that make it quick, easy and safer to clip your Litter Bridle into. These attachment points protect the carabiner from wall and rock faces. The High Density Polyethylene netting allows water and air to easily pass through the patient compartment, yet the small holes keep from snagging debris as easily. This netting material also will not rust.

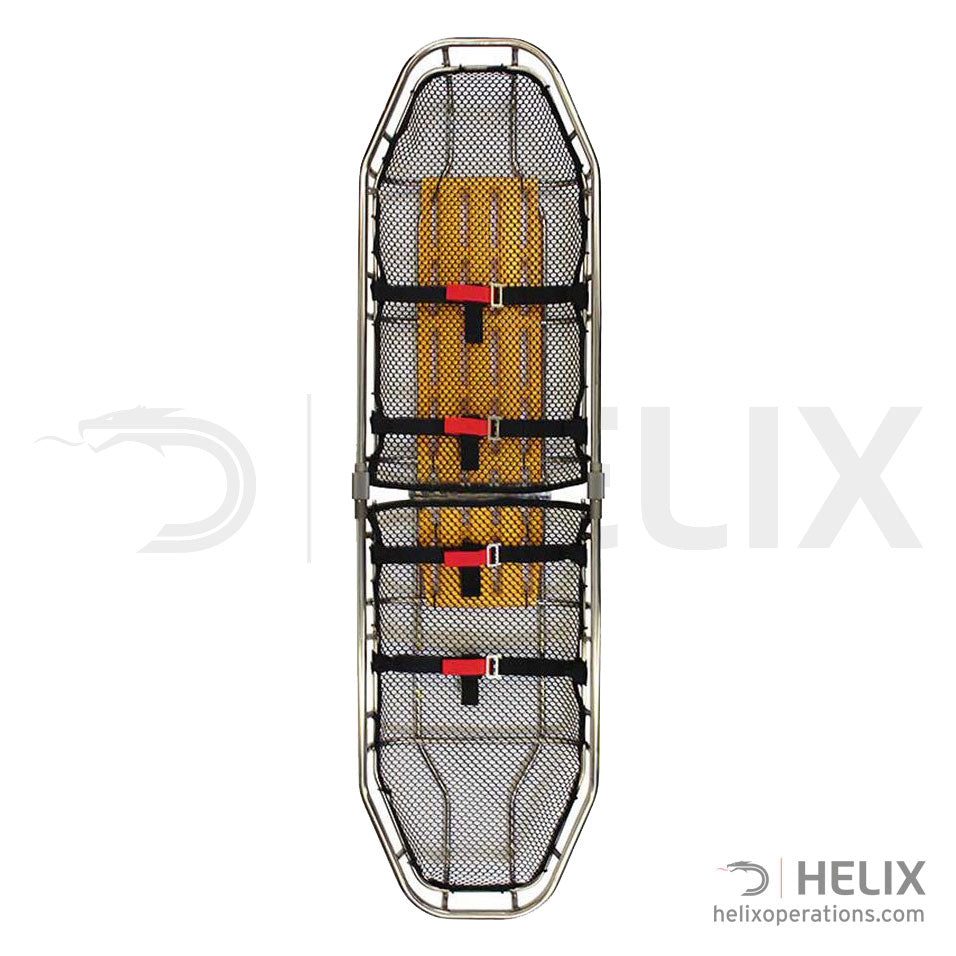

The Titan Regular Split Basket Stretcher allows for a completely solid connection between the two parts of the stretcher, without the use of pins or tubes sliding into each other. A quick and easy visual check can be carried out to ensure connections are secure throughout an operation. This connection system allows for the stretcher to be assembled or un-assembled in about 15 seconds. Every Split Apart basket includes Collet Protectors which are meant to be used on each end when the stretcher isn't in use to protect threads from denting.

The Titan Regular Basket Stretchers are available in two versions:

Stainless Steel All stainless TIG-welded frame construction.

Titanium TIG-welded frame construction. The titanium materials allow the additional feature of reducing more than half of the weight when compared to similar stainless steel models. Designed to meet a traverse standard of 1134kg whilst suspended from a four point litter bridle.



Product Name Construction Width Length Depth Depth Split Weight Load Rating
Titan Regular Basket Stretcher Stainless Steel 58cm 212cm 18cm - 13.6kg 1136kg
Titan Regular Basket Stretcher Titanium 58cm 212cm 18cm - 6.3kg 1136kg
Titan Regular Split Basket Stretcher Stainless Steel 60cm 212cm 19cm 25cm 15kg 1136kg
Titan Regular Split Basket Stretcher Titanium 60cm 212cm 19cm 25cm 7.5kg 1136kg
