Xtract SR Tactical Stretcher Afloat

A compact casualty flotation product for use with the Xtract™SR Tactical Stretcher.

Product Downloads
Documents N/A

In detail

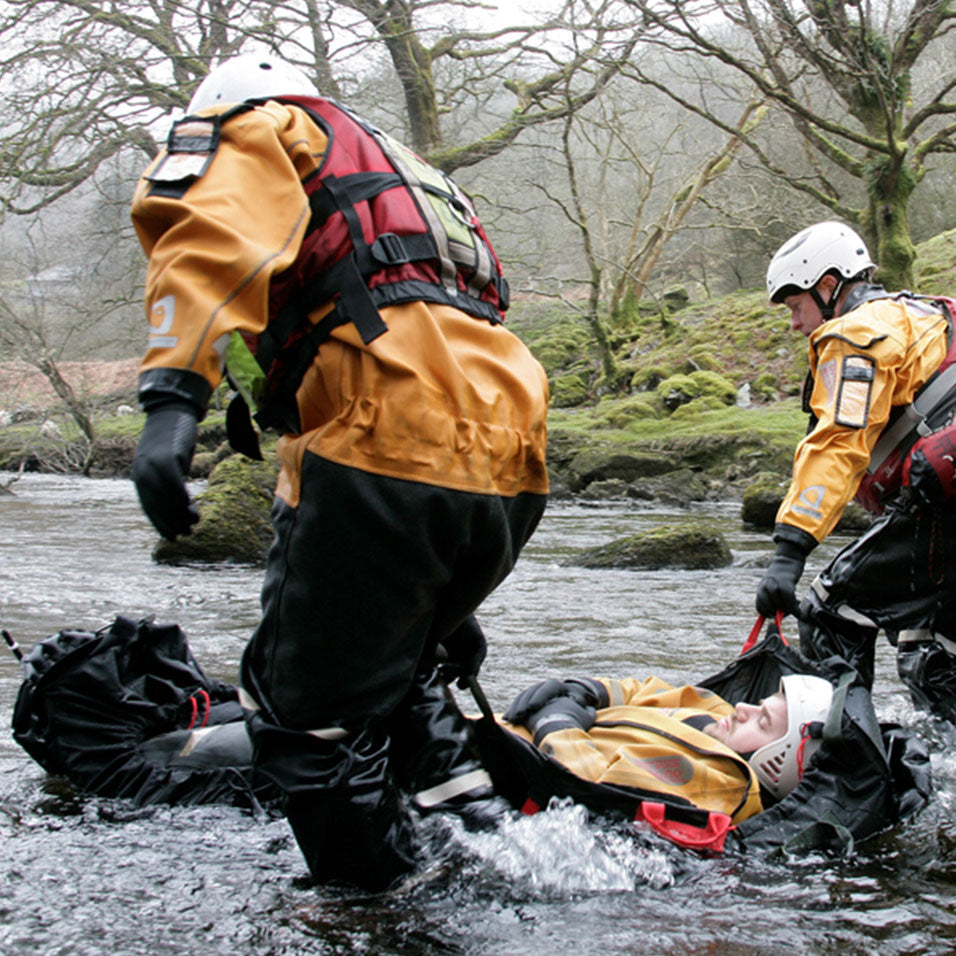

Whether crossing a jungle river, evacuating a flooded house, crossing a canal in Iraq or negotiating melted water in the Arctic, water obstacles often pose a significant risk to the safety of both casualties and rescuers. Xtract™SR Afloat gives rescue teams a small, lightweight, viable solution.

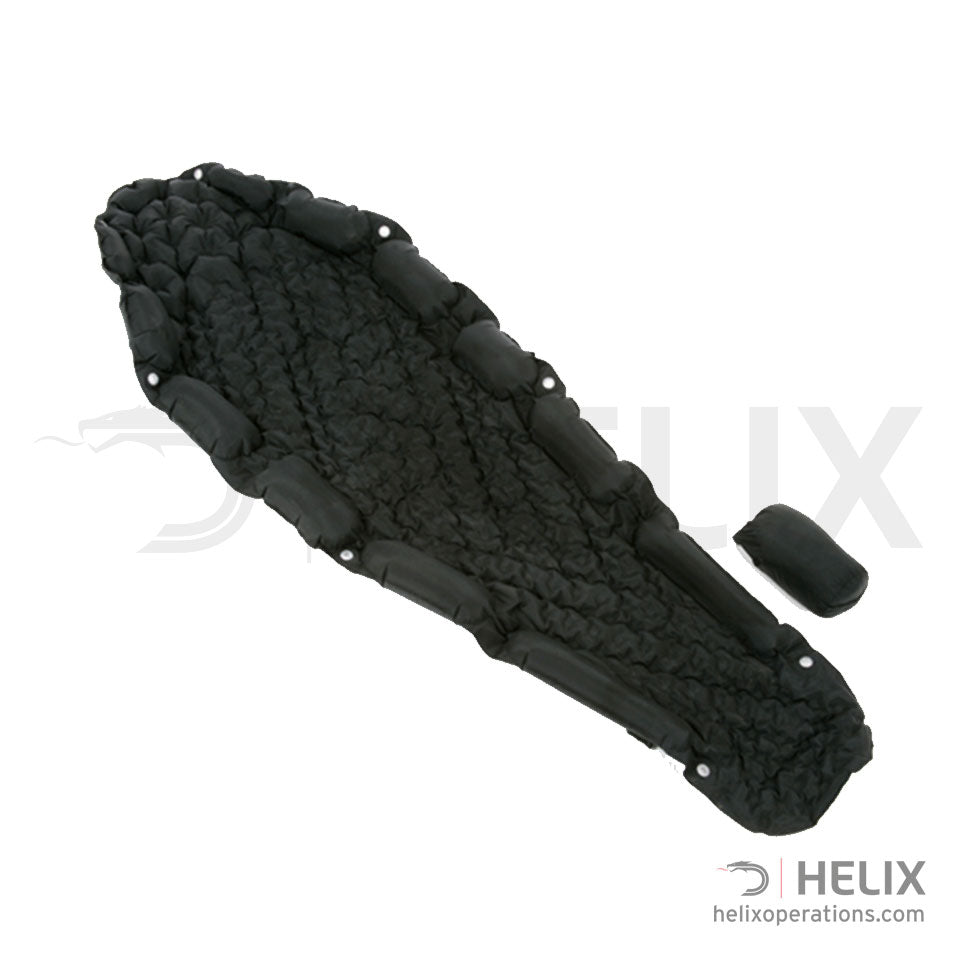

The Xtract™SR Afloat is a compact casualty flotation product for rescuers who must cross a water obstacle in challenging environments. Xtract™SR Afloat can also be used as an insulating mattress to combat hypothermia and improve patient comfort.

The three buoyancy chambers can be inflated in any order.

• Unscrew the top of one the inflation valves.

• Inflate the associated buoyancy chamber by blowing into the one-way valve until the buoyancy chamber is fully inflated.

• Refit the top of the inflation valve. Ensure the top of the inflation valve is screwed fully home.

• Repeat the previous three steps for the remaining two inflation valves.

Note: Check that there are no leaks from any of the three buoyancy chambers.

The casualty MUST be in an Xtract™SR Stretcher in order to the use the Xtract™SR Afloat. There must be at least one person at the heat of the Xtract™SR Afloat at all times when a patient is placed in the device whether on dry ground or in the water.

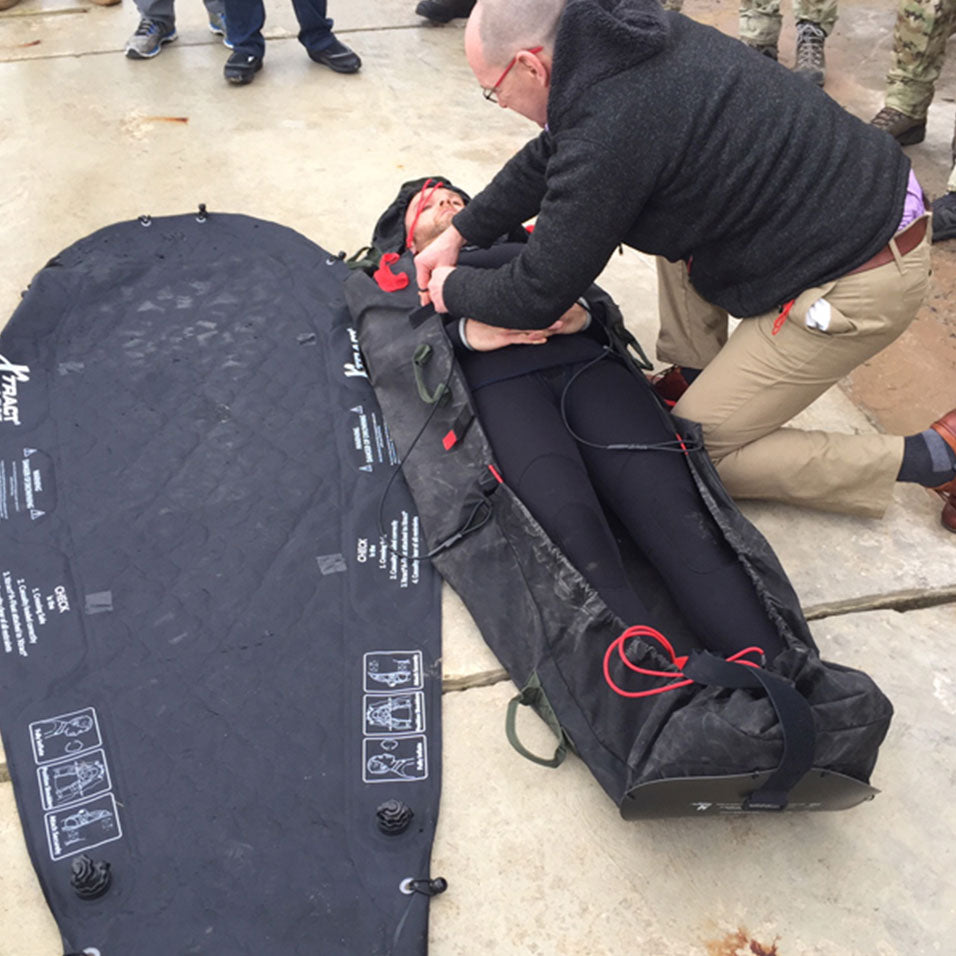

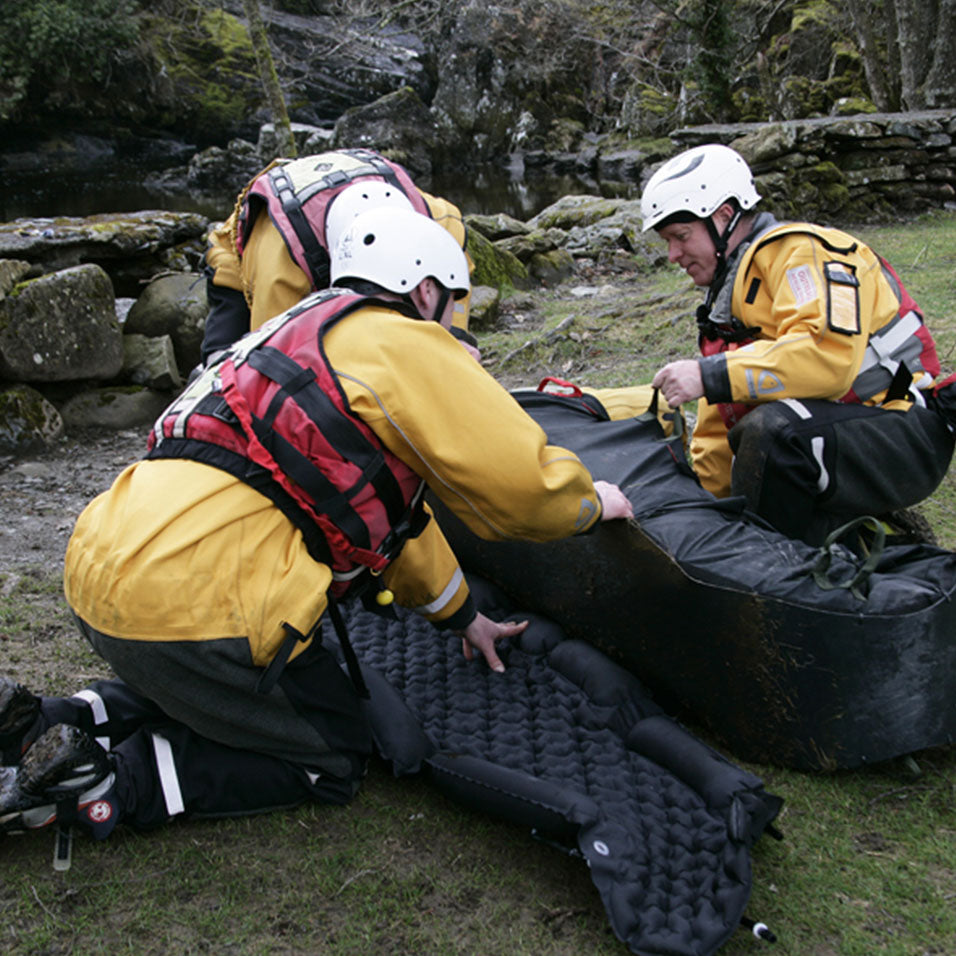

1) Place the casualty held within an Xtract™SR Strether onto the Xtract™SR AFloat. Make sure the orientation is correct with the casualtys head at the end of the Xtract™SR Afloat.

2) Release all the straps that secure the casualty in the Xtract™SR Stretcher.

3) Secure the Xtract™SR Stretcher to the Xtract™SR Afloat using the 11 toggles.



Product Name Colour Dimensions (Deflated Dimensions (Packed)
XTRACT SR Afloat Black 2510 x 1010mm 320 x 160 x 140mm
